Product Description

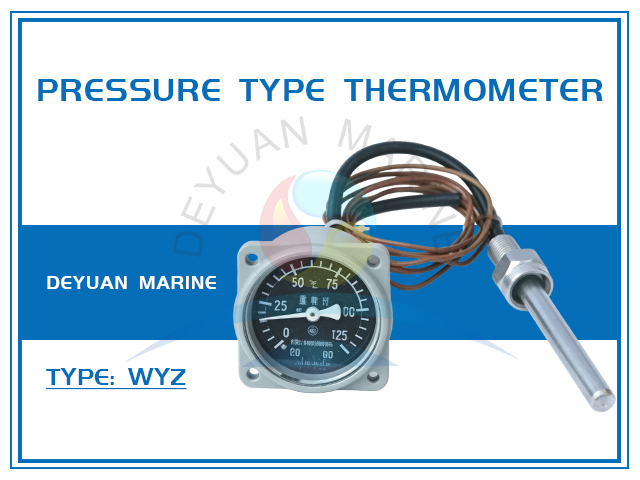

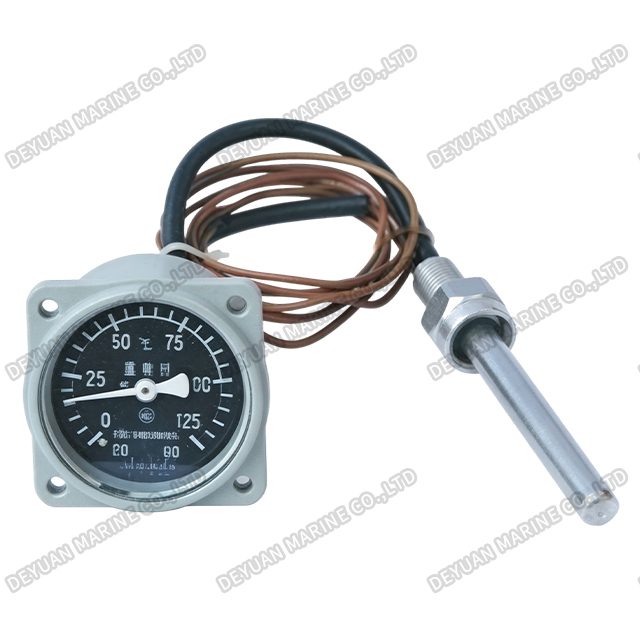

WYZ Pressure Type Thermometer
Product Introduction:
WYZ Pressure Type Thermometer is a high-precision, remote-reading mechanical temperature measuring instrument specifically designed for marine applications. Operating on the vapor pressure or liquid expansion principle within a sealed system, it consists of a temperature-sensing bulb (thermal bulb), a flexible capillary tube, and a rugged dial indicator. This entirely mechanical device requires no external power, making it highly reliable for long-distance temperature monitoring in engine rooms, cargo holds, and auxiliary systems onboard ships.
Main Technical Specification:

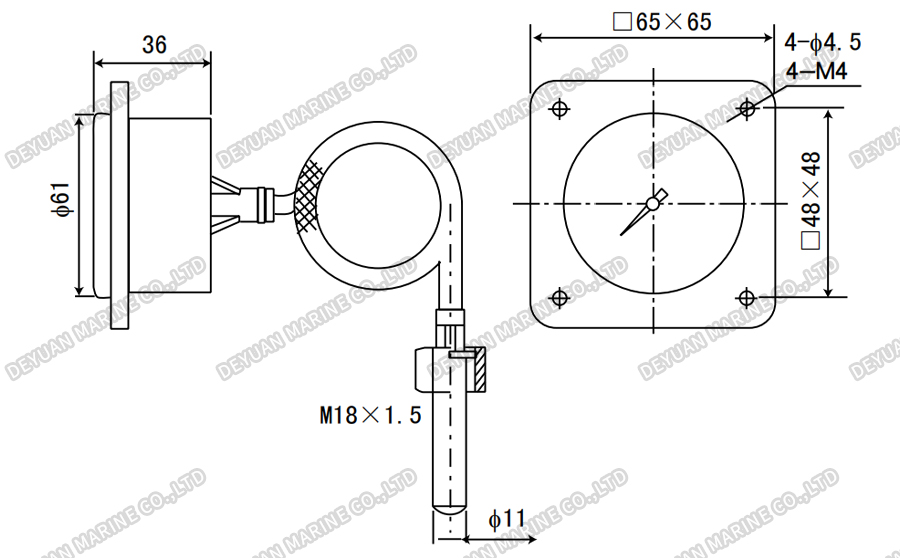

| Measuring range(C°) | Accuracy | Bulb dimension(mm) | Dial diameter | Connection | Casing material | |
| Dia. | Length | |||||
| 0~125 | 4 Grade | 11 | 102 120 150 | Φ60 | M18X1.5(Inside) M22X1.5(Exterior) | Bakelite Stainless steel Aluminum alloy |
