Product Description

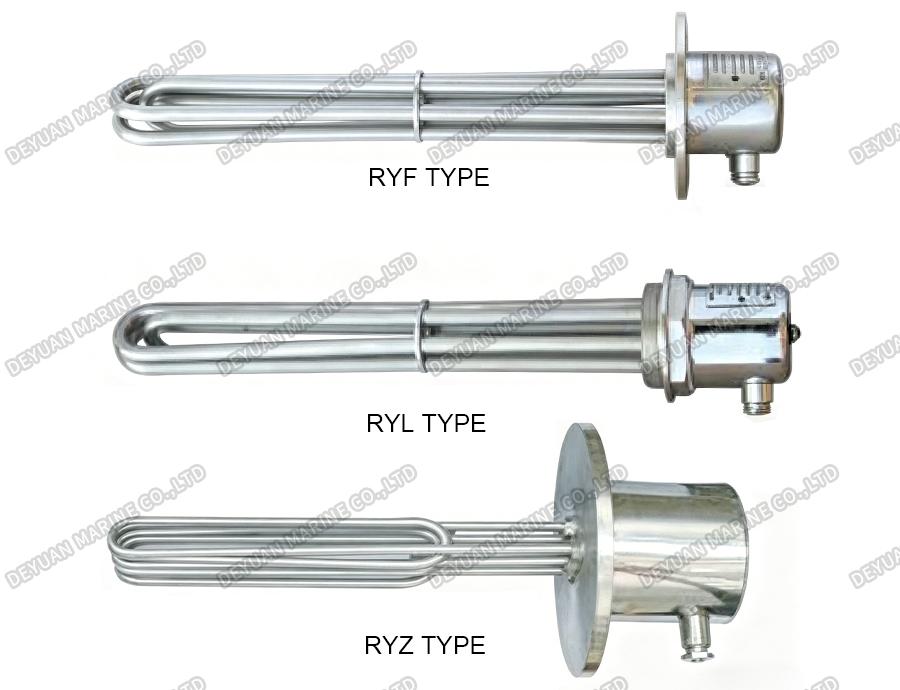

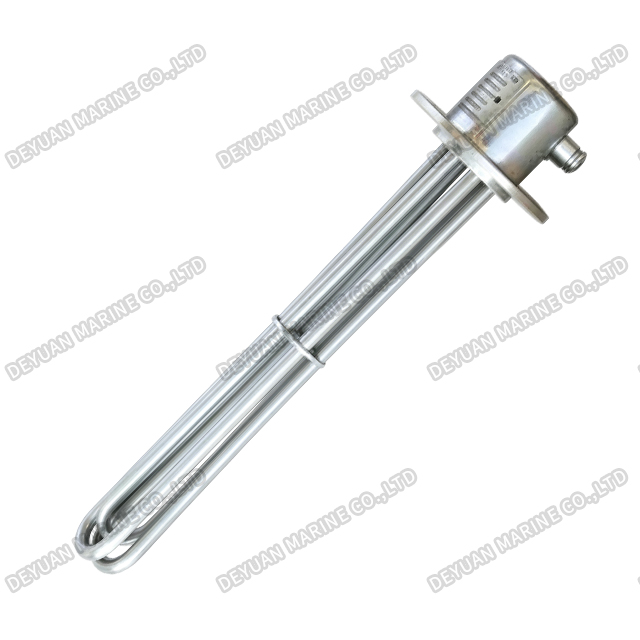

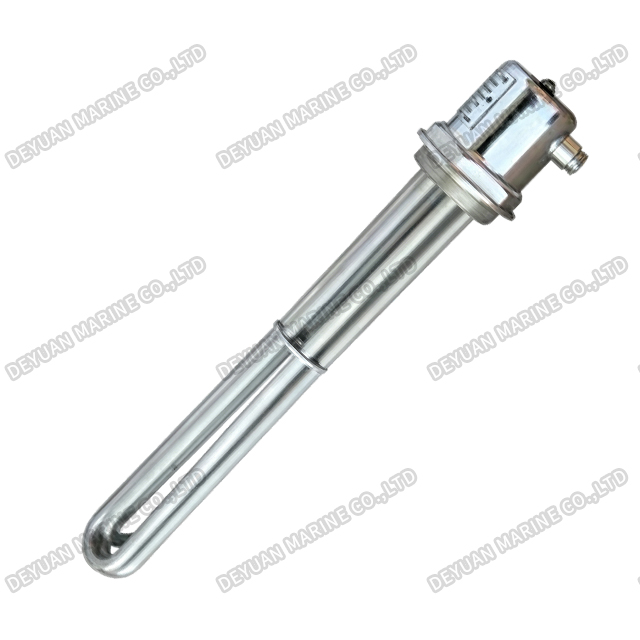

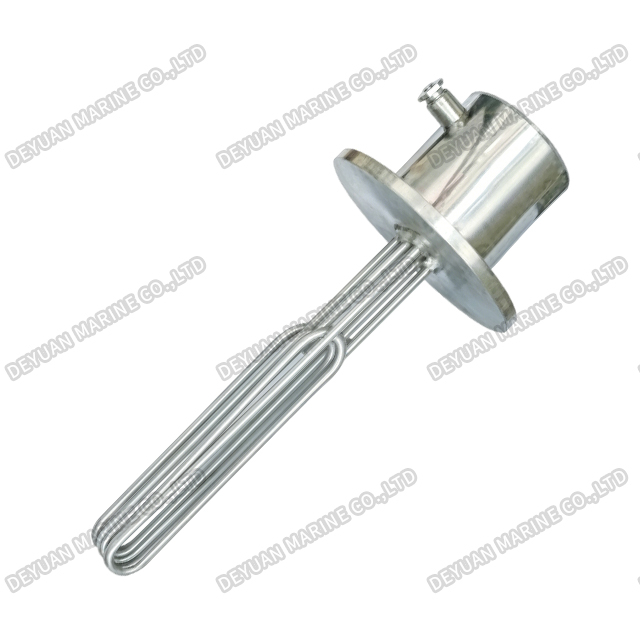

RY Type Lubricant Oil Electric Heater
Product Introduction:
The Marine Lubricant Oil Electric Heater is a specialized heating device designed to pre-heat and maintain the temperature of lubricating oil in marine engines, auxiliary generators, gearboxes, and other critical machinery. By reducing oil viscosity during cold starts, it ensures proper lubrication, reduces mechanical wear, and enhances operational reliability in all sea conditions.
Main Technical Specification:

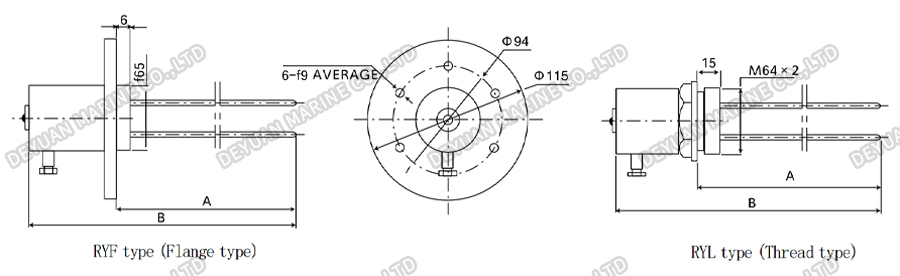

| Model | A | B | Power source | Rating power consumption (W) | Wiring type | Casing material | |||
| (mm) | ( mm) | 24V | 110V | 220V | 380V | ||||
| RYF RYL | 220 | 296 | AC DC | 350 | Parallel | Stainless steel | |||
| 600 | |||||||||
| 600 | In series | ||||||||
| 300 | 376 | 1000 | Parallel | ||||||
| 1000 | In series | ||||||||
| 390 | 466 | 1500 | Parallel | ||||||
| 1500 | In series | ||||||||
| 490 | 566 | Parallel | |||||||
| 2000 | In series | ||||||||
| 590 | 666 | Parallel | |||||||
| 2500 | In series | ||||||||
| 690 | 766 | Parallel | |||||||
| 3000 | In series | ||||||||
| 333 | 410 | AC | 4000 | 2000 | |||||
| 483 | 560 | 4500 | 3000 | ||||||
| 623 | 700 | 5000 | 4000 | ||||||
| 773 | 850 | 5000 | |||||||
| RYZ | We can design and manufacture 12~60KW heater for users. | ||||||||
