Single Point Mooring Pipes B Type JIS F 2030-1978 With High Quality

Type: Single Point Mooring Pipes
Brand: Deyuan Marine
Material: Cast steel, carbon iron, stainless steel
Standard: JIS F 2030-1978
Surface: Primed, galvanised or grey painted finish.
Service life: 12-15 years
Certificate: BV, GL, ABS, DNV, CCS, etc.
Delivery time: Upon your order quantity

Product Description

Single Point Mooring Pipes B Type JIS F 2030-1978 With High Quality


Marine mooring chocks are part of standard mooring setup, between ships bitts and the mooring bollards. Single point mooring pipes(A/B) are for temporary mooring and are used specially for the guidance of rope mooring lines on board a large vessel. JIS F 2030-1978 Mooring Pipes fittings are found at the vessel’s bow bulwarks, below the gunwale, to avoid wear and tear of the mooring line, Single Point Mooring Pipes B Type are welded at vessel bow,
the Mooring Pipes are paint primed or galvanized.


We offer a wide of ship mooring chocks, they are manufactured as per the standard of JIS F 2017-82, JIS F2005-75, JIS F 2007-76, DIN 81906, DIN81915, NS2589 etc.
All these ship mooring chocks are approved by ABS, DNV, LR, BV, GL etc, If you are looking for any of marine chocks or other deck fittings, pls feel free to contact us for further discussion.

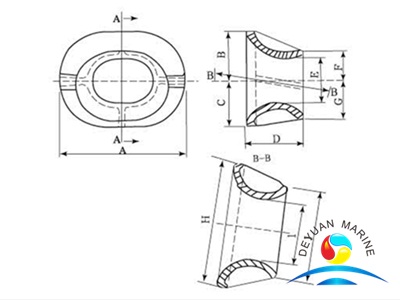

Single Point Mooring Pipes B Type JIS F 2030-1978

Nominal DIA
(mm)
A B C D E H I Weight
(kg)
  400    800    320    300    350    300    800    400      190
 500    960    370    350    400    400    960    500      310
    600   1120   420   400   450   450   1120   600      460
    700   1280   470   450   500   500  1280  700      660
    800   1440   520   500   550   600   1440   800      830
