Product Description

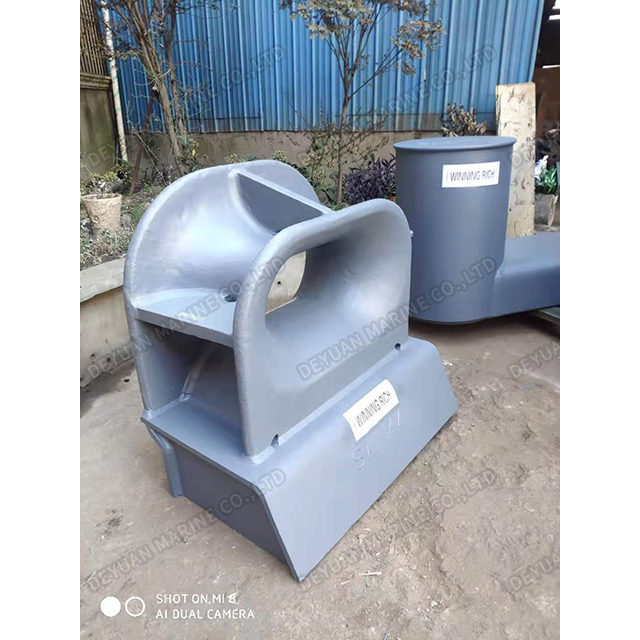

ISO13729 Deck Mounting Closed Chock Type A
Introduction of ISO13729 Deck Mounting Closed Chock
ISO13729 deck mounting Closed Chock is a type of ship's mooring and towing fitting installed on the shipside to lead the mooring and towing rope from the ship's inboard to outboard.
ISO13729 deck mounting Closed Chocks are normally adopted for ships which use wire ropes. And
ISO13729 closed chock is to be classified by its installation site as follows
Type A – ISO13729 Deck-mounted closed chock
Type B – ISO13729 Bulwark-mounted closed chock
Both types of closed chocks are made from steel casting material having a yield point of not less than 235 N/mm2 or equivalent.
All surfaces of our 13729 closed chocks including welding are free from any visible flaws or imperfections,
All surfaces in contact with the ropes are free from surface roughness or irregularities likely to cause
damage to the ropes by abrasion.
DEYUAN MARINE provides good workmanship of ISO Standard Mooring Chocks in various size, pls feel free to contact us at any time if you are interested.
ISO13729 Deck Mounting Closed Chock Type A
Nominal size | Wire rope Dia. | SWL | Weight | Dimensions | ||||||
L x H x D(mm) | (recommended) | (kn) | (t) | (kg) | l1 | l2 | l4 | H1 | H2 | H3 |
250x200x214 | 18 | 226 | 23 | 73 | 488 | 453 | 265 | 427 | 368 | 108 |
300x250x286 | 24 | 422 | 43 | 142 | 614 | 565 | 330 | 551 | 481 | 144 |
350x250x333 | 28 | 549 | 56 | 222 | 716 | 660 | 403 | 601 | 525 | 168 |
400x250x381 | 32 | 687 | 70 | 310 | 820 | 754 | 475 | 652 | 553 | 192 |
450x250x381 | 32 | 706 | 72 | 322 | 870 | 804 | 524 | 652 | 553 | 192 |
500x250x381 | 32 | 765 | 78 | 337 | 920 | 854 | 574 | 652 | 553 | 192 |
400x250x428 | 36 | 883 | 90 | 434 | 870 | 796 | 500 | 701 | 609 | 216 |
450x250x428 | 36 | 912 | 93 | 452 | 920 | 846 | 550 | 701 | 609 | 216 |
500x250x428 | 36 | 932 | 95 | 472 | 970 | 896 | 600 | 701 | 609 | 216 |
500x400x428 | 36 | 893 | 91 | 528 | 970 | 896 | 600 | 851 | 759 | 216 |
500x250x525A | 44 | 1148 | 117 | 657 | 1068 | 1000 | 652 | 798 | 675 | 264 |
500x400x525A | 44 | 1158 | 118 | 724 | 1068 | 1000 | 652 | 948 | 825 | 264 |
500x250x525B | 44 | 1413 | 144 | 753 | 1074 | 1000 | 652 | 801 | 680 | 264 |
500x400x525B | 44 | 1383 | 141 | 825 | 1074 | 1000 | 652 | 951 | 830 | 264 |
