Product Description

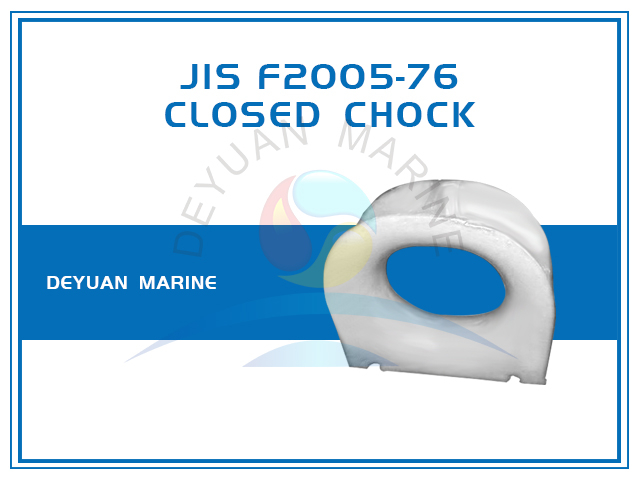

JIS F2005-76 Closed Chock Deck Mounting Cast Steel
Introduction of JIS F2005-76 Closed Chock
JIS F2005-76 Closed Chock is designed and fabricated according to standard of Janpanese Standard Association, and
used for holding down line or wire by running it through the center of the chock.
JIS F2005-76 Closed Chock, sometime also call JIS F2005-76 Panama Chock or Panama Closed Chocks, they are made from cast steel, all surfaces of our JIS F2005-76 closed chocks including welding are free from any visible flaws or imperfections,
All surfaces in contact with the ropes are free from surface roughness or irregularities likely to cause
damage to the ropes by abrasion.
DEYUAN MARINE provides a complete range of JIS standard panama chocks to suit for different jobs
JIS F2005-76 Closed Chock Deck mounting
JIS F 2006 Open Chock Deck mounting
JIS F2007 Mooring Pipe Bulwark mounting
JIS F2017 Panama Chock Type AC Deck mounting
JIS F2017 Panama Chock Type BC Bulwark mounting
JIS F2030 Single Point Mooring Pipe Bulwark mounting
JIS F2005-76 Closed Chock Deck Mounting Cast Steel
Type | Weight(kg) | A | B | C | D | E | Dia. of Rope | |
Wire | Hemp | |||||||
100 | 3.7 | 100 | 170 | 76 | 141 | 60 | 14 | 24 |
150 | 10.5 | 150 | 250 | 110 | 205 | 90 | 16 | 30 |
200 | 24 | 200 | 340 | 150 | 208 | 120 | 18 | 40 |
250 | 48 | 250 | 434 | 200 | 372 | 160 | 20 | 50 |
300 | 83 | 300 | 528 | 250 | 464 | 200 | 22 | 60 |
350 | 103 | 350 | 600 | 250 | 485 | 220 | 24 | 70 |
400 | 136 | 400 | 672 | 250 | 506 | 240 | 26 | 80 |
450 | 184 | 450 | 746 | 250 | 528 | 260 | 30 | 85 |
500 | 232 | 500 | 820 | 250 | 550 | 280 | 36 | 90 |
