Cast Iron Or Steel T-Head Bollard for Sale

Place of Origin: China
Brand: DEYUAN MARINE
Type: Tee Bollards
Material: cast iron or cast steel
SWL: 10T~300T
Surface: with anti-corrosion protective finish
Design: Strong and durable design, low maintenance

Product Description

Cast Iron Or Steel T-Head Bollard for Sale

T-head bitt bollard for sale product description

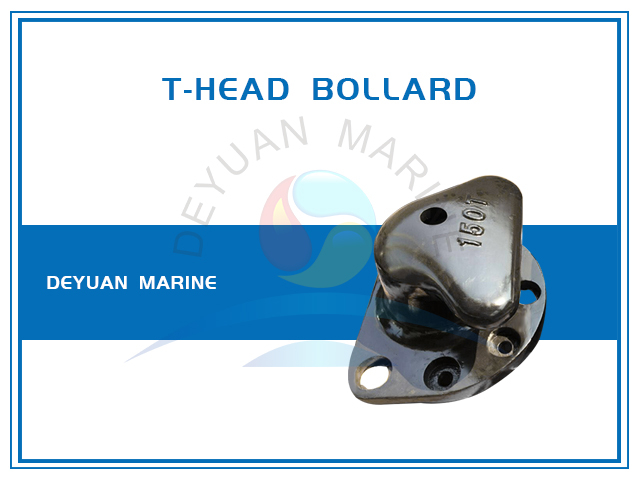

Introduction of  T-Head Bollard

T-Head Bollard, also know as Tee Bollards or T-head bitt bollards, is a kind of mooring bollards designed for

fulfilling mooring requirements to allow safe securing of vessels next to jetties, wharves, berths and dolphins in ports and harbours.

T-Head Bollards had the features of small and very large load capacity sizes, can be made from ductile cast iron or cast steel material and cast-in or bolt-in mounting for option.

Standard size of our T-Head Bollard  ranges from smallest capacity of 20t to 200t, however many custom design

to replace the existing bollards on like by like basis with same bolt pattern also available.

In addtion to Tee Bollards, DEYUAN MARINE also supplies other mooring bollards like twin horn bollard, Kidney bollards, cleat bollards, double bitt bollards, single bitt bollards, Pillar Bollards etc.

Tee Bollards Made in China technical parameters

Cast Iron Or Steel T-Head Bollard


Capacity Dimension(mm) Bolts(mm)
(Ton) A B C D E F G H Q'ty L
20 330 380 280 50 350 175 440 335 5 500
30 470 540 380 64 458 250 597 490 5 500
50 477 540 400 70 550 260 640 500 5 500
80 570 650 478 80 600 305 800 640 6 800
100 575 650 453 90 600 350 800 650 7 800
150 654 750 500 90 700 400 900 700 7 1000
200 775 900 600 100 800 460 1100 850 7 1000
300 840 930 730 120 820 470 1106 914 8 1400


T-Head Bollard for sale
