ISO13713 Bulwark Mounted Mooring Chocks Type B

Place of Origin: China
Brand: DEYUAN MARINE
Standard: ISO13713
Model: Type B, Bulwark mounted
Material: Cast Steel
SWL: 36T~140T
Certificate:IACS certificate available
Surface: with anti-corrosion protective finish

Product Description

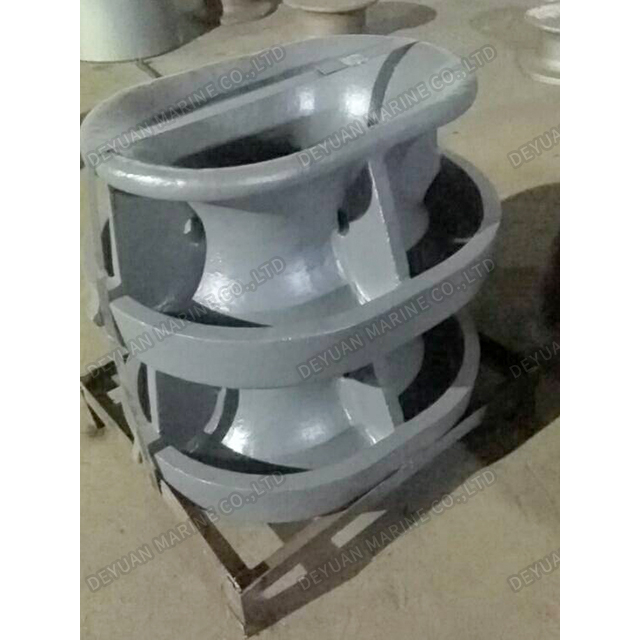

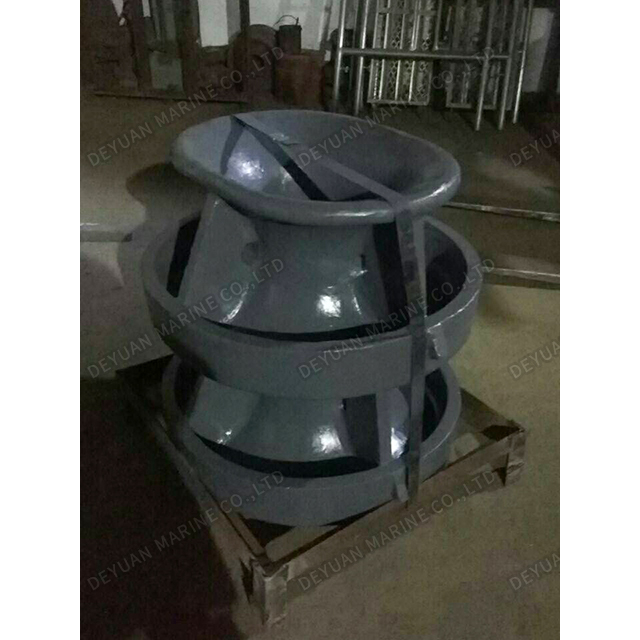

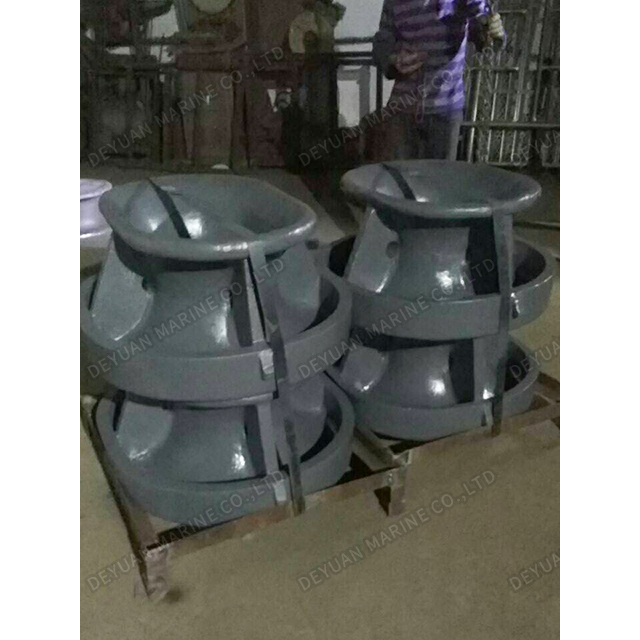

ISO13713 Bulwark Mounted  Mooring Chocks Type B

ISO13713 Mooring Chocks Bulwark mounted product description

Intruction of  ISO13713 Bulwark Mounted Mooring Chocks

Mooring chock is a kind of ship's mooring and towing fitting and mainly install on shipside to lead the

mooring and towing rope from the ship's inboard to outboard.

Bulwark mounted mooring chock, as the name indicates,is installed on the bulwark of the vessel.

Our bulwark mounted mooring chock was made of casting steel having a yield point of not less than 235 N/mm2 or equivalent.

ISO Standard Chocks the carbon contents of the steel casting are not to be more than 0,23 % considering weldability.

DEYUAN MARINE offer a complete range of bulwark mounted mooring chocks to suit different jobs,

  • ISO13713 bulwark mounted mooring chocks type B

  • ISO13729 bulwark mounted closed chock

  • JIS F2007-76 bulwark mounted mooring pipe

  • JIS F2017 bulwark mounted Panama chock

  • JIS F2030 bulwark mounted single point mooring pipe

  • DIN81915  bulwark mounted chock type A

  • EU Type bulwark mounted towing chock


ISO13713 Mooring Chocks Type B technical parameter

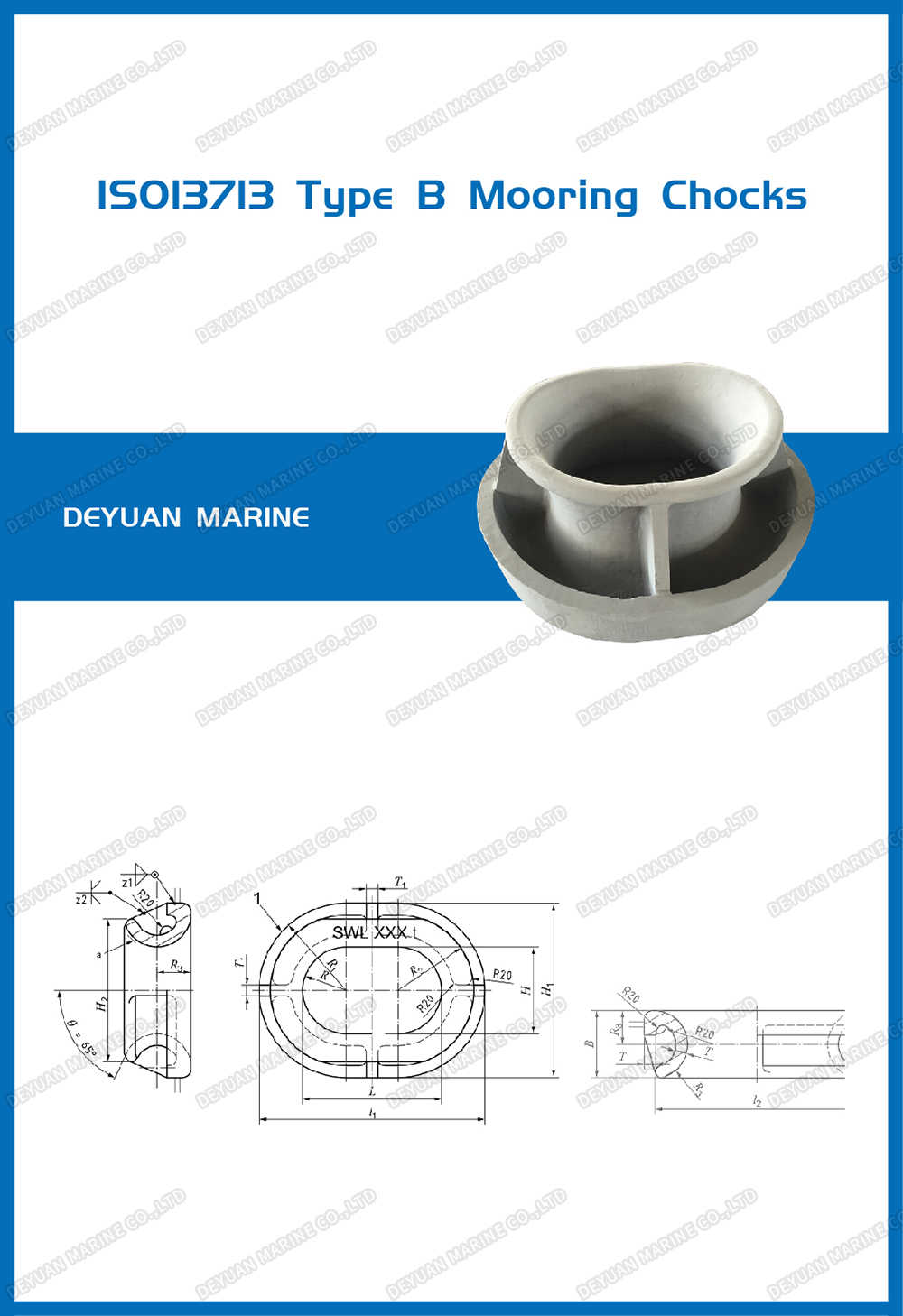

ISO13713 Bulwark Mounted Mooring Chock

Nominal size SWL Weight Dimension(mm)
(mm) (kn) (t) (kg) l1 l2 B H1 H2
250 X 200 353 36 48 450 398 154 408 327
300 X 250 491 50 83 516 460 168 466 387
350 X 250 589 60 100 582 520 177 482 395
400 X 250 736 75 145 652 588 193 502 412
450 X 250A 981 100 215 734 662 213 534 433
500 X 250A 1128 115 235 812 730 237 562 447
500B X 250B 1373 140 266 828 750 253 578 466

ISO13713 Mooring Chocks
