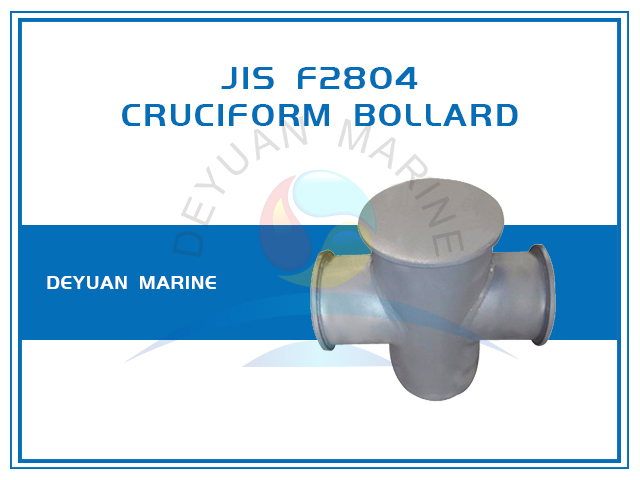

JIS F2804 Cruciform Bollard for Mooring

Place of Origin: China
Standard: JIS F2804
Type: Cruciform Bollard
Material: Carbon Steel
Size: 150mm~350mm
Certificate:IACS certificate available
Surface: with anti-corrosion protective finish

Product Description

JIS F2804 Cruciform Bollard for Mooring

price for Cross bitts product description

Introduction of JIS F2804 Cruciform Bollard

Cruciform Bollard, sometimes also call ship's cross bitts, is also a type of ship's mooring and towing fittings used on board.

As the name indicates, JIS F2804 Cruciform Bollard is designed and manufactured according to Japanese Industrial Standard and was used for tugging,mooring,cargo handling,boat handling etc

As per JIS F2804 standard, the cross bitts shall be free from detrimental defects and be welded soundly with the least strain as far as possible on the external apperanace.

DEYUAN MARINE'S factory strictly follow the JISF2804 standard while we made a JIS F2804 Cruciform Bollard, and all our JIS F2804 Cruciform Bollard can be certified by any IACS class societies like CCS, ABS, BV, DNV, LR, NK etc.

Any inquires for JIS Standard Cruciform Bollard, pls donot hesitate to contact DEYUAN MARINE at any time, we are always ready  at your service.

Cross bitts made in China technical parameters

JIS F2804 Cruciform Bollard

Nominal Dia. Calculated Weight Wire Rope Dia. Dimensions(mm)
(mm) (kg) (mm) H h B D D1 D2 D3
150 33 16 480 280 460 165 114 206 158
200 60 22 560 320 520 216 165 256 206
250 102 28 640 360 610 267 216 308 256
300 154 34 680 380 660 318 267 360 308
350 186 38 720 420 720 355 267 400 312

Cruciform Bollard made in China
