Product Description

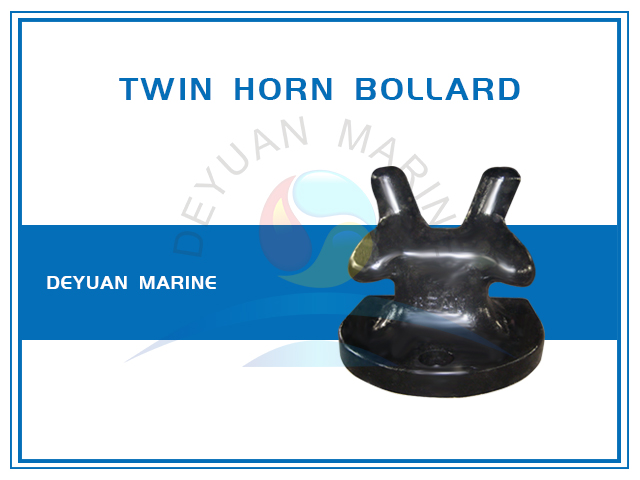

Ductile Cast Iron Twin Horn Bollard for Mooring
Introduction of Twin Horn Bollard
Twin Horn Bollard, or popularly known as Staghorn Bollard, are particularly suitable for applications where high tidal variation is present or a multi-purpose jetty which is used by vessels with very high free board such as Passenger vessel or RoRo and very low free board vessels such as barges.
DEYUAN MARINE'S Twin Horn Bollard or Staghorn Bollard is made from durable ductile cast iron or cast steel,
various kinds of staghorn bollards, both standard and custom made to fit the special needs of securing safe mooring world wide.
And our Twin Horn Bollard or Staghorn Bollard can be delivered with third party certificate like ABS certificate if required.
In addtion to Staghorn Bollard, DEYUAN MARINE also supplies other mooring bollards like Tee bollard, Kidney bollards, cleat bollards, double bitt bollards, single bitt bollards, Pillar Bollards etc. Looking forward to your specific inquiries.
Twin Horn Bollard for Mooring
Capacity | Dimension(mm) | Bolts(mm) | |||||||||
(Ton) | A | C | D | E | F | G | H | J | K | Q'ty | L |
20 | 203 | 140 | 476 | 70 | 483 | 406 | 165 | 407 | 165 | 5 | 500 |
30 | 254 | 152 | 533 | 76 | 610 | 572 | 267 | 508 | 184 | 6 | 500 |
40 | 305 | 152 | 617 | 127 | 610 | 610 | 305 | 610 | 210 | 6 | 500 |
50 | 317 | 178 | 597 | 83 | 762 | 660 | 279 | 559 | 229 | 7 | 500 |
75 | 355 | 191 | 743 | 95 | 851 | 724 | 305 | 761 | 241 | 7 | 800 |
100 | 356 | 202 | 774 | 114 | 965 | 838 | 356 | 762 | 242 | 7 | 800 |
150 | 432 | 254 | 851 | 114 | 1016 | 914 | 381 | 838 | 278 | 7 | 1000 |
200 | 432 | 254 | 857 | 120 | 1016 | 914 | 381 | 838 | 278 | 7 | 1000 |
