Product Description
Double Bollards DIN82607 for Boats
Introduction of Double Bollards DIN82607
Double bollards DIN82607 is a direct improvisation of Single Bitt type bollard offering comfort of multiple mooring line secured and are made from welded steel and manufactured according to the DIN 82607 standard.
DIN 82607 double bollard is mainly used to installed on board to belay the mooring and towing rope, a stopper lug has been designed for application of a rope stopper, and an eye plate would be provided for tying the stopping-off rope or chain.
Full range of Double bollards can be provided along with different class societies like CCS, ABS, BV, DNV, LR, NK etc other IACS menbers.

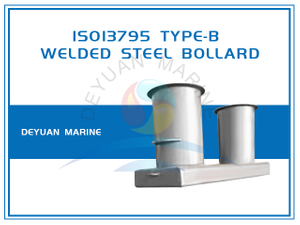

ISO13795 Bollards
DIN82607 Double Bitts
NS2584 Bollards
GB/T554-96 mooring Bollards
Should any of the Bollards or double bitts be interested of you, pls feel free to contact us DEYUAN MARINE sales team for further discussion.
Double Bollards DIN82607
| Size | Rated towing pill(kN) | TUBE D1 | B | D2 | E | H1 | H2 | S2 | A | Weight (kg) |
| D1 | 10 | 139.9x6.3 | 130 | 160 | 430 | 370 | 105 | 5 | 4 | 20.6 |
| D2 | 20 | 219.1x8 | 180 | 242 | 570 | 475 | 115 | 6 | 4 | 52.3 |
| D3 | 32 | 273.0x10 | 250 | 300 | 700 | 570 | 135 | 8 | 5 | 99.5 |
| D5 | 50 | 323.9x10 | 300 | 355 | 880 | 670 | 150 | 8 | 6 | 145.4 |
| D8 | 80 | 355.6x14.2 | 330 | 390 | 1050 | 780 | 175 | 10 | 8 | 259.4 |
| D12 | 120 | 457.0x16 | 420 | 490 | 1200 | 860 | 195 | 16 | 12 | 437.0 |
| D20 | 200 | 508.0x17.5 | 470 | 545 | 1350 | 970 | 230 | 16 | . | 571.0 |
| D32 | 320 | 559.0x20.0 | 530 | 600 | 1400 | 1000 | 270 | 16 | 830.0 |
