Product Description
Welded Steel JIS F 2001 Double Bitt Bollard With Base for Sale

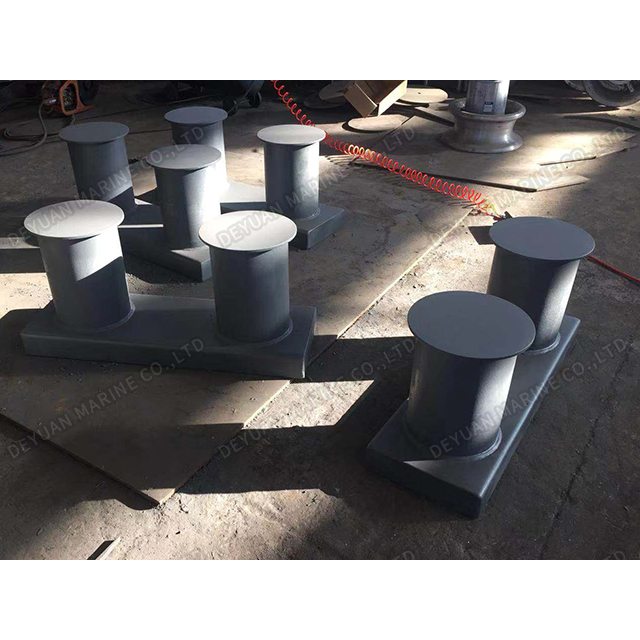

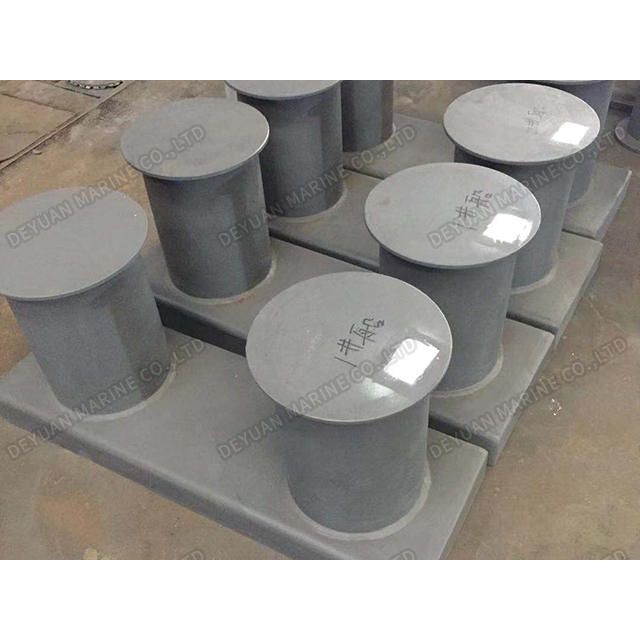

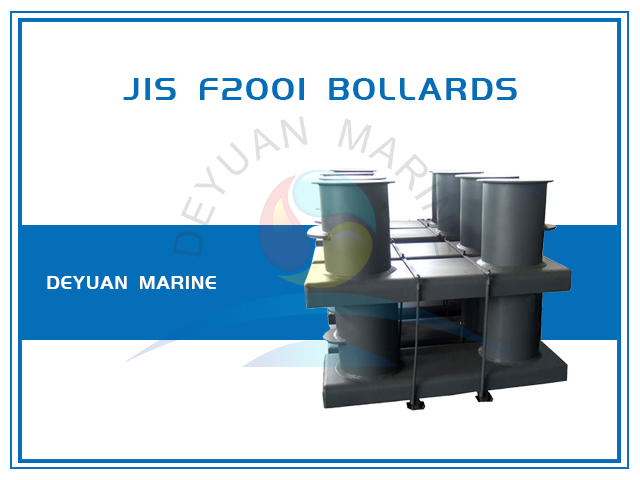

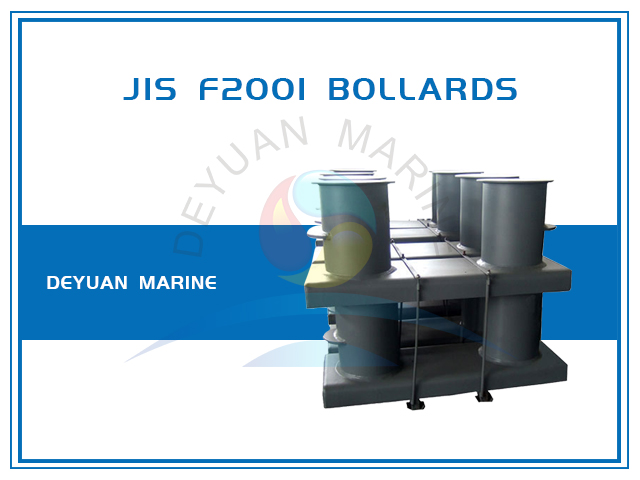

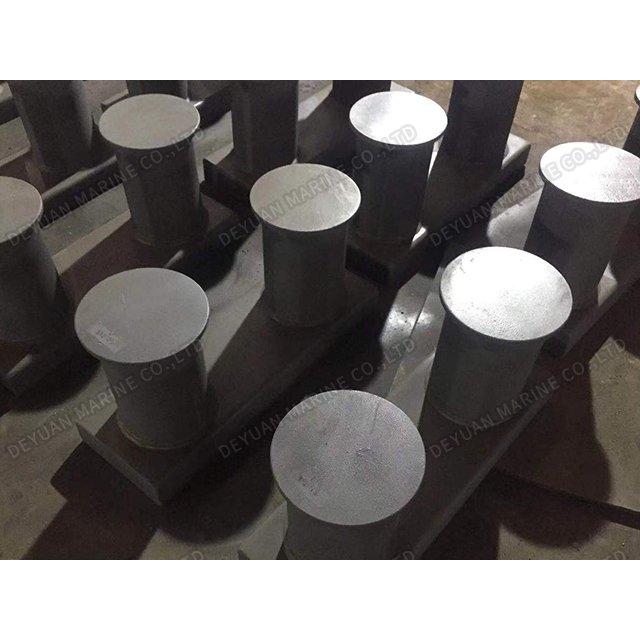

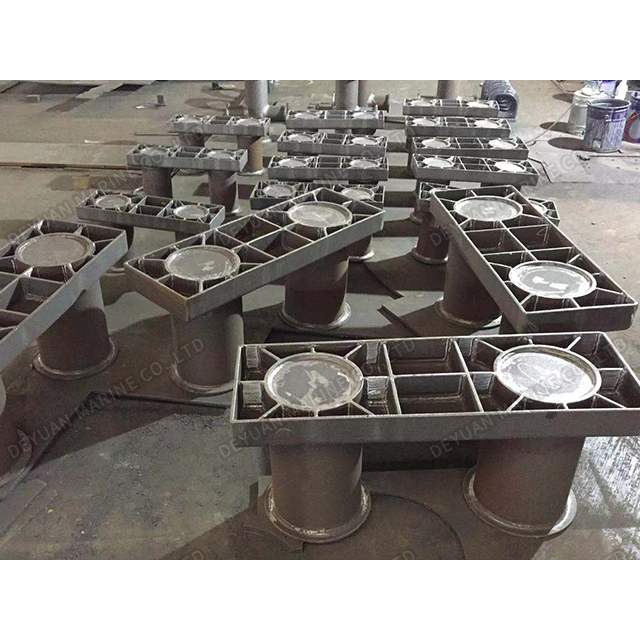

Introduction of JIS F 2001 Double Bitt Bollard
JIS F 2001 Double Bitt Bollard is a type of ship's mooring and towing fitting installed on board to belay the mooring and towing rope and can be supplied with a nominal diameter ranging from 125mm to 710mm.
JIS F 2001 Double Bitt bollard is a direct improvisation of Single Bitt type bollard offering comfort of multiple mooring line secured and accepted by different class societies like CCS, ABS, BV, DNV, LR, NK etc other IACS menbers.
DEYUAN MARINE provide full range of Double Bitt Bollard that manufactured according to following different standards
ISO13795 Bollards
JIS F 2001 Double Bitt Bollard
DIN82607 Double Bitts
NS2584 Bollards
GB/T554-96 mooring Bollards
Should any of the JIS Standard Bollards or double bitts be interested of you, pls feel free to contact us at any time, we are always ready at your service.

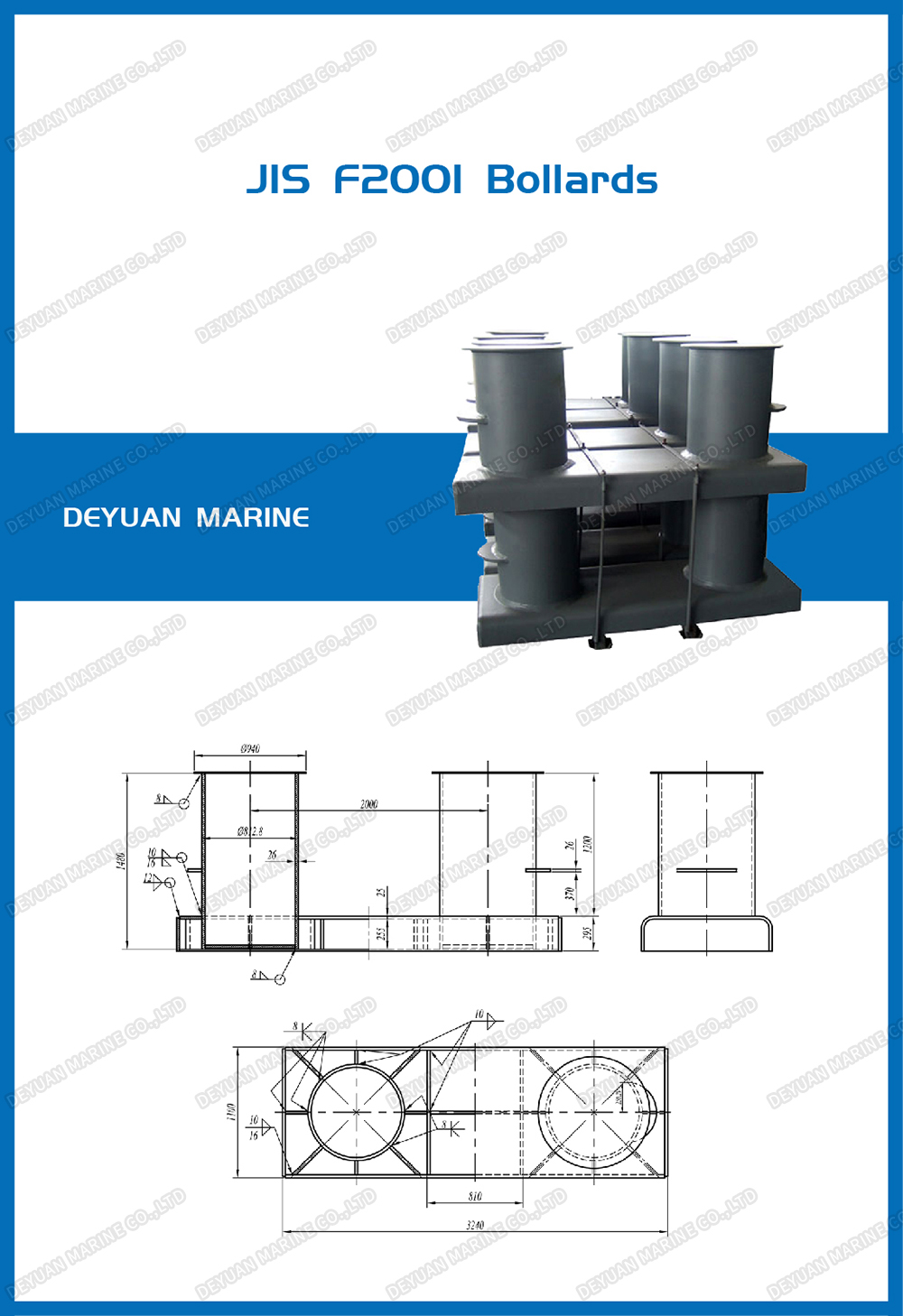

JIS F 2001 Double Bitt Bollard
| Nominal Dia. | Max.B.L of rope | Weight | Dimension | |||||
| (mm) | (Ton) | (kgs) | D | H1 | b | B | L | h |
| 100 | 3 | 19 | 114 | 150 | 250 | 165 | 445 | 50 |
| 125 | 4 | 29 | 139 | 190 | 315 | 195 | 540 | 60 |
| 160 | 5 | 45 | 165 | 250 | 400 | 225 | 670 | 70 |
| 200 | 8 | 80 | 216 | 300 | 500 | 290 | 860 | 85 |
| 250 | 12 | 139 | 267 | 380 | 630 | 360 | 1065 | 100 |
| 315 | 20 | 261 | 318 | 480 | 800 | 430 | 1300 | 125 |
| 355 | 26 | 361 | 355 | 530 | 890 | 480 | 1475 | 145 |
| 400 | 32 | 502 | 406 | 600 | 1000 | 550 | 1630 | 160 |
| 450 | 39 | 685 | 457 | 680 | 1130 | 620 | 1840 | 170 |
| 500 | 46 | 911 | 508 | 750 | 1250 | 690 | 2040 | 190 |
| 560 | 56 | 1208 | 558 | 830 | 1380 | 750 | 2240 | 210 |
| 630 | 70 | 1600 | 609 | 940 | 1570 | 820 | 2510 | 225 |
| 710 | 82 | 2252 | 711 | 1050 | 1750 | 960 | 2840 | 260 |
| 800 | 100 | 3071 | 812 | 1200 | 2000 | 1100 | 3240 | 295 |
