Product Description

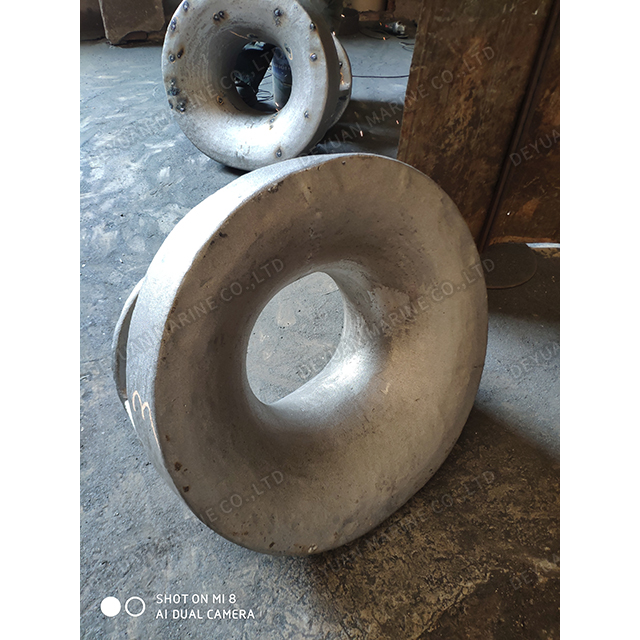

ISO13728 Panama Chock Bulwark Mounted Type B for Ships
Introduction of Panama Chock Bulwark Mounted
DEYUAN MARINE provides a comprehensive range of Panama Chock bulwark mounted type which usually used for temporary mooring, to lead the mooring and towing rope from the ship's inboard to outboard.
These bulwark mounted Panama Chocks are found at the vessel's bow bulwarks, below the gunwale. Bulwark chocks are bolted or welded to the hull and have rounded edges to avoid chafing the lines or cables passing through them.
Our bulwark mounted Panama Chocks can comply with the mooring requirements set by Panama Canal and meet
OCIMF requirements. All materials for our bulwark mounted Panama Chocks are covered by Class Certificates.
More ISO standard mooring chocks can be provided as followed, pls donot hesitate to contact us for a quotation.
ISO13713 Deck Mounting Mooring Chock Type A
ISO13713 Bulwark Mounting Mooring Chock Type B
ISO13729 Deck Mounting Closed Chock Type A
ISO13729 Bulwark Mounting Closed Chock Type B
Should any of the items be interested of you, pls feel free to send a message, we are always ready.
ISO13728 Panama Chock Bulwark Mounted Type B
Nominal size | SWL | Weight | Dimensions(mm) | ||||||
(mm) | (kn) | (t) | (kg) | L | l1 | l2 | H | H1 | H2 |
310 | 687 | 70 | 228 | 310 | 720 | 681 | 260 | 670 | 453 |
360 | 775 | 79 | 248 | 360 | 770 | 733 | 260 | 670 | 456 |
