Product Description

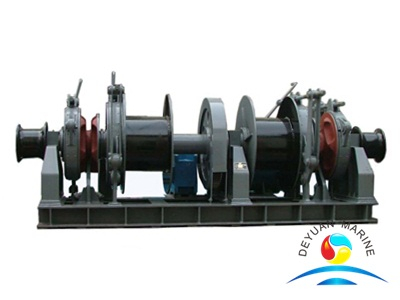

Ship Hydraulic Combined Anchor Windlass with Winches
When make the anchor windlass and mooring winch(es) together, it becomes a combined anchor windlass with winch(es). The combined anchor windlass with winch(es) are usually installed in the main deck of tern or poop deck.
This hydraulic combined anchor windlass is to be powered by hydraulic motor. Double drum or two winch barrels were designed for pulling back or letting go of mooring wires.
Double gypsies(cable lifters) were designed to grip the chain cable. Hydraulic power pack unit,hydraulic brake clutch,remote control,auto-tension are optional configurations, customers can choose according to their need.
| Type | Chain Drum | Motor Power | ||
| Chain Dia | Load | Speed | (kW) | |
| (mm) | (kN) | (m/min) | ||
| AW0E22 | 22 | 20.6 | 12 | 11 |
| AW0E24 | 24 | 24.5 | 12 | 11 |
| AW0E26 | 26 | 28.7 | 12 | 11 |
| AW0E28 | 28 | 33.3 | 12 | 11 |
| AW0E30 | 30 | 38.3 | 12 | 18.5 |
| AW0E32 | 32 | 43.5 | 12 | 18.5 |
| AW0E34 | 34 | 49.1 | 12 | 22 |
| AW0E36 | 36 | 55.1 | 12 | 30 |
| AW0E38 | 38 | 61.4 | 12 | 30 |
| AW0E40 | 40 | 68 | 12 | 30 |
| AW0E22/3 | 22 | 23 | 12 | 11 |
| AW0E24/3 | 24 | 27.4 | 12 | 15 |
| AW0E26/3 | 26 | 32.1 | 12 | 18.5 |
| AW0E28/3 | 28 | 37.2 | 12 | 18.5 |
| AW0E30/3 | 30 | 42.8 | 12 | 22 |
| AW0E32/3 | 32 | 48.6 | 12 | 30 |
| AW0E34/3 | 34 | 54.9 | 12 | 30 |
More hydraulic combined windlass can be offered,pls contact us for more details.

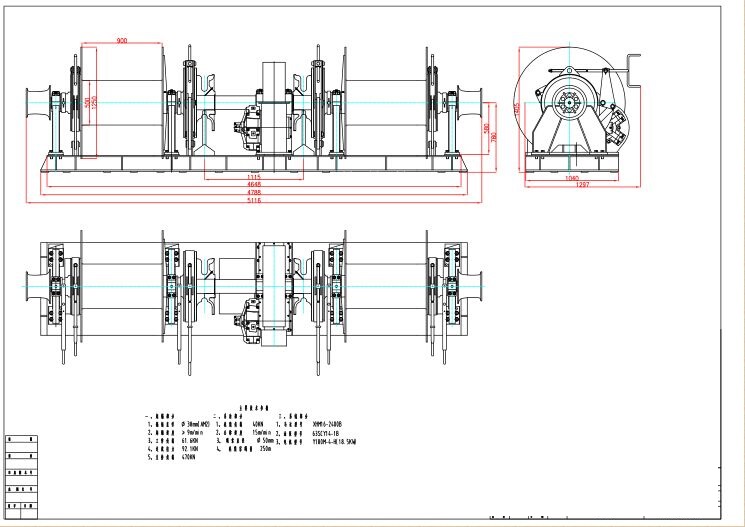

Double Gypsies and Dual winches with two end warping drum Hydraulic Combined Anchor Windlasses' Drawing for Reference:
