Single Gypsy Single Drum Marine Hydraulic Anchor Windlass

Brand: Deyuan Marine
Gypsy No.: 1 piece
Drum No. : 1 piece
Wraping drum: 1 piece
Drive: Hydraulic
Working load: 8.3~226.5KN
Certificate: DNV,CCS,BV,KR,LR,GL,NK
Availability:

Product Description

Single Gypsy Single Drum Marine Hydraulic Anchor Windlass


Single Gypsy Single Drum Marine Hydraulic Anchor Windlass has left side type and right side type options,you could choose the suitable anchor windlass to install on one portside or starboard or both sides, all depands on actual requirement.

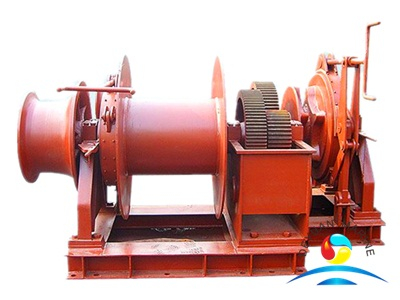

Note: The picture in this link is with bare gears just for watching into the gear box, actual product will be under cover.


The hydraulice anchor windlass has a single drum, capacity can be customized, such as 16mm, 150m; It is also combined with a wraping drum, could accommodate certain rope or wire.


The windlass is drived by hydraulic or electric, suitable for all kind of diameter of anchor chain, it can be used on the deck of small boat or big ship for anchoring use.


Main Performance Parameters

Single Gypsy Single Drum Marine Hydraulic Anchor Windlass
Name Chain Dia Working Load Supporting Load Working Speed Warping Load Hydraulic Motor Power
(mm) (KN) (KN) (m/min) (KN) (KW)
Φ14/16/17.5 Φ14/16/17.5 8.3/10.9/13.0 51/67/80 ≥9 8 5.5
Φ24/26 Φ19/20.5/22 24.5/28.7 149/175 ≥9 20 11
Φ32/34/36 Φ32/34/36 43.5/49.1/55.1 261/294/329 ≥9 30 22
Φ44/46/48 Φ38/40/42 82.3/89.9/97.9 483/526/570 ≥9 50 37
Φ50/52/54 Φ50/52/54 106.3/114.9/123.9 617/664/713 ≥9 50 45
Φ70/73 Φ70/73 208.3/226.5 1160/1254 ≥9 100 75

More marine hydraulic anchor windlass can be offered,pls contact us for more details and professional service.
