Marine Diesel Engine Driven Anchor Windlass

Brand: Deyuan Marine
Working load: 25T
Warping load: 5T
Chain diameter: 14mm~68mm
Gypsy: 2 pcs
Drive: Electric
Certificate: ABS,LR,DNV,RINA,BV,CCS,BKI,etc
Availability:

Product Description

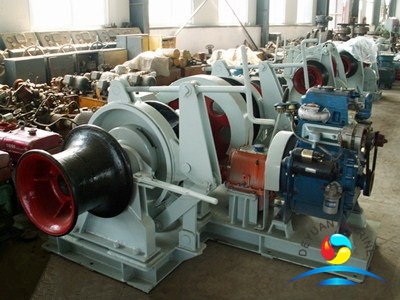

Marine Diesel Engine Driven Anchor Windlass


The Marine Diesel Engine Driven Anchor Windlass is suitable for big ships, workboat,offshore platform. The max.working load of gypsy can be more than 25T,and its speed is more than 9m/min; The max.warping load is up to 5T at a high speed of 15m/min.


Marine Diesel Engine Driven Anchor Windlass is driven directly by a new diesel engine, completely independent of electric power of the ship. The engine starts will use electric battery, and spring start stand by as well. Engine brand could be Commins, or cheaper Weichai, just on customer's require.


So many type of anchor windlass, there is must be one and only one is the most suitable one for you, what only need to present to your requirements, we will offer the perfect proposal of anchor windlass for you very quickly.


Marine Diesel Engine Driven Anchor Windlass
Chain Dia. Working Load Supporting Load Working Speed Warping Load Warping Speed Motor Power
(mm) (KN) (KN) (m/min) (KN) (m/min) (KW)
14/16/17.5 8.3/10.9/13 51/67/80 ≥12 8 10 4.3/1.7
19/20/22.5 15.3/17.9/20.6 95/110/126 ≥12 10 10 8.5/3.5
24/26 24.5/28.7 149/175 ≥9 20 8.5 8.5
28/30/32 33.3/38.3/43.5 202/231/261 ≥9 30 8.5 16/16/11
38/40/42 61.4/68.0/75 365/402/442 ≥9 50 8.5 22/22/16
42/44/46 75.0/82.3/89.9 442/483/526 ≥9 30 12 22/22/16
66/68 245.5/258.6 1350/1416 ≥9 50 15 60/60/45

More types of Marine Diesel Engine Driven Anchor Windlass can be offered,pls contact us for more details and professional service.
