Product Description

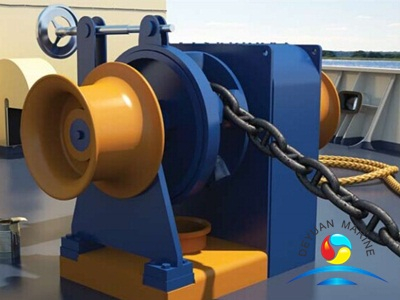

Hydraulic Single Gypsy Anchor Windlass with Two End Warping Drums
The winches combined anchor windlass is consist of part of anchor windlass and part of winch, with gypsy and drum, can also mounted warping end at both side if required.
Hydraulic Single Gypsy Anchor Windlass is designed for lifting and returning heavy anchors to and from the seabed in seagoing vessels.
Hydraulic Single Gypsy Anchor Windlass with Two End Warping Drums not only lifting anchor chain with anchor, but also with warping drum to pull ropes for taking back or tow light duty mooring . The single cable lifter/gypsy, double warping drums are in same shaft, has compact structure and nice appearance and very space saving!
Hydraulic Power Pack unit, brake system and remote control, automatic spooling device can be offered if required.
All our anchor windlasses can supply with certificate such as CCS,ABS,DNV,BV,RINA,BKI etc. Welcome contact with me if you want any this anchor windlass winches!
| Model | Working Load | Overload Pull | Drum Load | Motor Power | ||
| MM | U2 | U3 | U2 | U3 | (KN) | (KW) |
| 24 | 24.5 | 27.36 | 36.8 | 41.04 | 20 | 4.5 |
| 26 | 28.7 | 32.11 | 43.1 | 48.17 | 20 | 5.5 |
| 28 | 33.3 | 37.24 | 50 | 55.86 | 30 | 6 |
| 30 | 38.3 | 42.75 | 57.5 | 64.13 | 30 | 6.5 |
| 32 | 43.5 | 48.64 | 65.3 | 72.96 | 40 | 7.5 |
| 34 | 49.1 | 54.91 | 73.7 | 82.37 | 40 | 8 |
| 36 | 55.1 | 61.56 | 82.7 | 92.34 | 50 | 8.5 |
| 38 | 61.4 | 68.59 | 92.1 | 102.89 | 50 | 10 |
| 40 | 68 | 76 | 102 | 114 | 60 | 11.5 |
| 42 | 75 | 83.79 | 112.5 | 125.69 | 60 | 12.5 |
| 44 | 82.3 | 91.96 | 123.5 | 137.94 | 70 | 14 |
| 46 | 89.9 | 100.51 | 134.9 | 150.77 | 70 | 15 |
| 48 | 97.9 | 109.44 | 146.9 | 164.16 | 80 | 16.5 |
| 50 | 106.3 | 118.75 | 159.5 | 178.13 | 80 | 18 |
| 52 | 114.9 | 128.44 | 172.4 | 192.66 | 80 | 19.5 |
| 54 | 123.9 | 138.51 | 185.9 | 207.77 | 80 | 21 |
| 56 | 133.3 | 184.96 | 200 | 223.44 | 100 | 23 |
| 58 | 143 | 159.79 | 214.5 | 239.69 | 100 | 25 |
| 60 | 153 | 171 | 229.5 | 256.5 | 110 | 27 |
| 62 | 163.4 | 182.59 | 245.1 | 273.89 | 120 | 29 |
| 64 | 174.1 | 194.56 | 261.2 | 291.84 | 140 | 31 |
| 66 | 185.1 | 206.91 | 277.7 | 310.37 | 140 | 32.5 |
| 68 | 196.5 | 219.64 | 294.8 | 329.46 | 160 | 35 |
| 70 | 208.3 | 232.75 | 312.5 | 349.13 | 160 | 37 |
| 73 | 226.5 | 253.13 | 339.8 | 379.69 | 180 | 40 |
| 76 | 245.5 | 274.36 | 368.3 | 411.54 | 180 | 43 |
| 78 | 258.6 | 288.99 | 387.9 | 433.49 | 200 | 46 |
| 81 | 278.84 | 311.65 | 418.26 | 467.47 | 200 | 49 |
| 84 | 299.88 | 335.16 | 449.82 | 502.74 | 250 | 52 |
| 87 | 321.68 | 359.53 | 482.53 | 539.29 | 250 | 56 |
More electric combined anchor winch can be offered,pls contact us for more details.
