Product Description

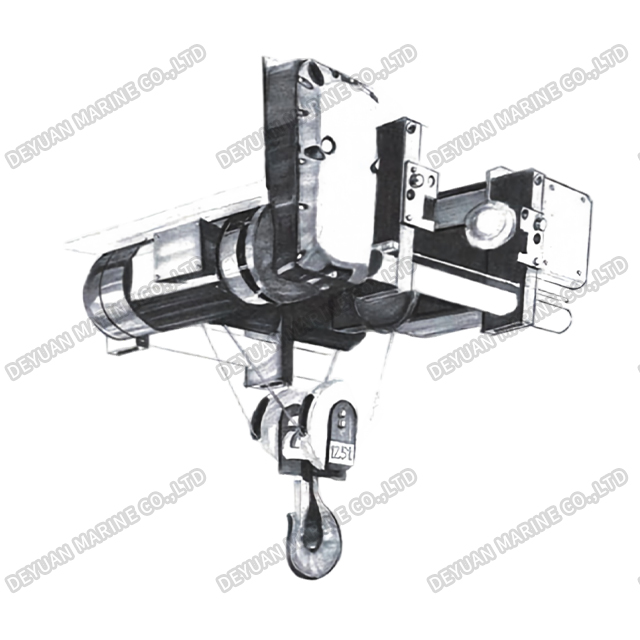

SHSL-B Electric Wire Rope Hoist
Product Introduction:
The SHSL-B Electric Wire Rope Hoist is a next‑generation heavy‑duty lifting solution engineered for continuous operation in extreme industrial conditions. Built on a robust, high‑strength steel housing, this model is specifically designed for applications requiring higher safety margins, longer service intervals, and superior heat dissipation. The SHSL‑B excels in foundries, mining facilities, cement plants, and automotive assembly lines.
Enhanced Structural Features:
*Double‑Grooved Rope Drum: Distributes wire rope evenly, reducing wear and extending rope life by up to 30%.
*Helical Gearbox with Forced Lubrication: Ensures reliable operation even at high ambient temperatures (up to 60°C).
*Dual Independent Braking System: A failsafe DC electromagnetic brake plus a secondary mechanical ratchet brake for absolute load holding.
*IP65 Protection Class: Dust‑tight and water‑resistant motor and control enclosure, suitable for harsh outdoor or dusty environments.
*Reinforced Hook Block: Equipped with a heavy‑duty thrust bearing and a 360° swivel safety latch.

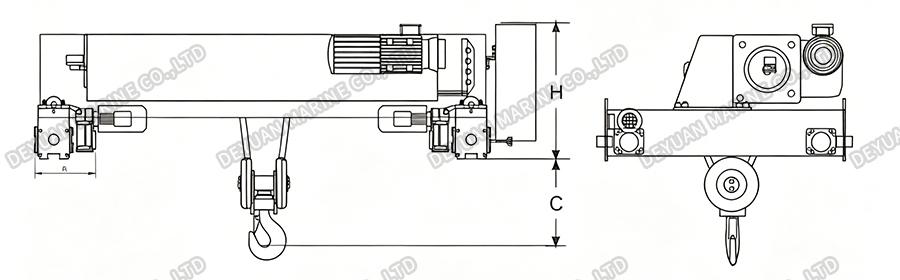

Drawing:
Technical Specifications:
| Load Capacity (Kg) | FEM | ISO | Height (m) | Speed (m/min) | Trolley Speed (m/min) | H Size (m/min) | C Size (m/min) |
| 2000 | 3m | M6 | 06/9/12 | 0.8/5.0 | 5~20 | 471 | 390 |
| 3200 | 2m | M5 | 06/9/12 | 0.8/5.0 | 5~20 | 471 | 390 |
| 5000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 471 | 450 |
| 6300 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 471 | 450 |
| 8000 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5~20 | 542 | 650 |
| 10000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5~20 | 542 | 650 |
| 10000 | 3m | M6 | 6/9/12/18 | 0.6/4.0 | 5~20 | 679 | 700 |
| 12500 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5~20 | 542 | 650 |
| 12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 679 | 700 |
| 16000 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5~20 | 679 | 700 |
| 20000 | 1Am | M4 | 6/9/12/18 | 0.66/4.0 | 5~20 | 679 | 700 |
| 20000 | 2m | M5 | 6/9/12/18 | 0.53/3.4 | 5~20 | 850 | 1200 |
| 25000 | 1Am | M4 | 6/9/12/18 | 0.53/3.4 | 5~20 | 850 | 1200 |
| 25000 | 2m | M5 | 6/9/12/18 | 0.8/3.3 | 5~20 | 864 | 1000 |
| 32000 | 2m | M5 | 6/9/12/18 | 0.8/3.3 | 5~20 | 864 | 1000 |
| 32000 | 2m | M5 | 6/9/12/18 | 0~4.9 | 5~20 | 1025 | 950 |
| 40000 | 1Am | M4 | 6/9/12/18 | 0~4.9 | 5~20 | 1025 | 950 |
| 50000 | 2m | M5 | 6/9/12/18 | 0~3.2 | 5~20 | 1023 | 1150 |
| 63000 | 1Am | M4 | 6/9/12/18 | 0~3.2 | 5~20 | 1023 | 1150 |
| 80000 | 1Bm | M3 | 06/9/12 | 0~2.4 | 5~20 | 1080 | 1500 |
Standard Supply Scope:
*1t ~ 32t: Standard with dual-speed lifting motor
*32t ~ 80t: Standard with VFD (variable frequency drive) lifting motor
*Lifting electromagnetic disc brake, maintenance-free design
*Power supply: 380V / 3Ph / 50Hz
*Control voltage: 48V
*Lifting limit switch
*Trolley traveling motor with VFD, speed: 5–20 m/min
*Motor protection rating: IP55, insulation class: F
*Hook block with safety latch
*Load limiter / overload limiter
*Ambient operating temperature: -20°C to +40°C
Ldeal Applications:
*Heavy steel coil handling
*Container loading/unloading
*Mining and aggregate processing plants
*Cement and refractory material factories
*Heavy machinery assembly bays
