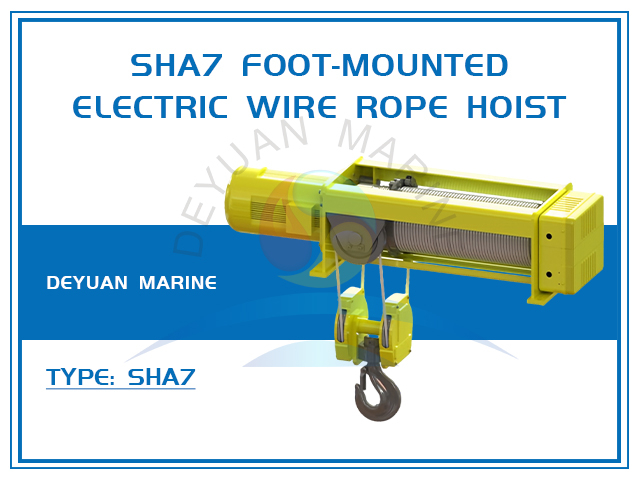

SHA7 Foot-mounted Electric Wire Rope Hoist

SHA7 Foot-mounted Electric Wire Rope Hoist

Product Introduction:

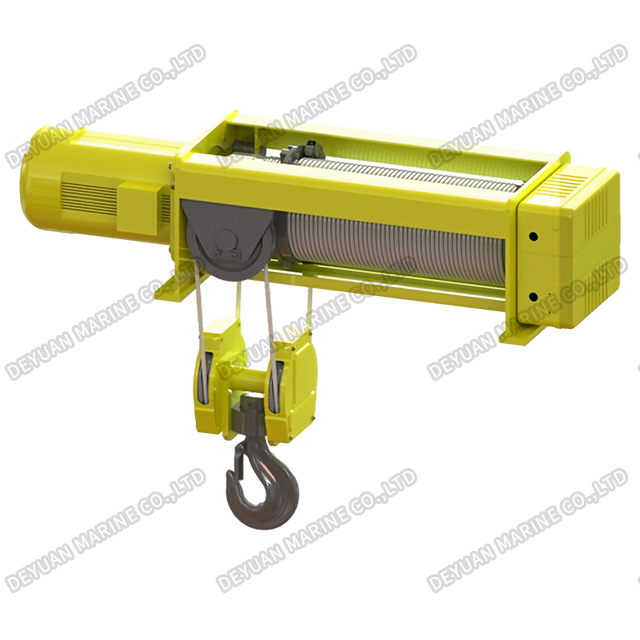

The SHA7 Foot-mounted Electric Wire Rope Hoist is a rugged and reliable stationary lifting solution designed for fixed-position lifting operations. With a rated capacity range from 1.6 tons to 20 tons, this hoist series is securely mounted on the floor or a fixed foundation via a heavy-duty base frame (foot mounting), providing stable and efficient vertical lifting at a dedicated workstation. It is the ideal choice for applications where load movement is limited to a single point, such as machine feeding, assembly stations, maintenance pits, and shipboard fixed-position lifting.

Unlike traveling hoists that move along overhead tracks, the foot-mounted design eliminates the need for complex rail systems, making it a cost-effective and space-saving solution for confined or low-headroom environments.

Key Features:

1.Foot-Mounted (Base-Mounted) Design – The hoist is rigidly fixed to the floor, foundation, or structural steel platform via a heavy-duty base frame with four mounting feet, ensuring exceptional stability and vibration-free operation during lifting.

2.Wide Capacity Range – Available from 1.6 tons to 20 tons, covering light to heavy-duty fixed-position lifting requirements across multiple industries.

3.High-Strength Wire Rope – Equipped with premium steel wire rope that offers excellent tensile strength, abrasion resistance, and long service life under continuous operation.

4.Efficient Electric Motor – Powered by a high-efficiency induction motor with Class F insulation and built-in thermal overload protection, ensuring reliable performance even in demanding working conditions.

5.Dual Braking System – Features both an electromagnetic disc brake and a mechanical load brake, providing redundant safety and precise load holding during lifting and lowering operations.

6.Precision Limit Switches – Fitted with upper and lower travel limit switches to prevent over-travel, along with optional slack rope protection to prevent wire rope entanglement and damage.

7.Rugged Steel Structure – Fabricated from high-strength steel with robust welding and stress-relief treatment, ensuring long-term structural integrity and resistance to deformation.

8.Corrosion-Resistant Finish – Heavy-duty industrial painting with anti-rust primer and topcoat, with optional marine-grade coating for shipboard and offshore applications.

9.Dual-Speed / Variable Frequency Drive (VFD) Control (Optional) – Available with dual-speed (4/1 m/min or 5/1.2 m/min) or VFD-controlled stepless speed adjustment for precise load positioning and smooth start/stop operation.

10.Easy Maintenance – Modular design allows quick and convenient access to motor, gearbox, wire rope drum, brake, and electrical components, reducing downtime and maintenance costs.

11.Customizable Power Supply – Supports 220V, 380V, 440V, 480V, 660V AC, 50/60Hz, with pendant push-button or wireless remote control options.

12.Versatile Rope Lay Options – Available with single-line or multi-line reeving configurations to optimize lifting speed and capacity based on application needs.

Applications:

The SHA7 Foot-mounted Electric Wire Rope Hoist is the ideal choice for fixed-position lifting operations across a wide range of industries:

1.Machine Shops & Factories – Loading and unloading heavy workpieces on lathes, milling machines, presses, and machining centers

2.Assembly Lines – Lifting and positioning components at dedicated assembly stations

3.Shipboard Use – Fixed-position lifting in confined vessel compartments, engine rooms, and deck areas

4.Offshore Platforms – Lifting supplies, spares, and maintenance equipment at fixed points on offshore installations

5.Warehouses & Storage Yards – Loading/unloading heavy goods at designated transfer points

6.Maintenance & Repair Facilities – Lifting engines, gearboxes, and heavy machinery parts for servicing

7.Construction Sites – Hoisting materials at fixed laydown areas

8.Mines & Tunnels – Vertical lifting at fixed shaft or portal locations

9.Agricultural & Forestry – Lifting heavy equipment and bulk materials at processing points

10.Utility & Power Plants – Lifting turbines, pumps, generators, and valves for installation and maintenance
