Product Description

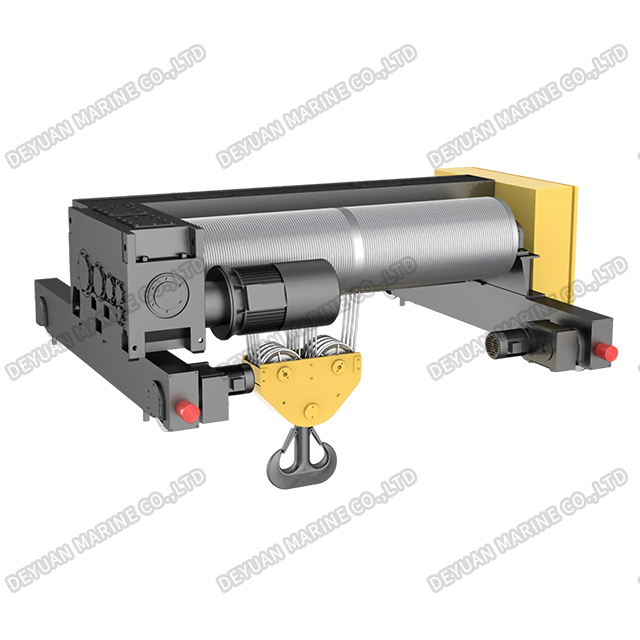

SHA8 Electric Wire Rope Hoist (20t-100t)
Product Introduction:
SHA8 Winch is a device that is driven by an electric motor and uses drums, ropes and related accessories to achieve functions such as lifting, lowering and traction. Its main structure includes motors, reducers, drums, ropes, braking systems, control systems, etc. The Winch drives the reducer to rotate through the motor, and then drives the drum to rotate through the output shaft of the reducer, and finally achieves the lifting or traction of objects through the winding or loosening of the rope. The SHA8 Winch uses a high-efficiency motor with high working efficiency and low energy consumption. The protection level of the motor is IP55, which can effectively prevent the intrusion of dust and moisture and ensure its stable operation in harsh environments. The SHA8 Winch is equipped with an advanced braking system, including mechanical braking and electric braking. The mechanical braking is achieved through components such as brakes and brake discs, and has a strong braking effect, ensuring that the equipment can be quickly shut down in an emergency. The control system of the SHA8 Winch adopts PLC control technology, which can realize the full monitoring and adjustment of the Winch. Through the control panel, the operator can view the working status of the equipment in real time and adjust the working speed, working direction, etc. according to needs.

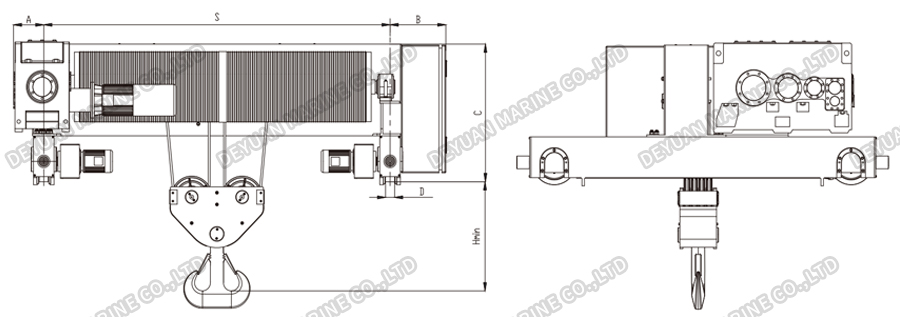

Drawing:
Technical Parameters:
| Model | Capacity (t) | Duty | Rope Reeving | Lifting Speed (m/min) | Lifting Motor (kw) | Travelling Speed ( m/min) | Travelling Motor (kw) | A mm | B mm | C mm | D mm | Hmin mm | Wire Rope Diameter mm | Rail Gauge (S) | Size | ||||
| 9m | 12m | 18m | 24m | 30m | |||||||||||||||
| SHA-W1 | 20 | M5 | 4/2 | 0~4.4 | 18.5 | 0~20 | 2×1.1 | 280 | 500 | 1100 | 75 | 800 | 15 | / | / | 1800 | 2000 | 2500 | S |
| 32 | M5 | 8/2 | 0~2.7 | 18.5 | 0~20 | 2×1.5 | 280 | 500 | 1100 | 75 | 900 | 15 | 1500 | 1800 | 2200 | 2700 | 3200 | S | |
| 40 | M5 | 8/2 | 0~2.2 | 18.5 | 0~20 | 2×2.2 | 280 | 530 | 1100 | 85 | 1000 | 15 | 1800 | 2000 | 2500 | 3000 | 3600 | S | |
| 50 | M5 | 12/2 | 0~3 | 18.5 | 0~20 | 2×2.2 | 280 | 530 | 1100 | 85 | 1000 | 15 | 1800 | 2000 | 2500 | 3000 | 3600 | S | |
| SHA-W2 | 32 | M5 | 4/2 | 0~6 | 22 | 0~20 | 2×1.5 | 400 | 530 | 1400 | 75 | 800 | 18 | / | / | 1500 | 1800 | 2000 | S |
| 63 | M5 | 8/2 | 0~3 | 22 | 0~20 | 2×3 | 400 | 530 | 1400 | 85 | 1000 | 18 | 1500 | 1800 | 2200 | 2500 | 3000 | S | |
| 80 | M5 | 12/2 | 0~2 | 38 | 0~20 | 2×4 | 400 | 600 | 1400 | 95 | 1050 | 18 | 1800 | 2200 | 2800 | 3500 | 4200 | S | |
| 100 | M5 | 16/2 | 0~1.5 | 38 | 0~20 | 2×4 | 400 | 600 | 1400 | 95 | 1100 | 18 | 2200 | 2500 | 3500 | 4300 | / | S | |
Applications:
The SHA8 Electric Wire Rope Hoist is widely used in:
*Shipbuilding & Shipyards – Lifting steel plates, engine parts, and cargo
*Marine Vessels – Onboard cargo handling and equipment maintenance
*Offshore Platforms – Lifting supplies and machinery in harsh sea environments
*Industrial Factories – Material handling, assembly lines, and die changing
*Warehouses & Logistics – Loading and unloading heavy goods
*Construction Sites – Hoisting building materials and structural components
