Product Description

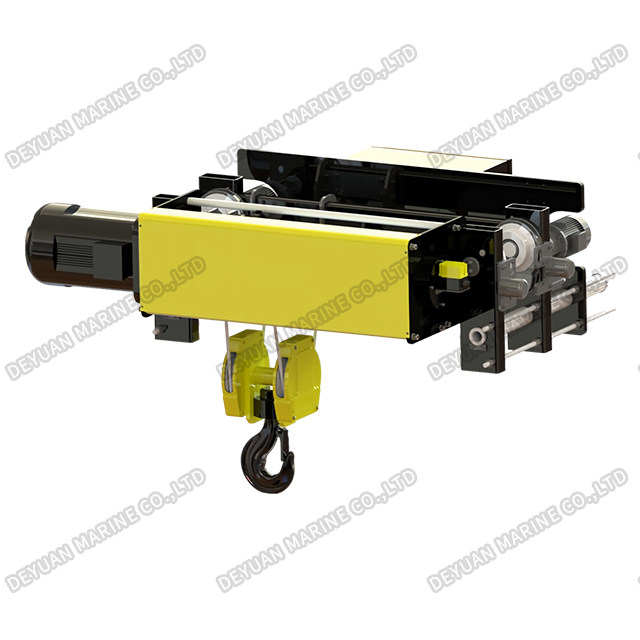

SHA7 Low Headroom Wire Rope Hoist (1.6t-10t)
Product Introduction:

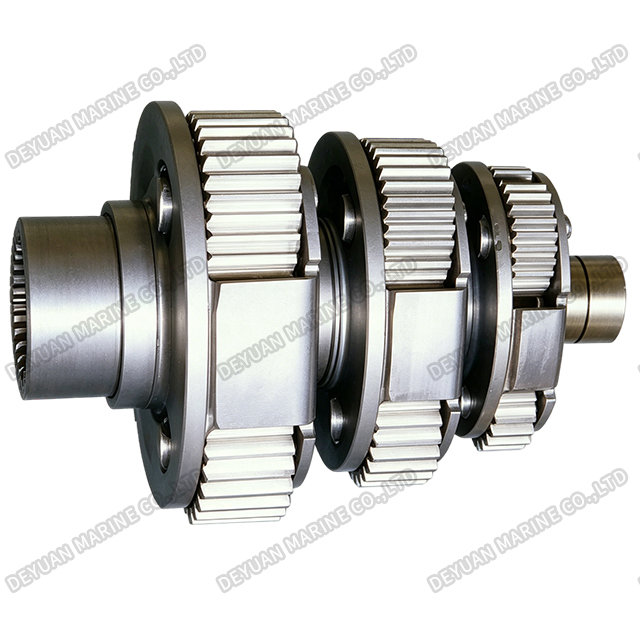

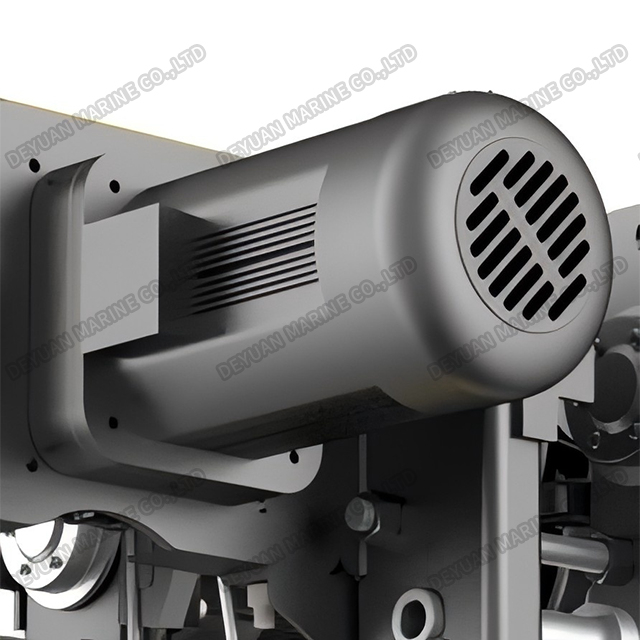

The SHA7 Low-headroom Wire Rope Hoist is a lifting device designed for low-headroom environments. It combines high-strength materials with precision technology. Its low-headroom design allows it to operate in a lower space than ordinary hoists, reducing the vertical height requirements when installing the equipment, thereby maximizing the use of limited space. The lifting mechanism of the SHA7 hoist is composed of a high-precision motor, reducer and brake system, which ensures smoothness and accuracy during the lifting process. Through the efficient motor drive, the lifting equipment can achieve more precise control during the lifting and lowering of the load. The motor adopts a high-efficiency design, which can continuously output strong power even under heavy loads; the reducer reduces mechanical friction through precision design to ensure smooth operation of the equipment; and the brake system can quickly and accurately lock the lifting components when stopping to prevent accidental sliding of the equipment. In the production workshop, especially in a highly restricted environment, the SHA7 low-headroom wire rope hoist can be used for heavy object handling, lifting and assembly operations. Through its precise control system and efficient lifting mechanism, it can optimize the workshop space while ensuring the safety of the operation.

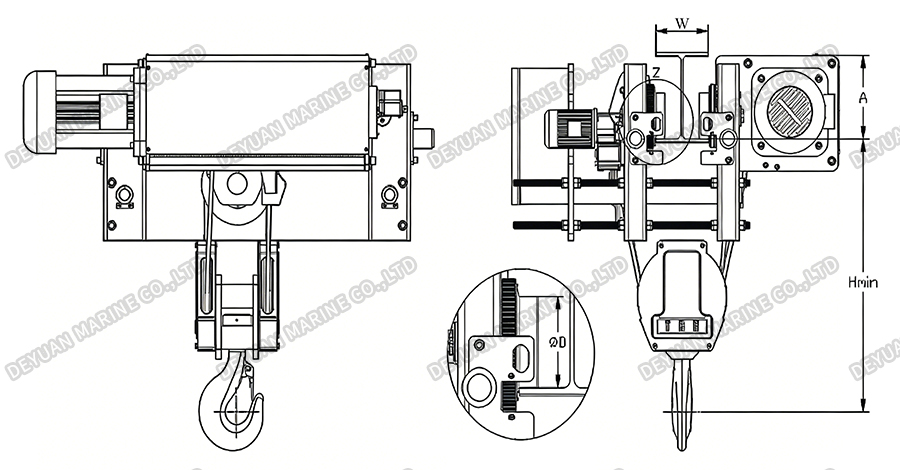

Drawing:
Technical Parameters:
| Model | Capacity (t) | Working Grade | Rope Reeving | Lifting Speed ( m/min) | Lifting Motor (kw) | Travelling Speed (m/min) | Travelling Motor (kw) | Rail Width RangeW(mm) | Wire Rope Diameter ( mm) | Wheel Diameter D ( mm) | A ( mm) | Hmin ( mm) | Lifting Height ( m) | |
| I-Beam | H-Beam | |||||||||||||
| SHA7-4D | 1.6 | M4 | 2/1 | 9/2.2 | 3/0.8 | 20/5 | 0.37/0.1×2 | 100-180 | 100-400 | 8 | 100 | 220 | 600 | 12/18/24/30 |
| 3.2 | M4 | 4/1 | 4.5/1.1 | 3/0.8 | 20/5 | 0.37/0.1×2 | 100-180 | 100-400 | 8 | 100 | 220 | 550 | 6/9/12/15 | |
| SHA7-5D | 3.2 | M4 | 2/1 | 8/2 | 4.5/1.1 | 20/5 | 0.37/0.1×2 | 110-180 | 110-460 | 11 | 125 | 220 | 750 | 9/12/18/24 |
| 6.3 | M4 | 4/1 | 4/1 | 4.5/1.1 | 20/5 | 0.37/0.1×2 | 110-180 | 110-460 | 11 | 125 | 220 | 650 | 6/9/12 | |
| SHA7-6D | 5 | M4 | 2/1 | 8/2 | 7.5/2 | 20/5 | 0.37/0.1×2 | 120-180 | 120-460 | 13 | 150 | 270 | 950 | 12/18/24/30 |
| 10 | M4 | 4/1 | 4/1 | 7.5/2 | 20/5 | 0.75/0.18×2 | 120-180 | 120-460 | 13 | 150 | 270 | 850 | 6/9/12/30 | |
| NOTE:Both Lifting and Travelling motor can be equipped with single speed or inverter motor,The power value is the fast power value. | ||||||||||||||
Applications:
The SHA7 Low Headroom Hoist is specifically designed for space-constrained environments and is widely used in:
1.Shipbuilding & Shipyards – Lifting steel plates, engine components, and cargo within confined vessel interiors
2.Marine Vessels – Onboard cargo handling and equipment maintenance in low-ceiling compartments
3.Offshore Platforms – Lifting supplies and machinery in harsh sea environments with limited headroom
4.Low-Ceiling Factories & Workshops – Material handling in older or renovated industrial buildings
5.Warehouses & Logistics – Loading and unloading heavy goods in storage areas with restricted height
6.Underground Facilities – Hoisting operations in mines, basements, and tunnels
7.Container / Vehicle Interiors – Internal lifting tasks within enclosed transport units
8.Retrofit & Renovation Projects – Upgrading existing overhead crane systems where headroom is insufficient for standard hoists
