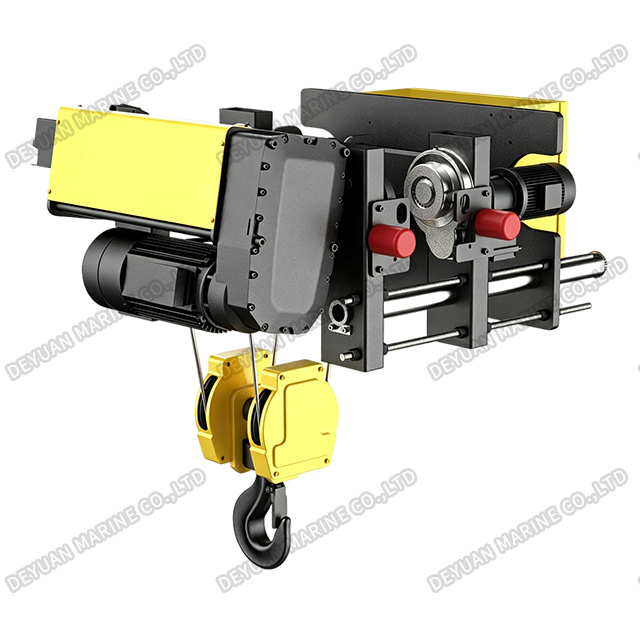

SHA8 Low-headroom Electric Wire Rope Hoist
Product Introduction:
The SHA8 Low-headroom Electric Wire Rope Hoist is a state-of-the-art lifting solution engineered for environments where overhead space is at a premium. This Euro-type hoist, also known as an ultra-low electric hoist, is specifically designed to minimize the distance between the hook and the supporting beam, thereby maximizing the effective lifting height within a given facility . It is an ideal choice for workshops, warehouses, assembly lines, and other material handling applications where ceiling height is restricted .
Technical Parameters With SEW Lifting Motor:
| Model | Capacity (t) | Duty | Rope Reeving | Lifting Speed (m/min) | Lifting Motor (Kw) | Travelling Speed (m/min) | Traveling Motor (Kw) | Rail width range W(mm) | Wire Rope Diameter (mm) | Wheel Diameter Dmm) | A (mm) | Hmin (mm) | Lifting height (m) | |
| IBeam | H Beam | |||||||||||||
| SHA8-2D | 1 | M7 | 2/1 | 10/1.6 | 3.6/0.55 | 20/5 | 2*0.37+ inverter | 100~180 | 100~400 | 7 | 100 | 220 | 600 | 12/18/24/30 |
| 1.25 | M6 | 2/1 | 10/1.6 | |||||||||||
| 1.6 | M5 | 2/1 | 10/1.6 | |||||||||||
| 2 | M7 | 4/1 | 5/0.8 | 510 | 6/9/12/15 | |||||||||
| 2.5 | M6 | 4/1 | 5/0.8 | |||||||||||
| 3.2 | M5 | 4/1 | 5/0.8 | |||||||||||
| SHA8-3D | 2 | M6 | 2/1 | 10/1.6 | 6.1/0.9 | 20/5 | 2*0.37+ inverter | 110~180 | 110~460 | 9 | 125 | 249 | 700 | 12/18/24/30 |
| 2.5 | M5 | 2/1 | 10/1.6 | |||||||||||
| 3.2 | M4 | 2/1 | 10/1.6 | |||||||||||
| 4 | M6 | 4/1 | 5/0.8 | 600 | 6/9/12/15 | |||||||||
| 5 | M5 | 4/1 | 5/0.8 | |||||||||||
| 6.3 | M4 | 4/1 | 5/0.8 | |||||||||||
| SHA8-4D | 4 | M6 | 2/1 | 10/1.6 | 11/1.8 | 20/5 | 2*0.37+ inverter | 120~180 | 120~460 | 13 | 150 | 336 | 900 | 12/18/24/30 |
| 5 | M5 | 2/1 | 10/1.6 | |||||||||||
| 6.3 | M4 | 2/1 | 10/1.6 | |||||||||||
| 8 | M6 | 4/1 | 5/0.8 | 2*0.75+ inverter | 800 | 6/9/12/15 | ||||||||
| 10 | M5 | 4/1 | 5/0.8 | |||||||||||
| 12.5 | M4 | 4/1 | 5/0.8 | |||||||||||
| Note:Inverter motor is for optional for lifting motor and travelling motor | ||||||||||||||
Technical Parameters With Chinese Lifting Motor:
| Model | Capacity ( t) | Duty | Rope Reeving | Lifting Speec (m/ min) | Lifting Motof (Kw) | Travelling Speed (m/min) | Travelling Motor (KW) | Rail width rangeW(mm) | Wire Rope Diameter (mm) | Wheel Diameter D(mm) | A (mm) | Hmin (mm) | Lifting height (m) | |
| IBeam | H Beam | |||||||||||||
| SHA8-2D | 1 | M7 | 2/1 | 10/1.6 | 3.2/0.45 | 20/5 | 2*0.37+ inverter | 100~180 | 100~400 | 7 | 100 | 220 | 600 | 12/18/24/30 |
| 1.25 | M6 | 2/1 | 10/1.6 | |||||||||||
| 1.6 | M5 | 2/1 | 10/1.6 | |||||||||||
| 2 | M7 | 4/1 | 5/0.8 | 510 | 6/9/12/15 | |||||||||
| 2.5 | M6 | 4/1 | 5/0.8 | |||||||||||
| 3.2 | M5 | 4/1 | 5/0.8 | |||||||||||
| SHA8-3D | 2 | M6 | 2/1 | 10/1.6 | 6.0/0.9 | 20/5 | 2*0.37+ inverter | 110~180 | 110~460 | 9 | 125 | 249 | 700 | 12/18/24/30 |
| 2.5 | M5 | 2/1 | 10/1.6 | |||||||||||
| 3.2 | M4 | 2/1 | 10/1.6 | |||||||||||
| 4 | M6 | 4/1 | 5/0.8 | 600 | 6/9/12/15 | |||||||||
| 5 | M5 | 4/1 | 5/0.8 | |||||||||||
| 6.3 | M4 | 4/1 | 5/0.8 | |||||||||||
| SHA8-4D | 4 | M6 | 2/1 | 10/1.6 | 9.5/1.5 | 20/5 | 2*0.37+ inverter | 120~180 | 120~460 | 13 | 150 | 336 | 900 | 12/18/24/30 |
| 5 | M5 | 2/1 | 10/1.6 | |||||||||||
| 6.3 | M4 | 2/1 | 10/1.6 | 12.5/2 | ||||||||||
| 8 | M6 | 4/1 | 5/0.8 | 9.5/1.5 | 2*0.75+ inverter | 800 | 6/9/12/15 | |||||||
| 10 | M5 | 4/1 | 5/0.8 | |||||||||||
| 12.5 | M4 | 4/1 | 5/0.8 | 12.5/2 | ||||||||||
| Note:Inverter motor is for optional for lifting motor and travelling motor | ||||||||||||||

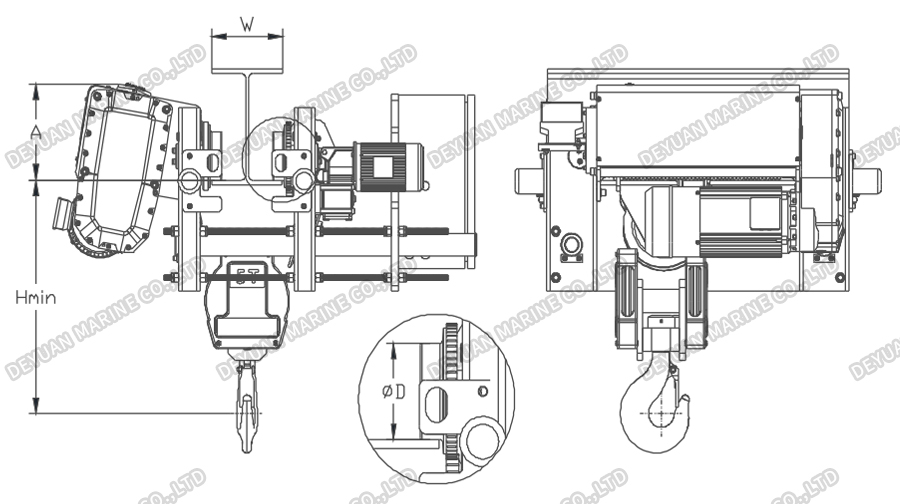

Drawing:
Key Features & Advantages:
1.Electronic unit
*Stable and durable contactor control, reliably work in bad condition
*Standard three phase voltage:380-415v,50hz(440-480v,60hz)
*Standard control voltage:48v
*Sturdy and durable control panel, IP54 protecting level
2.Control System
*Automatic orientation
*Automatic centering
*Automatic rectify deviation
*Inch moving,joggle
*Anti-shock
*Regional Protection
*Electronic anti-sway
*Remote communication, digital maintenance
3.Travelling driving unit
*Motor, gearbox and brake three-in-one
*Compact structure, small size and light weight
*Direct drive flexible design, stable torque transfer
*30% rotational efficiency higher than traditional coupling
*Suitable for frequency reverse switching
*Squirrel cage variable frequency motor 60% ED
*IP55 protecting level, H level insulation
*Safe and reliable DC brake
*Aluminum alloy shell, hard tooth surface reducer, well sealing without oil leakage
4.Hook Assembly
*Match to the standard of DIN15400/15401, forged by high strength alloy steel
*With safety latch to protect safely
*360° horizontal and 180° vertical rotations, operation easily
*High strength extrusion pulley, high finish rope groove to avoid friction with wire rope
5.Rope guider
*High performance engineering material, light self-weight, sturdy and reliable
*Circular design
*Precise rope guide system
6.Lifting drive unit
*Ip55 protecting level, F level insulation
*High efficiency double speed lifting motor, ratio 6:1
*60% ED, strong power and sufficient stock
*With thermal protecting function to prevent from over temperature
*Sturdy and durable aluminum alloy motor, light weight, good heat dissipation
*High-tech totally enclosed aluminum alloy gearbox
*Quenched and fine ground gear makes motor stable and low noise
*Free maintenance design:no need to change lubrication oil in lifetime
*DC brake, quick response
*The safety factor of brake is higher than 180%, manual release for optional
*With self-adjust function
*More than one million times brake operation
7.Imported Wire Rope
*High strength pressed solid galvanized wire rope
*2160N/mm² tensile strength
*40% smaller than traditional wire rope
*Good flexibility and long service life
*Press rope block for special use, intensively layout to prevent form loose, fastening is more reliable
*Fusible cutout rope technology, fusible surface is firm
*Effectively prevent from loose to extend service life
