Product Introduction:

The SH Type Electric Wire Rope Hoist with 1/4 Rope Reeving is a heavy-duty lifting solution engineered for applications requiring high load capacity with controlled lifting speeds. Unlike the 1/2 reeving configuration (fast speed, lower capacity), the 1/4 reeving system routes the wire rope through four rope parts supporting the load between the drum and the hook block, delivering significantly greater mechanical advantage.

Key Features & Benefits of 1/4 Rope Reeving:

1.Higher Load Capacity: The four-rope-part design distributes the load more evenly, enabling the same hoist frame to handle larger capacities than a 1/2 reeving setup.

2.Controlled Lifting Speed: While slower than 1/2 reeving, the 1/4 configuration provides better load control and precise positioning, ideal for heavy or delicate loads.

3.Reduced Rope Tension: Each individual rope part experiences lower tension, extending wire rope service life and improving safety margins.

4.Compact & Modular Design: Retains the square, modular construction of the SH series, allowing easy maintenance and parts interchangeability.

5.Reliable Planetary Gearbox: Features planetary gear transmission for high efficiency, low noise, and extended operational life.

6.Conical Rotor Brake Motor: Provides low noise operation and fail-safe braking.

7.Advanced Rope Guiding Technology: Ensures smooth, stable, and reliable rope winding, reducing wear and jamming.

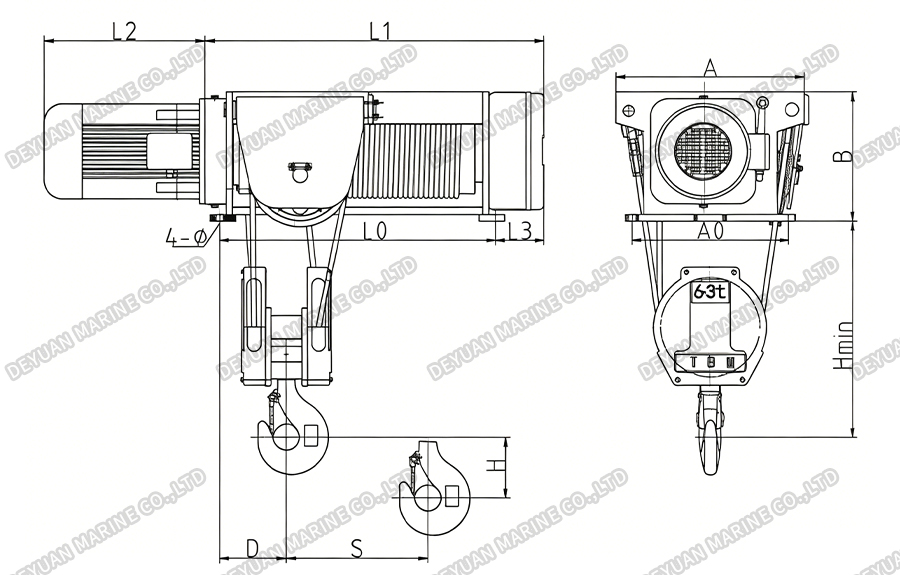

Drawing:

Specification Dimensions1:

Specification Dimensions2:

Technical Specifications:

Typical Applications:

*Heavy-duty single girder overhead cranes

*Industrial workshop cranes with medium to high capacity needs

*Loading bays handling dense materials (e.g., steel coils, machinery)

*Mining and port auxiliary lifting

*Applications with moderate lift heights
