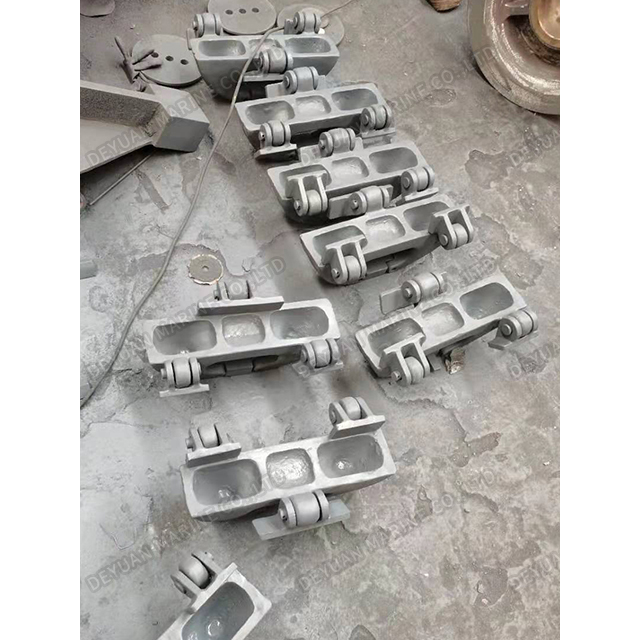

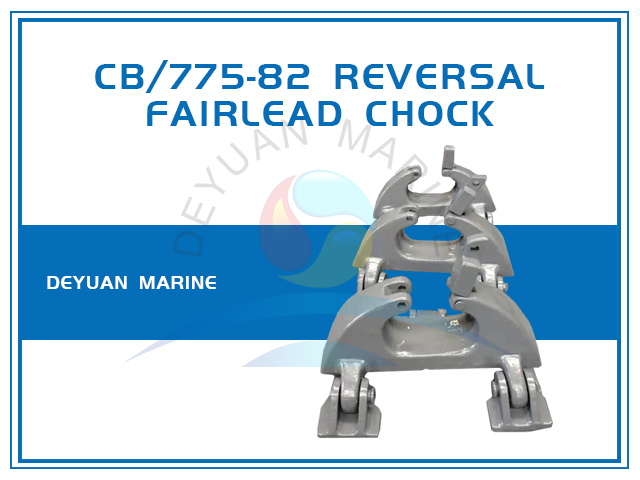

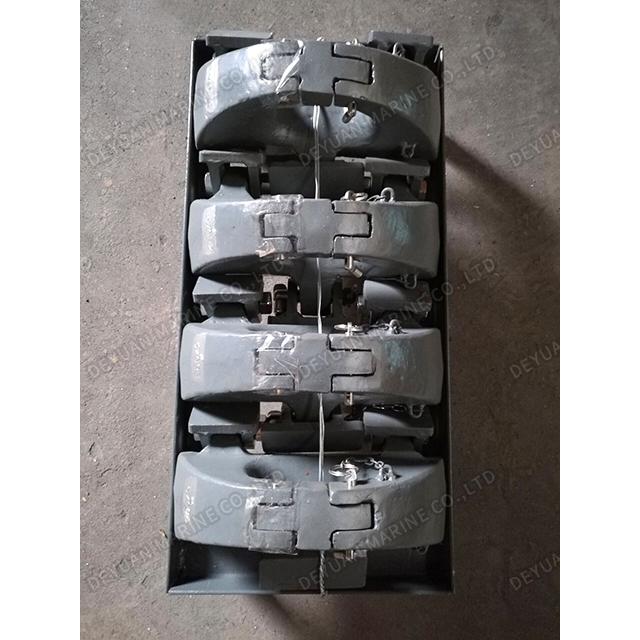

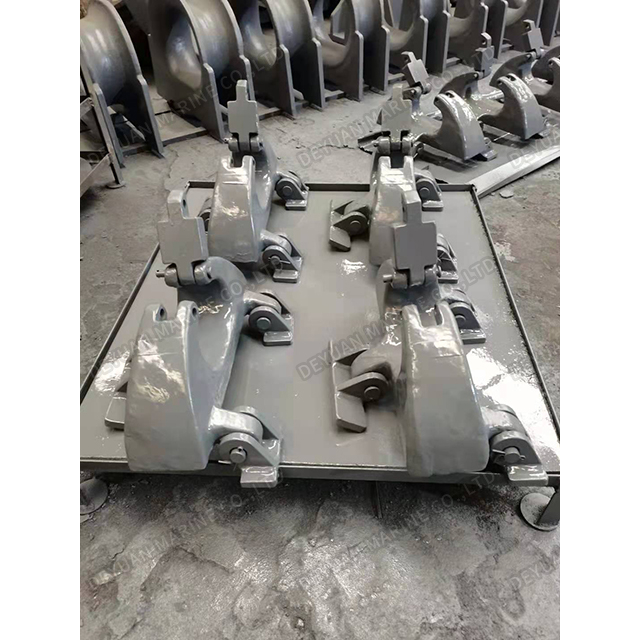

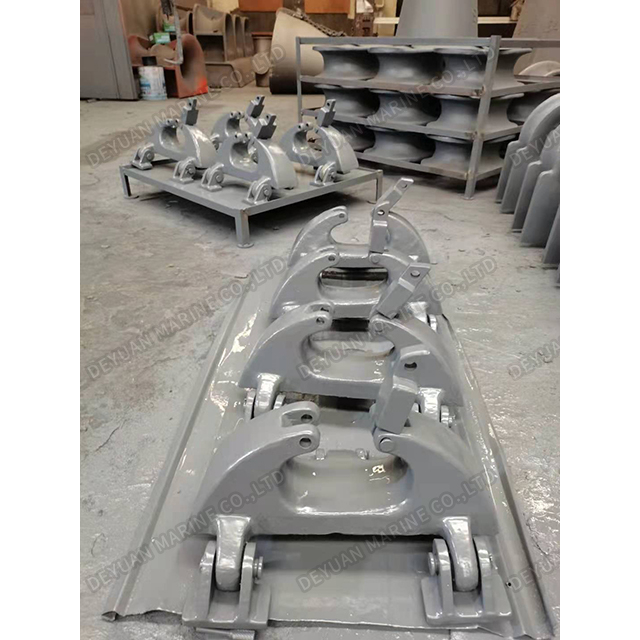

Reversal Fairlead Chock CB 775-82

Place of Origin: China
Brand: Deyuan Marine
Standard: CB775-82
Material: Cast steel
Max Wire Rope Size 13~26mm
Surface Treatment: Expoxy primer coating
Certificate: IACS certificate available
Availability:

Product Description

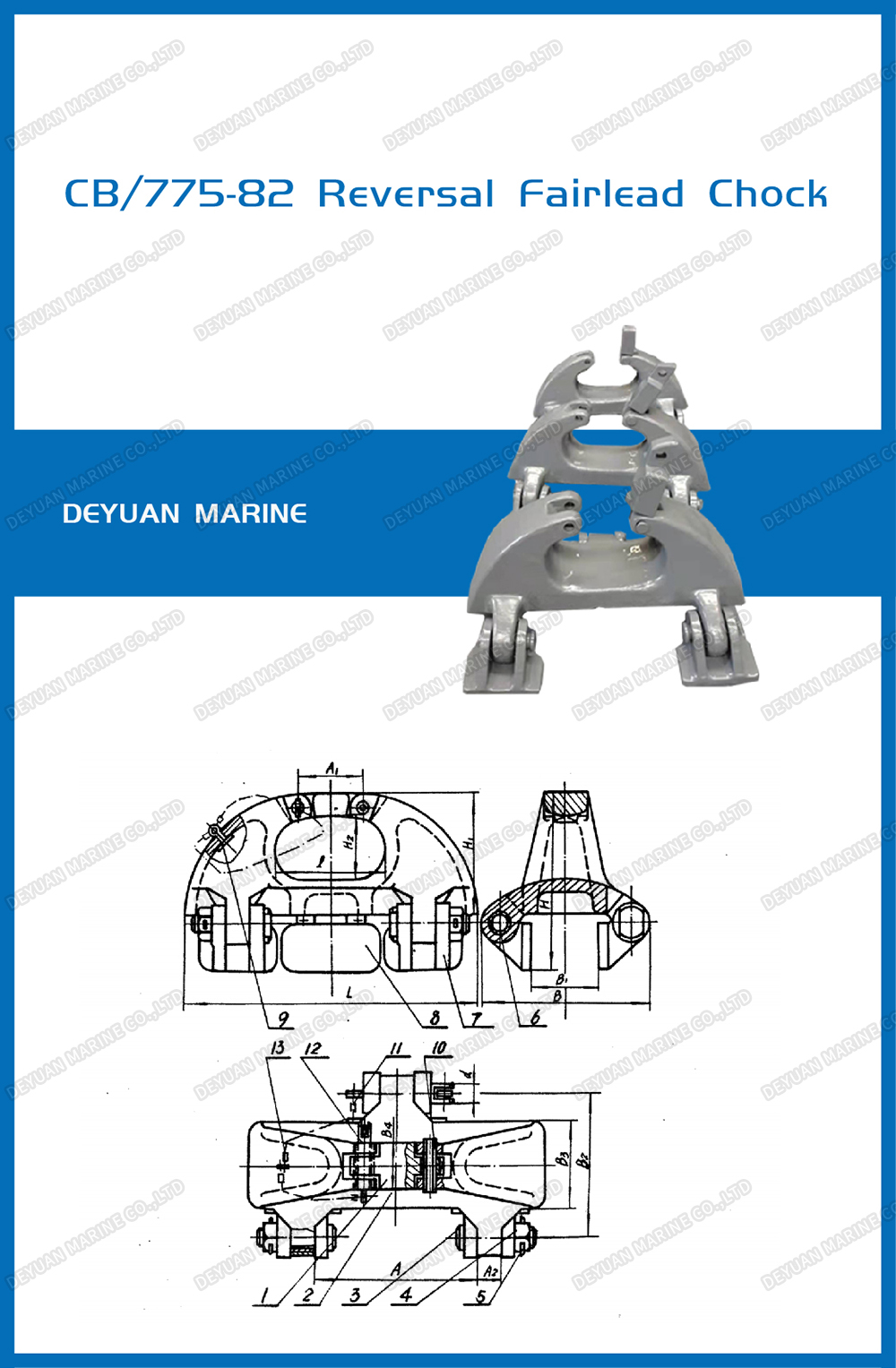

Reversal Fairlead Chock CB 775-82


Max Wire Rope Dia. L B H A A1 A2 I B1 B2 B3 B4 H1 H2 d
13 270 160 173 148 60 22 100 50 120 75 40 123 65 16
15.5 320 184 185 194 74 26 130 64 140 90 50 133 70 18
17.5 400 217 208 250 100 30 163 81 165 100 60 150 80 20
19.5 480 256 243 300 120 35 204 110 200 100 65 168 95 22
22.5 580 296 283 360 140 40 255 126 230 130 70 192 105 28
24 610 320 317 390 154 45 286 126 246 140 76 210 115 30
26 656 342 336 440 170 50 300 150 266 150 82 232 130 30

CB 775-82-01
