CB/T38-1999 Fairlead Chocks

Place of Origin: China
Brand: Deyuan Marine
Standard: CB/T39-19
Material: Cast Steel
Model: Type B
Surface Treatment: Expoxy primer coating
Certificate: IACS certificate available
Availability:
Inquire Add to Basket

Product Description

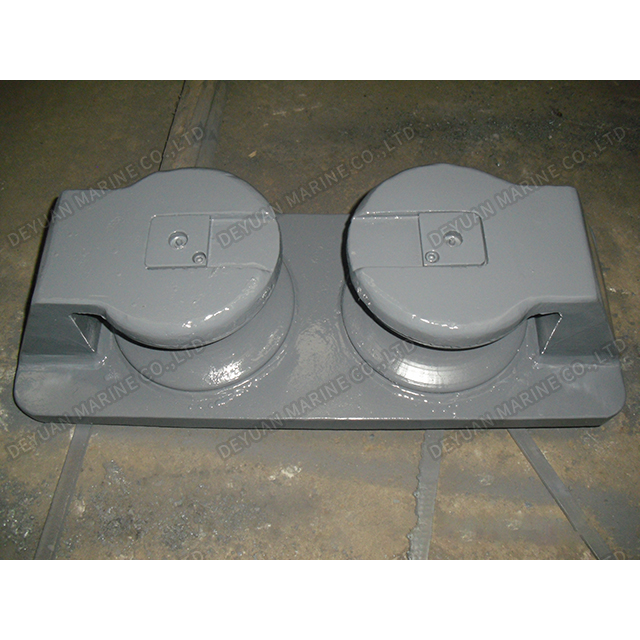

CB/T38-1999 Fairlead Chocks-Type B





Nominal size Chain′s MBL(kN) Max.dia.of chain Body Roller Roller axle
d		 Weight
(kg)
Steel wire Synthetic fiber rope L B I I2 b h1 D D1 H1
6×24
75 23.3 7.4 12 400 150 150 125 75 70 75 120 64 22 18
100 52.5 11 18 530 200 200 165 100 92 100 160 86 32 41
125 93.4 15 24 650 250 250 200 125 108 125 200 102 40 76
150 145.8 18.5 30 780 300 300 240 150 126 150 240 120 50 132
200 246.6 24 40 1100 370 400 300 200 161 200 310 154 63 264
250 373.6 30 48 1240 470 500 370 240 191 250 400 184 75 498
300 472.7 33.5 56 1480 550 600 440 290 231 300 480 224 90 798
350 583.5 37.5 64 1690 640 690 500 340 251 350 560 244 100 1134

CB/T38-1999 Fairlead Chocks china deyuan marine
