Product Description

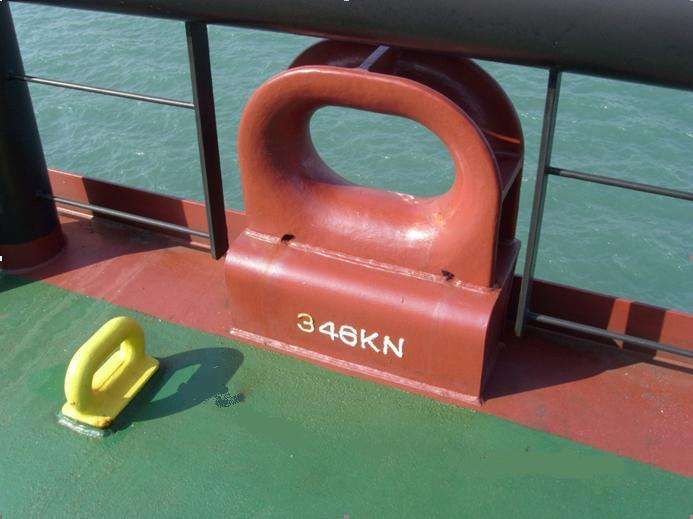

Panama Marine Chock CB34-76 A Type Deck Mountable Chocks With Long Lifetime
Panama Chocks / Deck chocks can be either mounted / welded directly onto or into the hull, or alternatively can come supplied with a base plate to be bolted to a plinth, Deck Mountable Chocks acting as a specific guide for mooring lines. The single Panama chocks and the double mooring chocks comply with the Panama Canal regulations. Our Panama Chocks Type A are covered by Class Certificates. Welcome your contact about more details and competitive price of Closed Chocks Deck Mounting Type.
Our scope supply includes JIS F marine mooring chocks, Panama chocks,also call panama bows, panama canal chocks. All these mooring chocks are manufactured from high quality cast steel and used for guidance of rope mooring lines on board. There are three types of ship chocks for option, open chock, closed chock, roller chock.
Marine Chock CB34-76 A Type
Max.steel wire dia. | Hemp rope C. | Max.nylon wire dia. | L | L1 | L2 | B | B1 | B2 | t | b1 | b2 | weight (kg) |
18.5 | 160 | 35 | 200 | 300 | 340 | 130 | 230 | 270 | 18 | 18 | 110 | 16.4 |
22.5 | 200 | 45 | 260 | 400 | 450 | 170 | 310 | 360 | 22 | 25 | 160 | 40.4 |
28 | 230 | 55 | 320 | 465 | 515 | 200 | 345 | 395 | 25 | 28 | 175 | 57 |
33.5 | 270 | 70 | 400 | 572 | 632 | 260 | 430 | 490 | 30 | 32 | 200 | 95.6 |
43.5 | 325 | 90 | 480 | 685 | 755 | 310 | 525 | 595 | 35 | 35 | 240 | 171 |
