Product Description

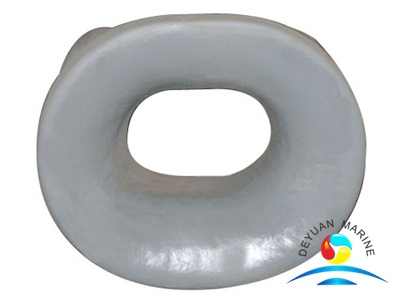

BC Type Mooring Chock JIS F2007-76 Bulwark Mounted Carbon Steel Material
Mooring Chock A Type was made according to the standard of JIS F2007-76 and cast from high quality steel. Marine mooring chocks are used to feed line in the direction you require to increase efficiency. For mooring purposes you will therefore need bulwark chocks. The Bulwark Mounted chocks can be supplied with primed paint or galavnised finished to protect it from harsh weather environments,
There are three types of ship chocks available: open chock, closed chock, roller chock. If you are interested, pls contact our sales team and ask for details technical datasheet for reference, we will offer the best quote, the fastest service and the fatset delivery time upon your order quantity.
Technical Schematics:
| Weight | Type | A | B | C | D | E | F |
| 15.1 | 150 | 150 | 300 | 110 | 260 | 129 | 270 |
| 20.5 | 200 | 200 | 368 | 150 | 318 | 143 | 334 |
| 26.9 | 250 | 250 | 430 | 200 | 380 | 155 | 394 |
| 42.7 | 300 | 300 | 500 | 250 | 450 | 169 | 460 |
| 50.8 | 350 | 350 | 560 | 250 | 460 | 179 | 518 |
| 76.3 | 400 | 400 | 632 | 250 | 482 | 195 | 586 |
| 102 | 450 | 450 | 700 | 250 | 500 | 209 | 650 |
| 115 | 500 | 500 | 760 | 250 | 510 | 219 | 708 |
