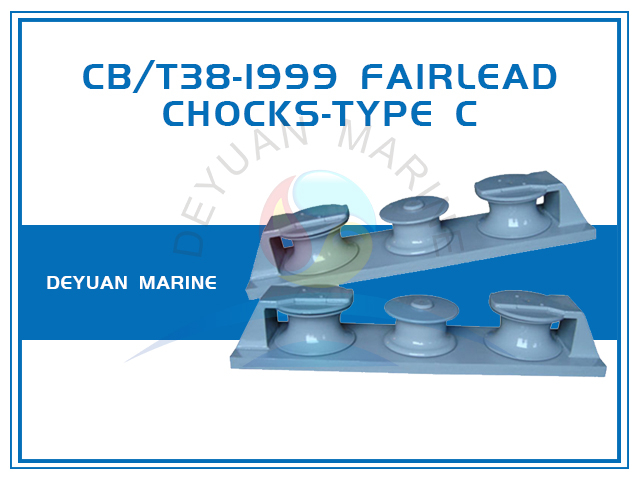

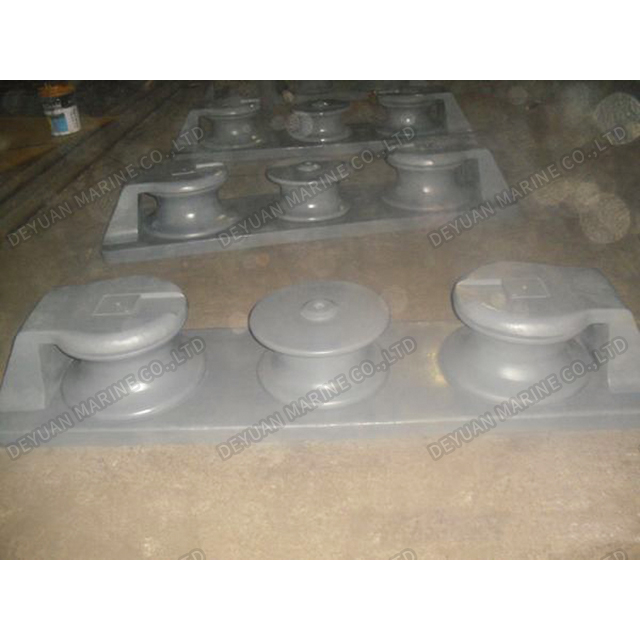

CB/T38-1999 Fairlead Chocks-Type C

Place of Origin: China
Brand: Deyuan Marine
Standard: CB/T39-19
Material: Cast Steel
Model: Type C
Surface Treatment:Expoxy primer coating
Certificate:IACS certificate available
Availability:

Product Description

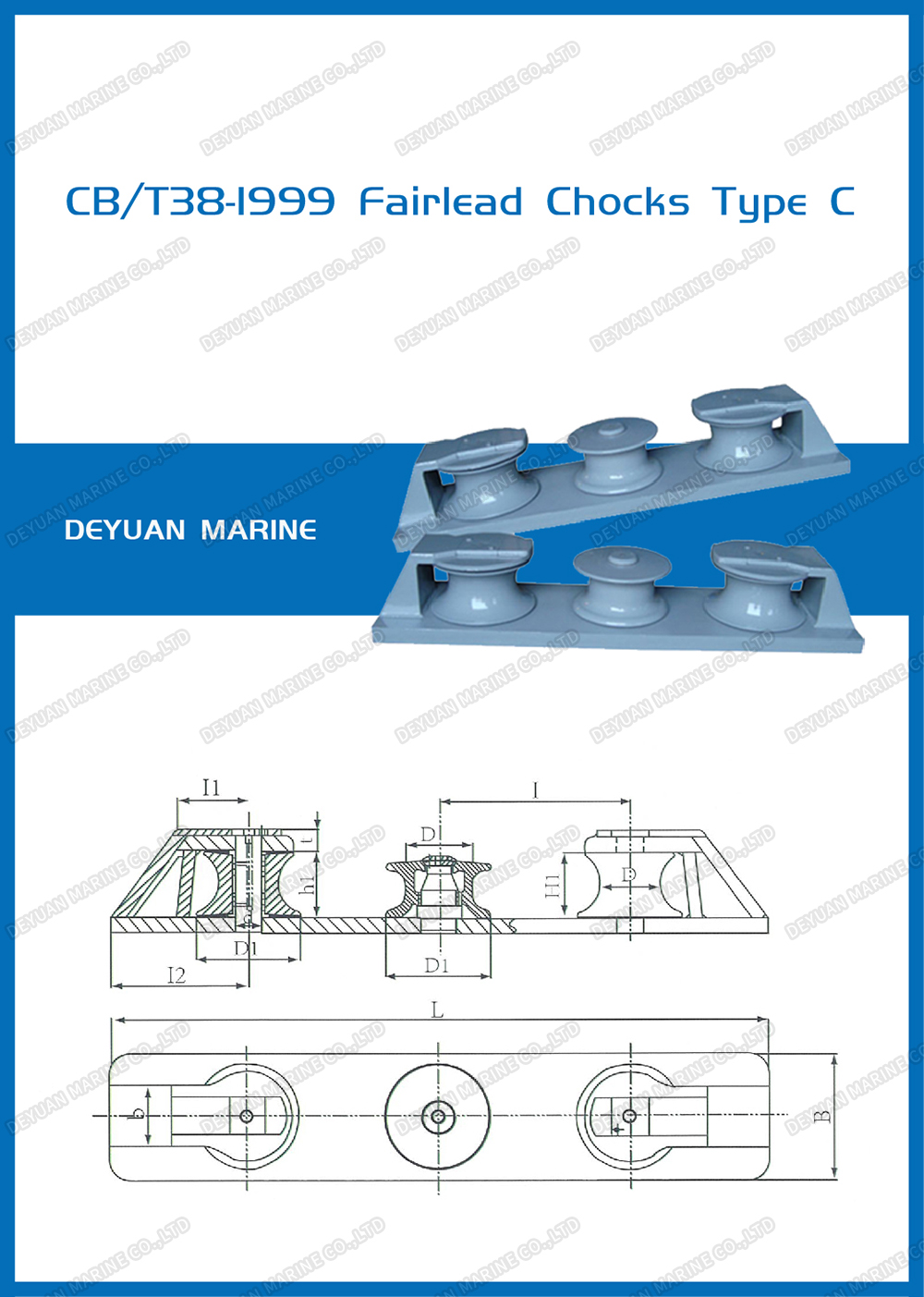

CB/T38-1999 Fairlead Chocks-Type C


Nominal size Rope MBL(kN) Max.dia.of rope Body End roller End axle
d
Mid roller Mid axle
d1
Weight
(kg)
Steel wire Synthetic fiber rope L B h1 D D1 H1 D D1 H1
6×24
75 23.3 7.4 12 550 170 70 75 120 64 22 75 120 64 34 27
100 52.5 11 18 750 200 92 100 160 86 32 100 160 86 48 60
125 93.4 15 24 920 250 108 125 200 102 40 125 200 102 63 116
150 145.8 18.5 30 1120 300 126 150 240 120 50 150 240 120 75 198
200 246.6 24 40 1420 370 161 200 310 154 63 200 310 154 95 398
250 373.6 30 48 1780 470 191 250 400 184 75 250 400 184 120 767
300 472.7 33.5 56 2120 550 231 300 480 224 90 300 480 224 140 1240
350 583.5 37.5 64 2440 640 251 350 560 244 100 350 560 244 150 1795

CB-T38-1999-Fairlead-Chocks-Type-C
