Product Description

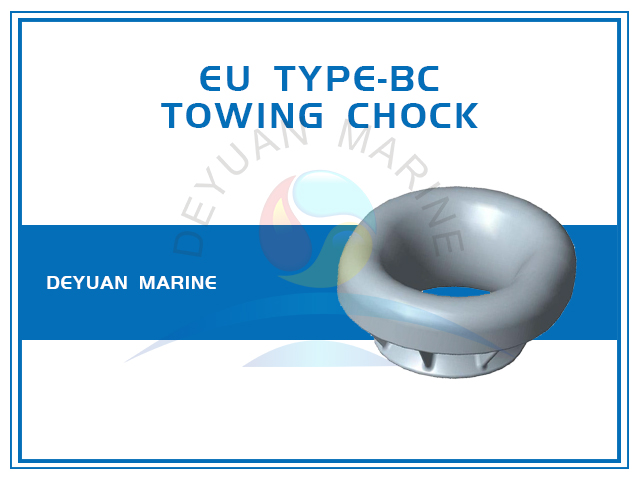

Bulwark Mounted EU Type Panama Towing Chock for Ships
Introduction of EU Type Panama Towing Chock
EU Type Panama Towing Chock also know as EU type Panama Bow Chock or Panama Canal Chock, is a kind of bulwark mounted fairleads which can be bolted or welded to the vessel's bow bulwarks.
This EU towing Chock is specially designed for towing purpse and accepted by Panama Canal Authority and
Class societies.
DEYUAN MARINE provides a comprehensive range of deck mounted or bulwark mounted towing chocks including high-quality marine grade steel, suitable for heavy use and high working loads.
Other common Panama Chocks like ISO standard, JIS F standard, DIN standard Chocks also can be provided in various sizes.
If you are looking for any Panama Chocks for you project, pls donot hesitate to contact DEYUAN MARINE for a catalog.
Bulwark Mounted EU Type Panama Towing Chock
Nominal Size | Weight | Dimensions(mm) | |||||||
(mm) | kgs | A | B | C | D | E | H | L | N |
315 X 250 | 198 | 315 | 250 | 695 | 630 | 432 | 342 | 168 | 497 |
425 X 280 | 358 | 425 | 280 | 925 | 780 | 516 | 450 | 224 | 661 |
600 X 315 | 547 | 600 | 315 | 1160 | 875 | 571 | 504 | 250 | 866 |
* 600 X 450 | 850 | 600 | 450 | 1160 | 1010 | 706 | 504 | 260 | 856 |
* 800 X 600 | 1200 | 800 | 600 | 1500 | 1300 | 860 | 580 | 290 | 1060 |
* 1000 X 800 | 1580 | 1000 | 800 | 1760 | 1560 | 1250 | 700 | 350 | 1450 |
Remark: for the size mark with *mainly for Towing Purpose |
