Product Description

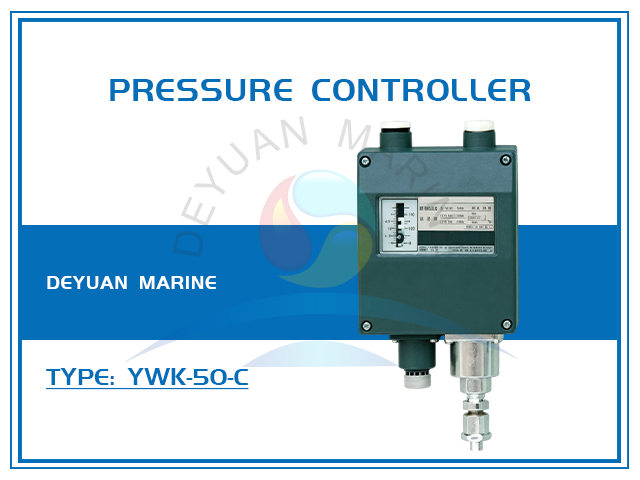

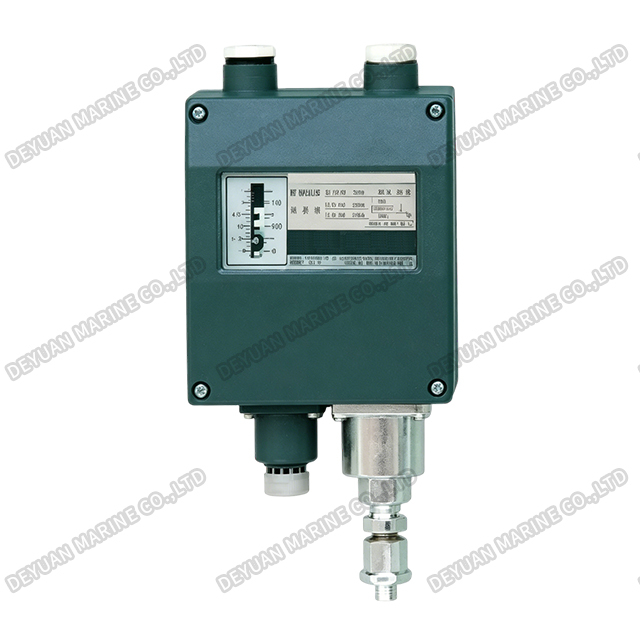

YWK-50-C Pressure Controller
Product Introduction:
YWK-50-C type pressure controller is an electrical switch that can close or open the circuit following pressure changes. It can be used to control the pressure of gas, steam or liquid with a two-position action, and is suitable for ships, refrigeration equipment and other industrial facilities.
Main Technical Specification:
| Control range | Switching error adjustable limit | Enactment error | Repeatability error | Contact capacity | Protection | Remark | |
| Min. | Max. | ||||||
| 0~0.1 | ≤0.006 | ≥0.028 | ±0.004 | ±0.003 | The medium is incorrosive to brass,stainless steel and solders of tin and lead. | ||
| 0~0.2 | ≤0.01 | ≥0.08 | ±0.008 | ±0.006 | |||
| 0~0.3 | ≤0.025 | ≥0.10 | ±0.012 | ±0.008 | The medium is incorrosive to brass,lead, bronze and solders of tin and copper. | ||
| 0~0.5 | ≤0.03 | ≥0.10 | ±0.02 | ±0.008 | |||
| 0~0.8 | ≤0.07 | ≥0.25 | ±0.032 | ±0.015 | |||
| 0~1.0 | ≤0.07 | ≥0.25 | ±0.04 | ±0.02 | |||
| 0~1.5 | ≤0.10 | ≥0.28 | ±0.06 | ±0.025 | The medium is incorrosive to brass,lead, stainless steel and solders of tin and copper. | ||
| 0~2.0 | ≤0.12 | ≥0.30 | ±0.08 | ±0.035 | |||
| 0~3.0 | ≤0.15 | ≥0.50 | ±0.12 | ±0.05 | |||
| 0~4.0 | ≤0.25 | ≥0.60 | ±0.16 | ±0.07 | |||

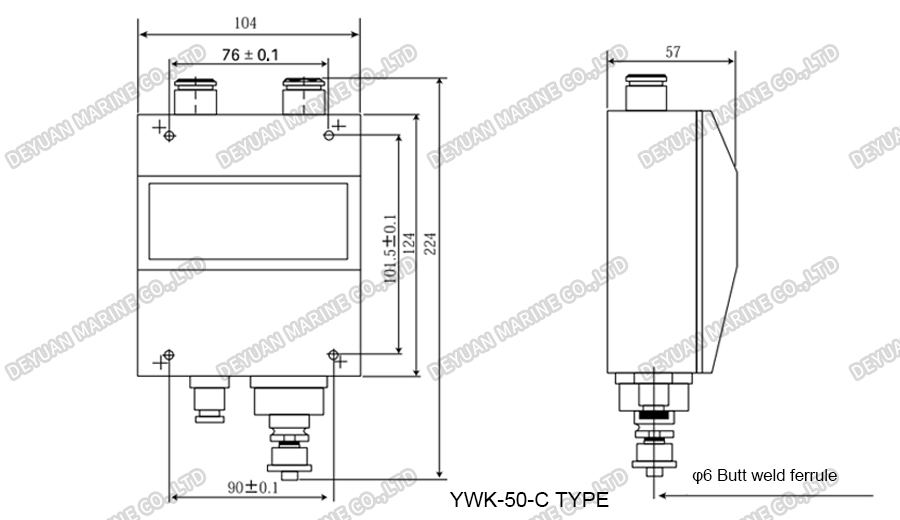

Outline Dimension:

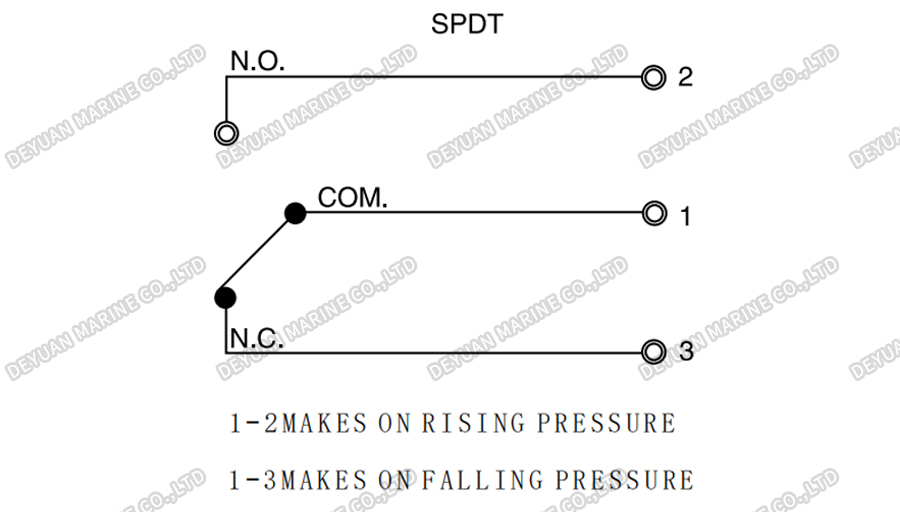

Wiring Diagram:
