Product Description
Special Pressure Gauges
Product Introduction:
Marine Special Pressure Gauges are precision-engineered pressure measuring instruments specifically designed to withstand the harsh and demanding conditions encountered in marine and offshore environments. Unlike standard industrial gauges, these gauges are built to resist continuous vibration, rolling and pitching motions, saltwater corrosion, extreme humidity, temperature fluctuations, and aggressive media such as fuel oil, lubricating oil, seawater, hydraulic fluids, and refrigerants.
These gauges are widely used on ocean-going vessels, tankers, container ships, bulk carriers, LNG/LPG carriers, offshore drilling platforms, dredgers, tugboats, and naval vessels. Typical applications include monitoring main engine cooling water, fuel oil supply, lubricating oil pressure, compressed air systems, fire main systems, hydraulic power units, ballast systems, and refrigeration plants.

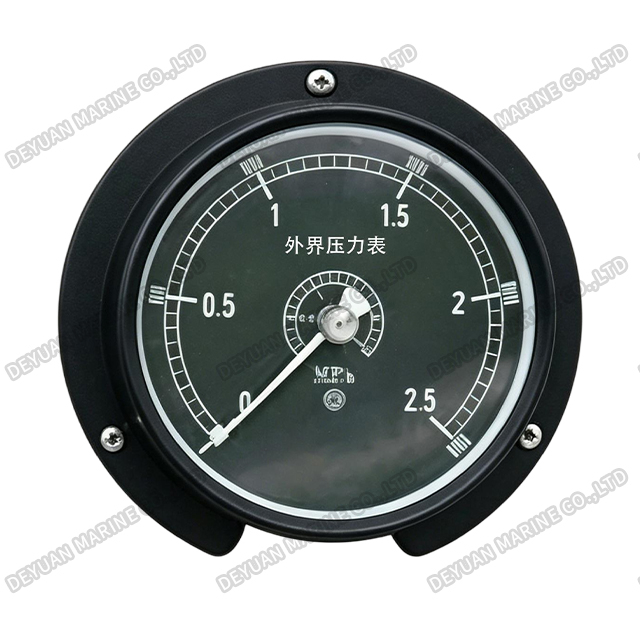

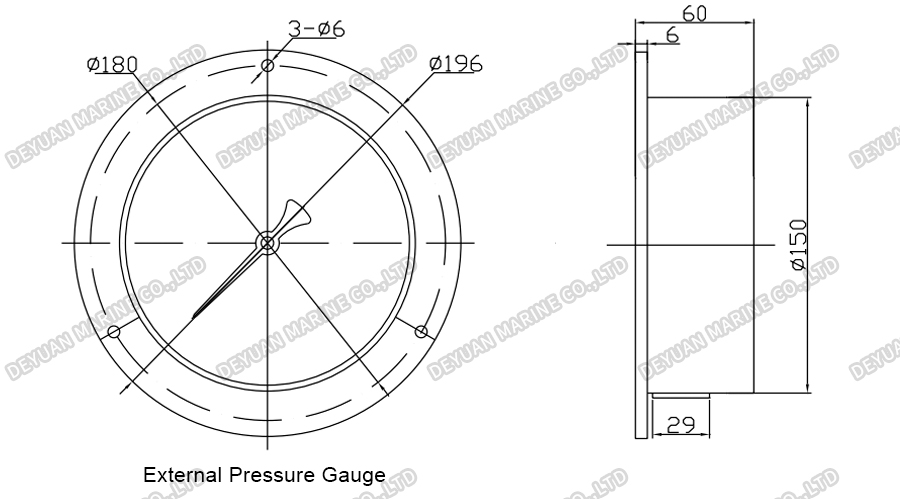

1.External Pressure Gauge:
| Model | YC-150W |
| Measure range | 0-1.6 0-2.5MPa |
| Accuracy | 1.6 |
| Dial dia | Φ150 |
| Application | measure external pressure for ships |

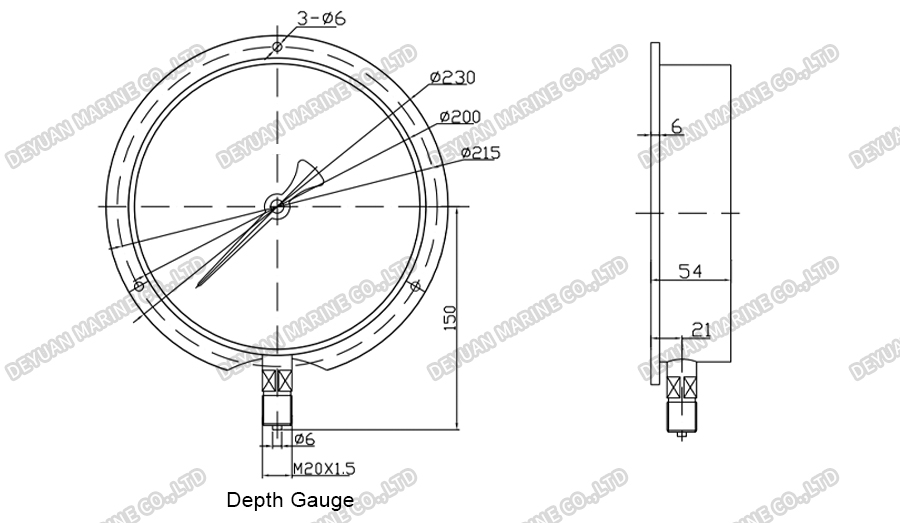

2.Depth Gauge：
| Model | YC-150S YC-200S |
| Measure range | 0-30~600m |
| Accuracy | 1.6 |
| Dial dia | Φ200 |
| Application | measure external depth for ships |

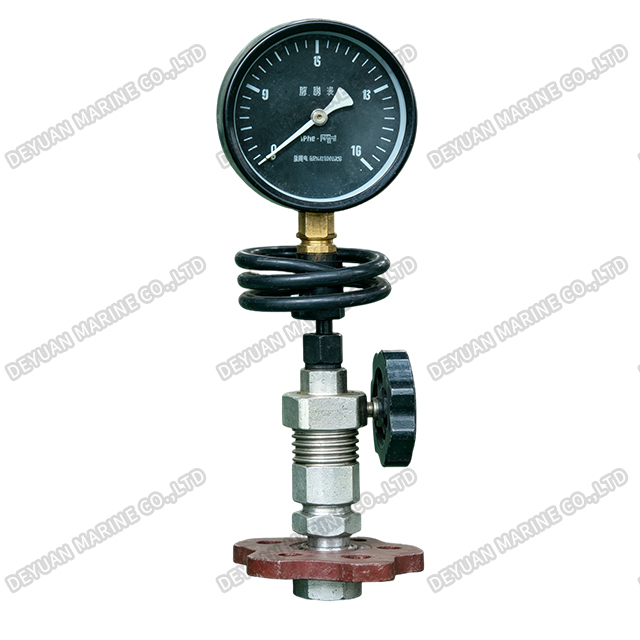

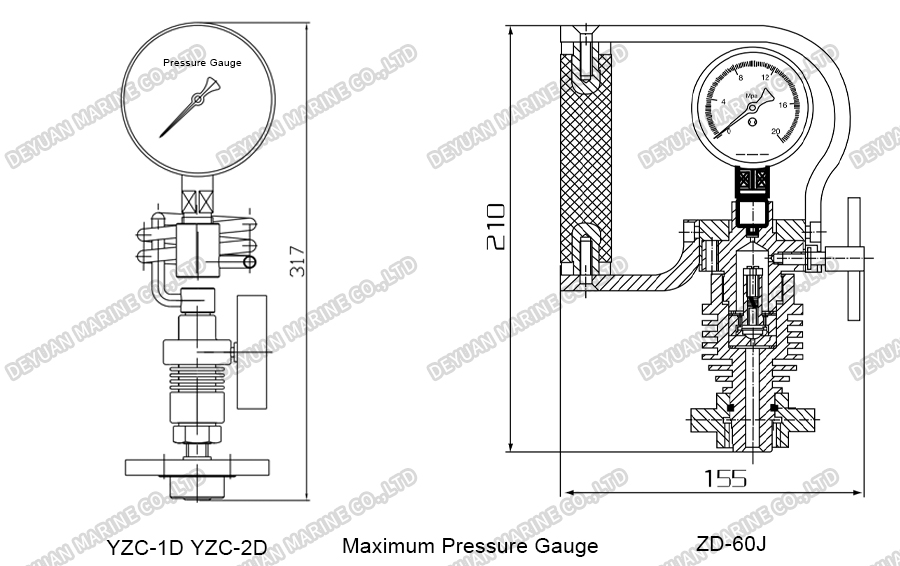

3.Maximum Pressure Gauge:
| Model | YZC-1D YZC-2D |
| Measure range | 0~20MPa、0~25MPa |
| Accuracy | 1.6、Range |
| Outline dimensions | Ф100X287、Ф100X390 |
| Connection | M27X2.5 |
| Application | measure max. explosion pressure of diesel engine |

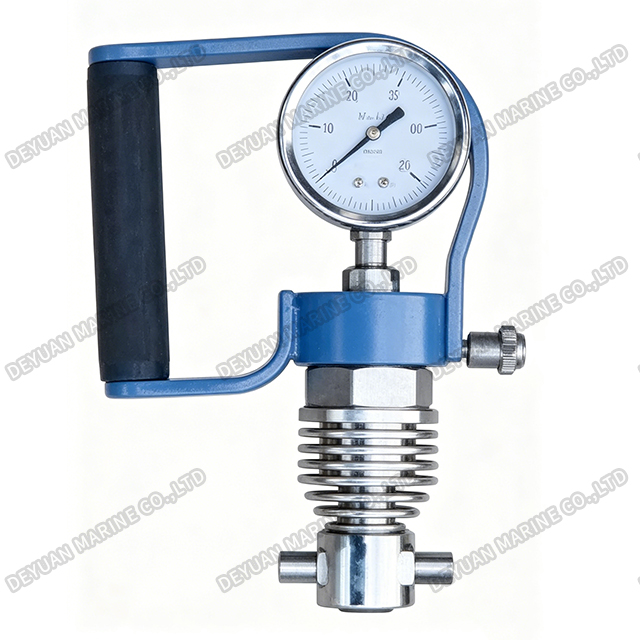

| Model | ZD-60J |
| Measure range | 0~10MPa、0~16MPa、0~25MPa |
| Accuracy | 2.5 |
| Outline dimensions | 155*110*82mm |
| Connection | M27X2.5 |
| Application | measure max. explosion pressure of diesel engine |

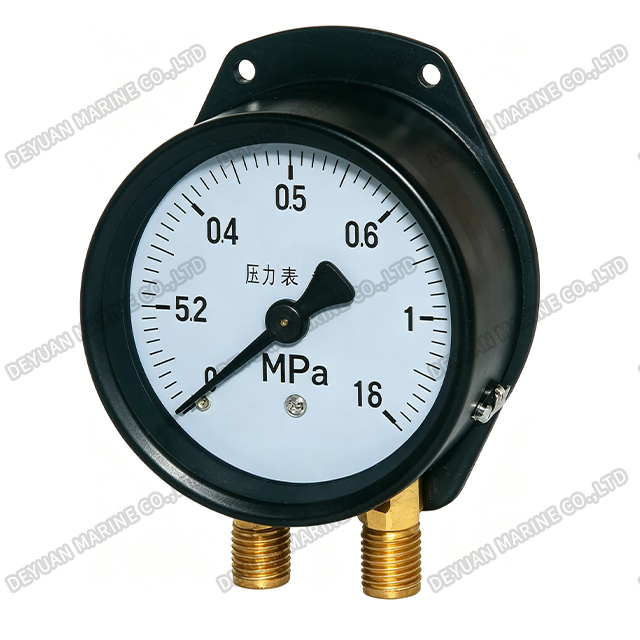

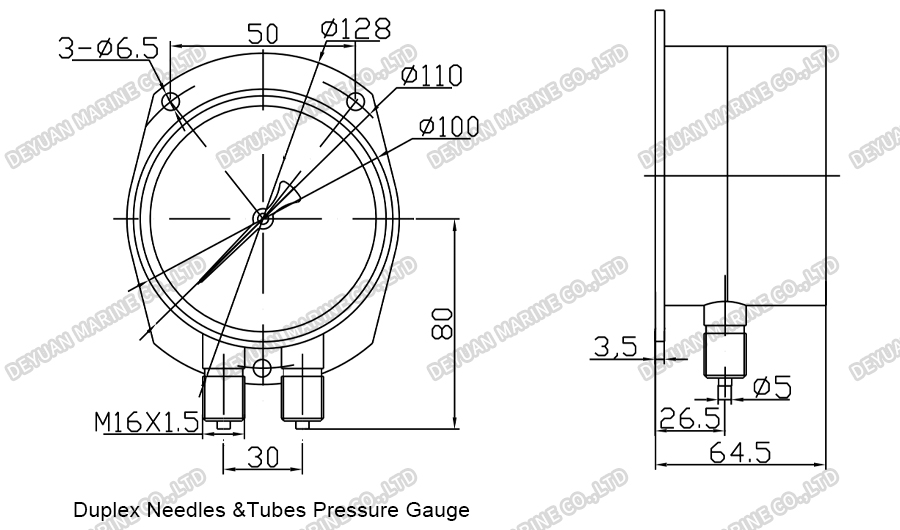

4.Duplex Needles &Tubes Pressure Gauge:
| Model | YZC-100S |
| Measure range | 0-1、0-1.2、0-1.6、0-2.5MPa |
| Accuracy | 1.6 |
| Dial dia. | Ф100 |
| Connection | M16X1.5 |
| Application | measure pressure and pressure error of two different pressure yields |
