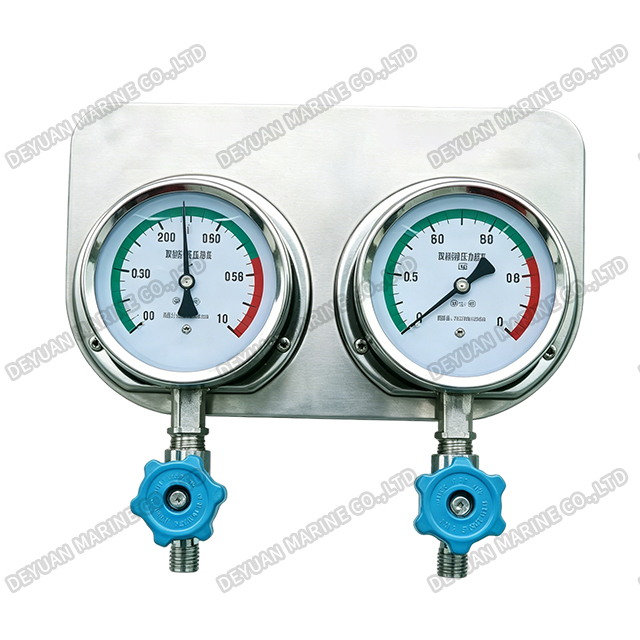

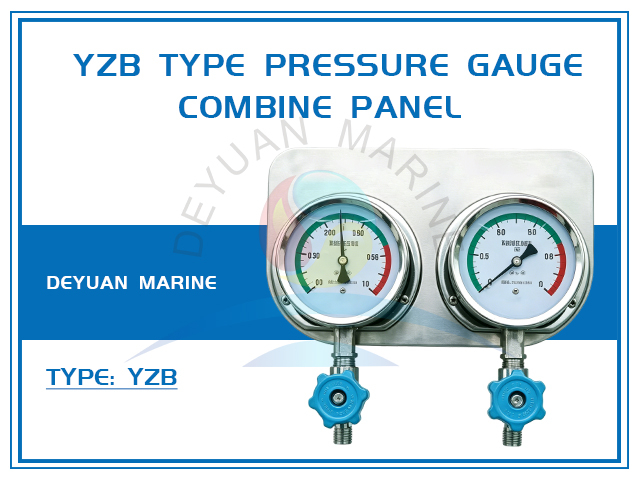

YZB Type Pressure Gauge Combine Panel
Product Introduction:
The Marine Pressure Gauge Combine Panel is a rugged, centralized pressure monitoring solution specifically designed for the demanding conditions of marine environments. It is widely used on ships, offshore platforms, tankers, cargo vessels, and marine engineering equipment to monitor critical system pressures such as fuel oil, lubricating oil, cooling water, compressed air, hydraulic power, and firefighting systems.

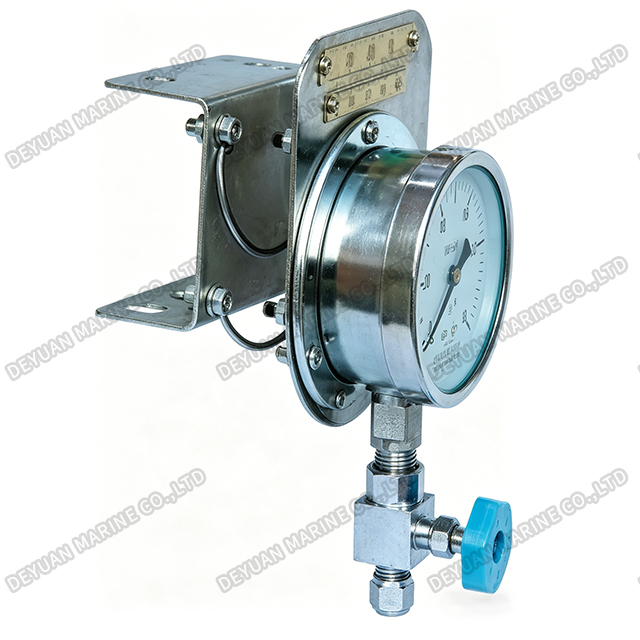

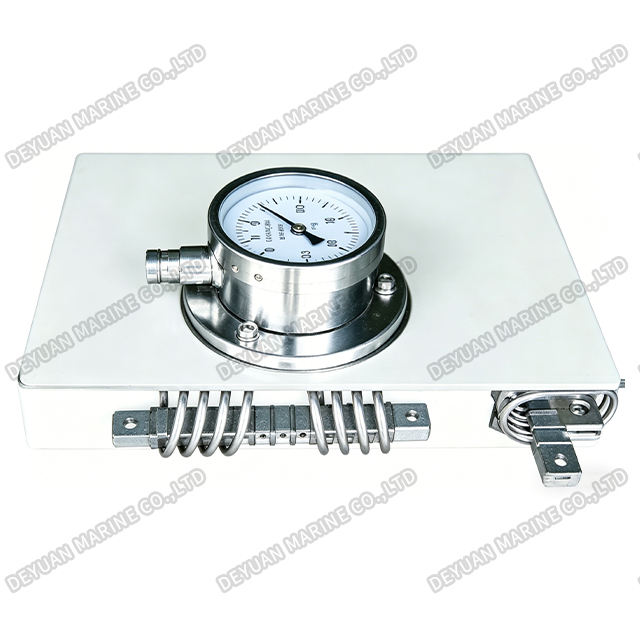

Unlike standard industrial panels, the marine version is built with corrosion-resistant materials (stainless steel or coated steel) and features enhanced protection against vibration, salt spray, humidity, and temperature fluctuations. The panel integrates multiple pressure gauges into a compact, space-saving arrangement, allowing engineers and bridge officers to monitor several pressure points at a single glance. Each gauge position can be equipped with individual shut-off valves, test cocks, or snubbers for safe maintenance and accurate readings.
Main Technical Specification:

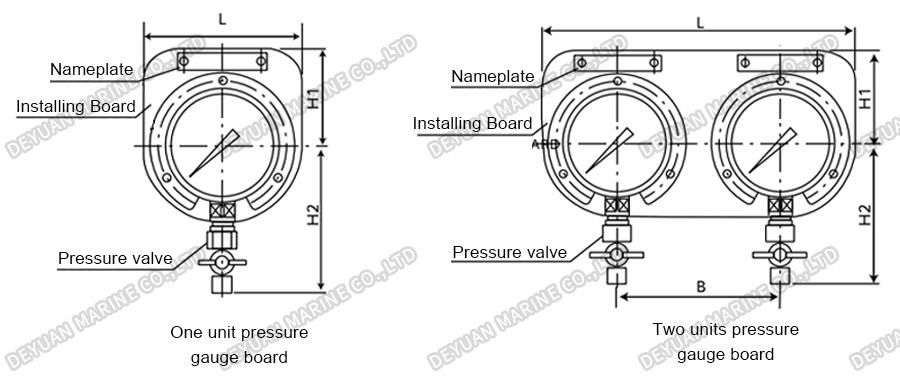

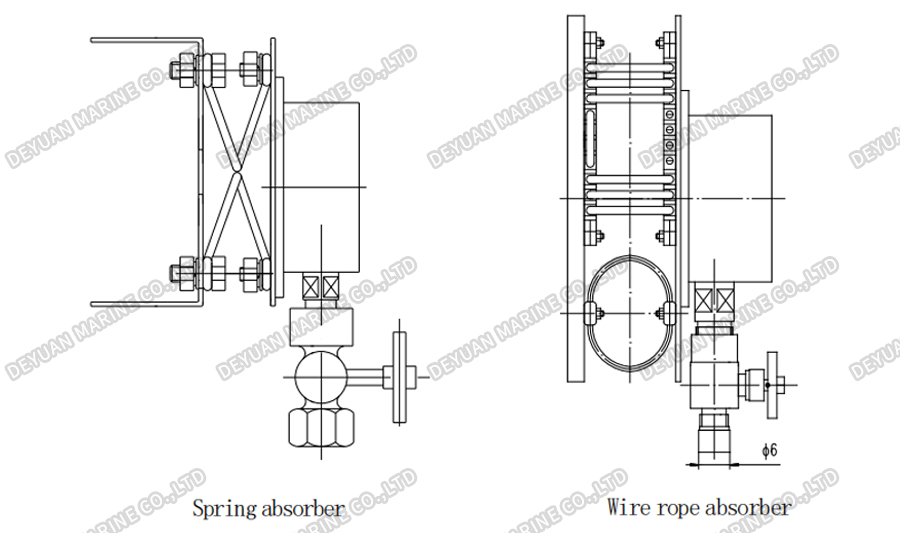

| Product Model | Dial diameter(mm) | L (mm) | H₁ (mm) | H₂ (mm) | B (mm) | Valve option | ||
| Code | Connection | Model and spec of valve | ||||||
| Single unit pressure gauge panel | Φ60 | 100 | 60 | 120 | - | A | M22X1.5 | CB/T312-2008 A40006 |
| Φ75 | 120 | 72 | 128 | - | ||||
| B | CB/T312-2008 B100006/B160006 | |||||||
| Φ100 | 145 | 85 | 140 | - | ||||
| Two units pressure gauge panel | Φ60 | 200 | 60 | 120 | 90 | C | Φ6 Ferrule | Card pin type Valve |
| Φ75 | 260 | 72 | 128 | 95 | ||||
| D | - | Valves of other models | ||||||
| Φ100 | 285 | 85 | 140 | 145 | ||||
