Product Description

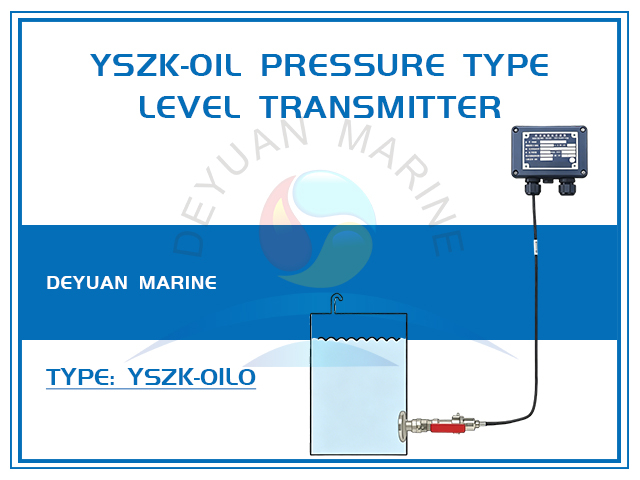

YSZK-01L Pressure Type Level Transmitter
Product Introduction:
Pressure type level transmitter consists of a transmitter, signal amplifier, etc. It is used for continuously measuring the liquid level of ballast tanks, draft and fuel oil tanks. The pressure type transmitter at the bottom of the liquid tank can timely sense the pressure change caused by height variation, and convert the liquid level height signal into a pressure-electric signal. The output signal is converted into a 4~20mA (2-wire) DC standard signal via the amplifier. The level signal is transmitted to the level indicator on the control panel through a safety barrier, while the tank level can also be displayed and controlled by the loading computer.
Main Technical Specification:
| Output | DC4~20mA(HART) |
| Accuracy | ±0.5%F.S. |
| Supply voltage | DC24V |
| Range | 0~40m |
| Diaphragm cell | Capacitive transmitter |
| Materials | Diaphragm：SUS316L or ceramic;Sensor body：SUS316L |
| Ambient temperature | -20~60℃ |
| Protection class | Transmitter：IP68/ submersible;Amplifier：IP66/ IP68 |
| Explosion proof | Ex ia Ⅱ CT4/T5/T6 Ga |
| Cable length | 3m in standard(option：up to 50m) |
Features:
*High measuring accuracy
*Excellent stability
*High over-load ability
*Digital remote adjustment
*Corrosion resistance
*No hysteresis
Application:
*Heeling and trim remote reading
*Draft remote reading
*Ballast tank remote reading
*Fuel oil tank remote reading
