Product Description
YSZK Type Pressure Transmitter
Product Introduction:
YSZK type pressure sensor consists of diffuse silicon pressure inductor and signal transform circuit, which have the characteristics of high measuring precision, dependable stability, small cubage, convenient installation. It is to measure pressure of kinds of medium of liquids, gas in ship and other industrial equipments.
Main Technical Specification:
| Power voltage | DC24V |
| Measuring accuracy | ±0.5 %FS |
| Working Temp. | -20~60℃ |
| Output signal | DC4~20mA(two wires HART) |
| Protection | IP66 |
| Over load | 2.5time of full range |
| Press connection size | M20X1.5、G1/4"、G1/2" |
| Explosionproof | Ex iaⅡT4/T5/T6Ga;Ex dⅡT4/T5/T6 Gb |
Measuring Range:
| Type | Measuring range(MPa) |
| Gauge type | -0.1~0.1、-0.1~0、0~0.10、0~0.16、0~0.25、0~0.40、0~0.60、0~1.0、0~1.6、0~2.5、0~4.0、 0~6.0、0~10、0~16、0~25、0~40、0~60 |
| Abs.type | 0~0.10、0~0.16、0~0.25、0~0.40、0~0.60、0~1.0、0~1.6、0~2.5、0~4.0、0~6.0、0~10、0~16、 0~25、0~40、0~60 |
| Seal type | 0~0.01、0~0.02、0~0.05、0~0.10、0~0.20、0~0.50、0~1.0、0~2.0 |

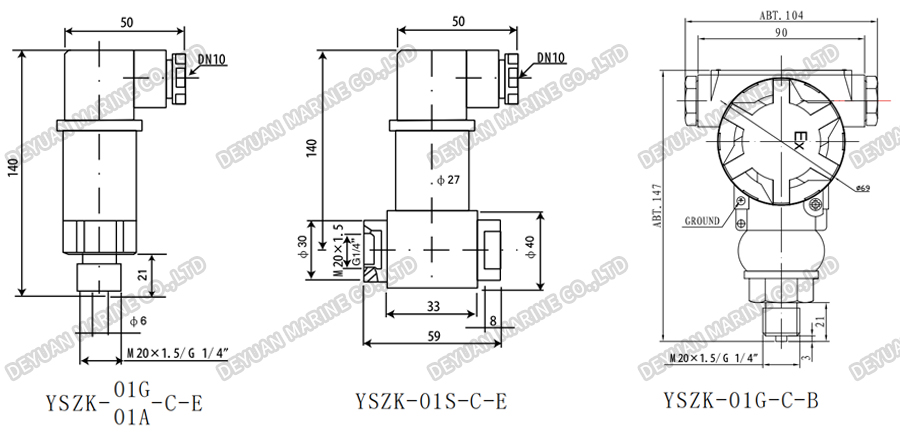

Outline Dimension:

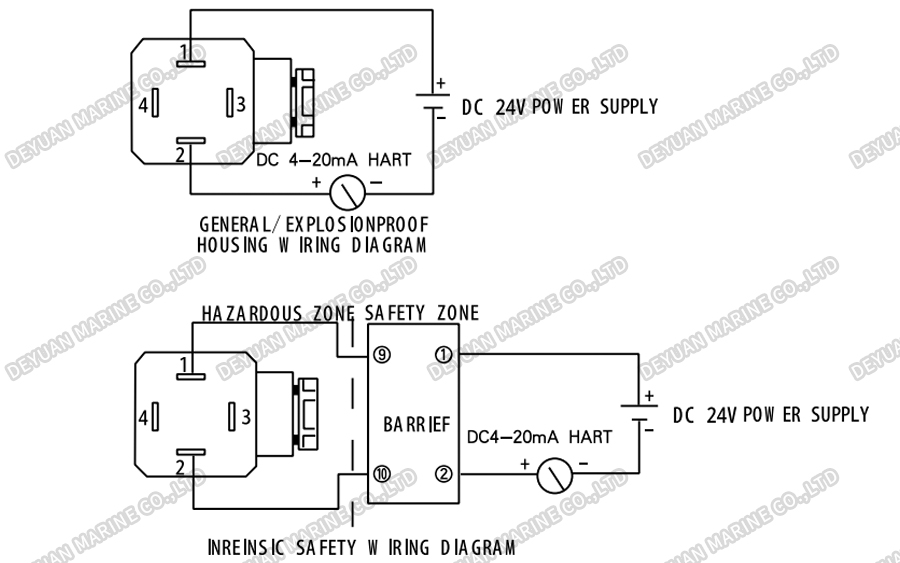

Wiring Diagram:
