Product Description

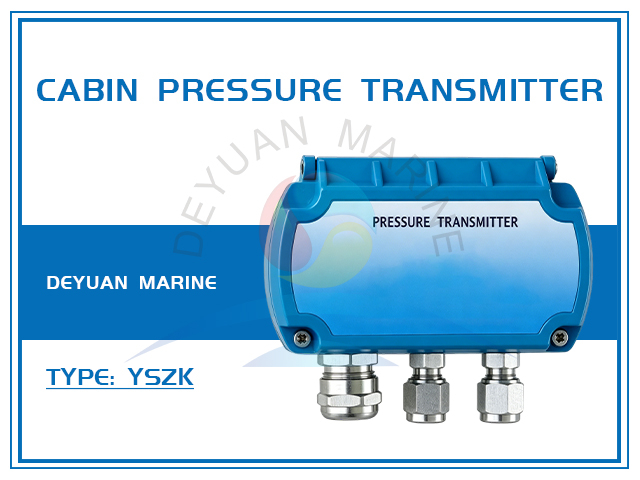

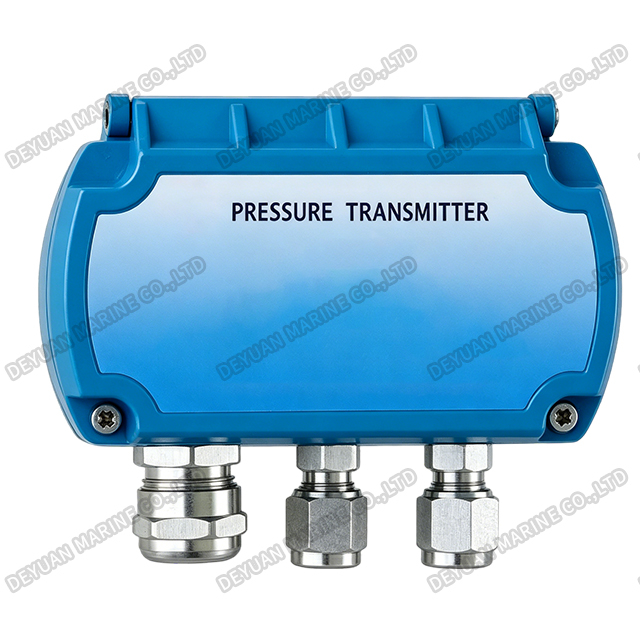

YSZK Type Cabin Pressure Transmitter
Product Introduction:
YSZK type cabin pressure transmitter adopts imported silicon piezoresistive pressure sensor chips, matched with a new digital compensation amplifier circuit and a robust cast aluminum housing. It features high precision, good stability, a wide scaling range, a high protection grade, etc. It is used for measuring micro-pressure in ship’s cabin pressure detection, boiler furnace negative pressure detection, air conditioning purification systems, fan flow rate measurement, industrial dedusting equipment, clean shops, textile machinery, leakage detection equipment and other industrial applications.
Main Technical Specification:
| Power voltage | DC24V |
| Measuring accuracy | ±1.0%F.S / ±0.5%F.SFS |
| Working Temp. | -20~60℃ |
| Output signal | 4~20mA(two wires)/ 1~5VDC |
| Protection grade | IP56 |
| Explosion proof mark | ExiaII CT4/T5/T6Ga |
| Max. overload capability | 3psi (20kPa) |
| Connection size | Φ6 stainless steel biting connector/ Φ8tower brass connection |
Measuring Range:
| Type | Measuring range(Pa) |
| One-way type | 0~50、0~100、0~250、0~500、0~1000、0~2500、0~5000 |
| Two-way type | -50~0~50、-100~0~100、-250~0~250、-500~0~500、-1000~0~1000、-2500~0~2500、-5000~0~5000 |

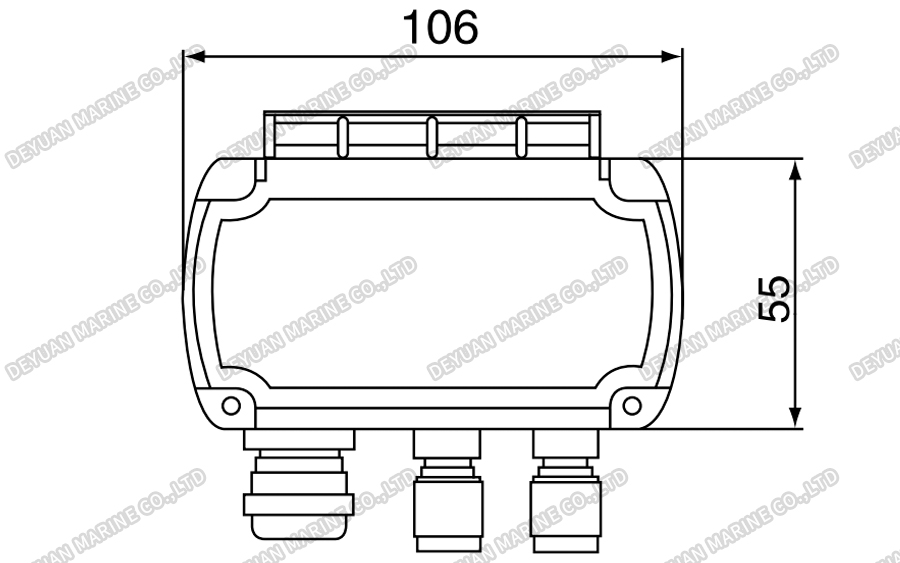

Outline Dimension:

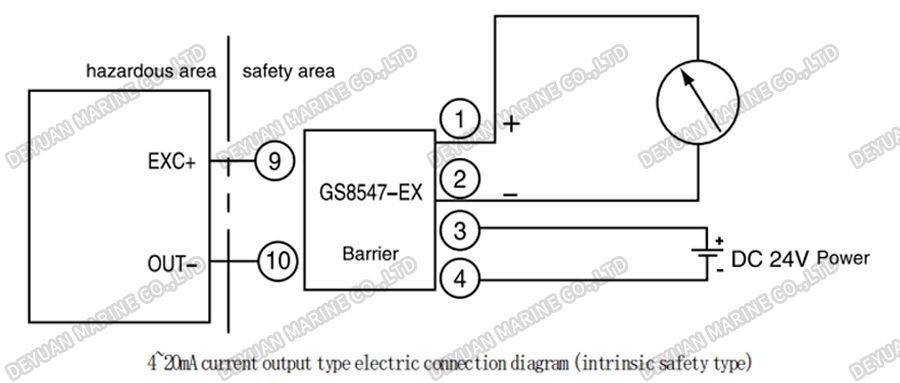

Wiring Diagram:
