Product Description

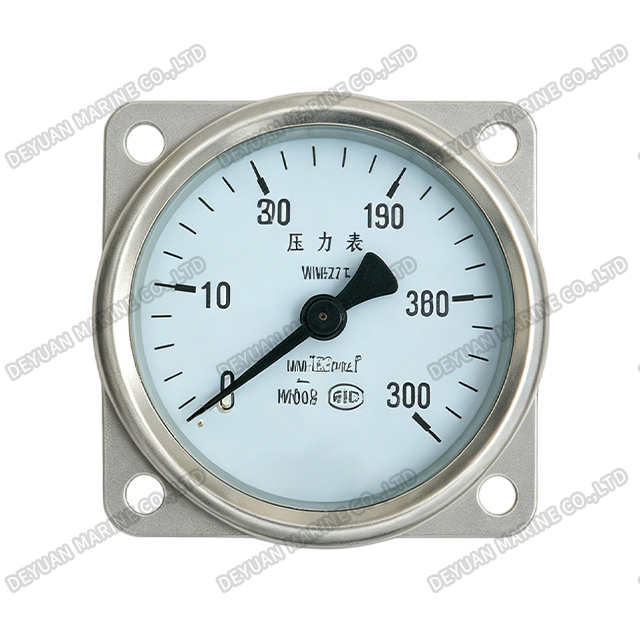

YC Type Pressure Gauge
Product Introduction:
The YC Type Pressure Gauge is a high-precision mechanical instrument designed for measuring pressure in non-corrosive, non-viscous fluids and gases. Built with durability and accuracy in mind, it is widely used in hydraulic systems, pneumatic equipment, pumps, compressors, and industrial machinery.
Pressure gauge that use metal spring elements as core is a locale measuring instrument, which accords with general ship technical specification. It can be used to measure pressure of gas and liquid etc. In ship and industrial equipment.
Main Technical Specification:
| Type and feature | Model code | Dial diameter (mm) | Measuring Range (MPa) | Accuracy | Connection thread | Material | |
| Radial no side type | I | 一 | 60 | 0-0.06 0~0.1 0-0.16 0~0.25 0~0.4 0~0.6 0~1 0~1.6 0~2.5 0~4 0~6 0~10 0~16 0~25 0~40 -0.1~0 -0.1~0.1 -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1~0.9 -0.1~1.5 -0.1~2.4 | 25 (Grade) | M14X1.5 G1/4” | Ferroalloy Aluminum alloy Stainless steel |
| Radial back side type | Ⅱ | T | |||||
| Axial no side type | IV | Z | |||||
| Axial front square type | 一 | ZF | M10X1 M14X1.5 | ||||
| Axial front side type | Ⅲ | ZT | |||||
| Radial cutted side type | Ⅱ | T | 75 | G 3/8” | |||
| Radial no side type | I | 一 | 100 | 1.6 (Grade) | M20X1.5 G1/2” | ||
| Radial back side type | Ⅱ | T | |||||
| Axial no side type | IV | Z | |||||
| Axial front side type | Ⅲ | ZT | |||||
| Axial back square type | 一 | TF | |||||
| Radial no side type | I | 一 | 150 | ||||
| Radial back side type | Ⅱ | T | |||||
| Radial no side type | I | 一 | 200 | ||||
| Radial back side type | Ⅱ | T | |||||

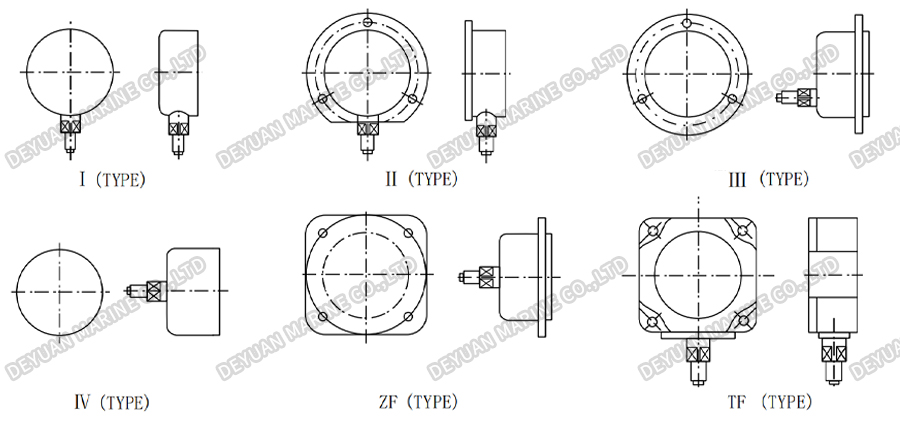

Type And Code:

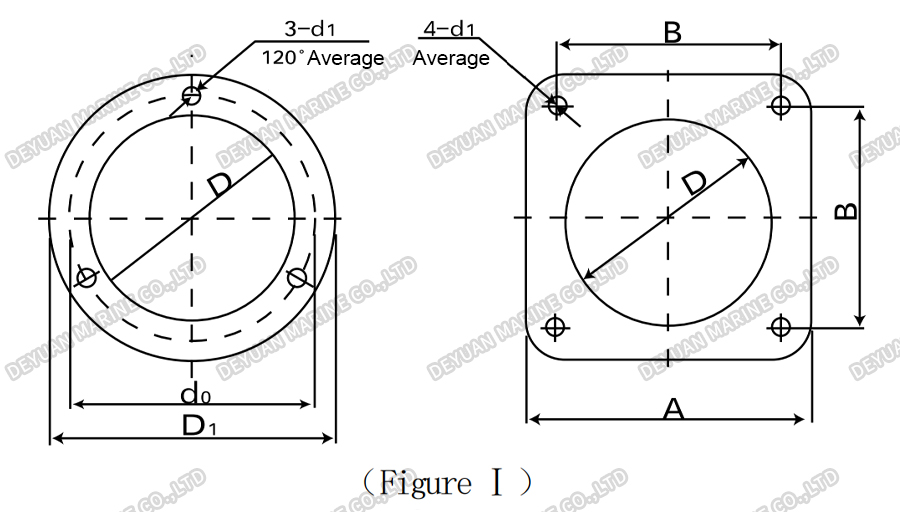

Pressure Gauge’s Mounting Dimension(Figure I Unit:mm):
| D | D₁ | A | B | d0 | d₁ |
| 60 | Φ85 | 64 | 48 | 72 | Φ5 |
| 75 | Φ98 | - | - | 88 | Φ4.5 |
| 100 | Φ130 | 102 | 80 | 118 | Φ6 |
| 150 | Φ180 | - | - | 165 | Φ6 |
| 200 | Φ230 | - | - | 215 | Φ6 |

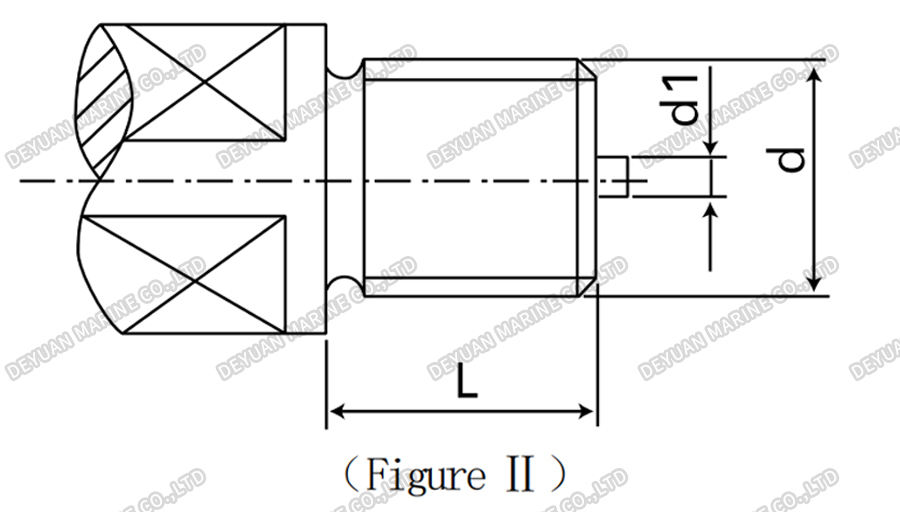

Pressure Gauge Connection Screw Thread Dimension List(Figure II):
| Dial nominal dia. D(mm) | Connection size | ||
| d | L(mm) | d₁ (mm) | |
| 60 | M10X1 | 10 | Φ4.5 |
| M14X1.5 | 14 | Φ5 | |
| 75 | G 3/8” | 16 | |
| 100 | M20X1.5 G 1/2” | 20 | Φ6 |
| 150 | |||
| 200 | |||
| Note:When have special requirements to the connection screw thread,please contact us。 | |||
