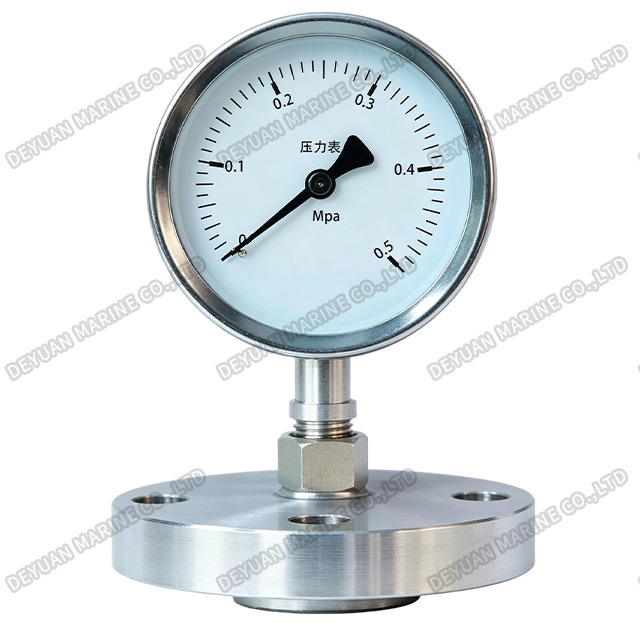

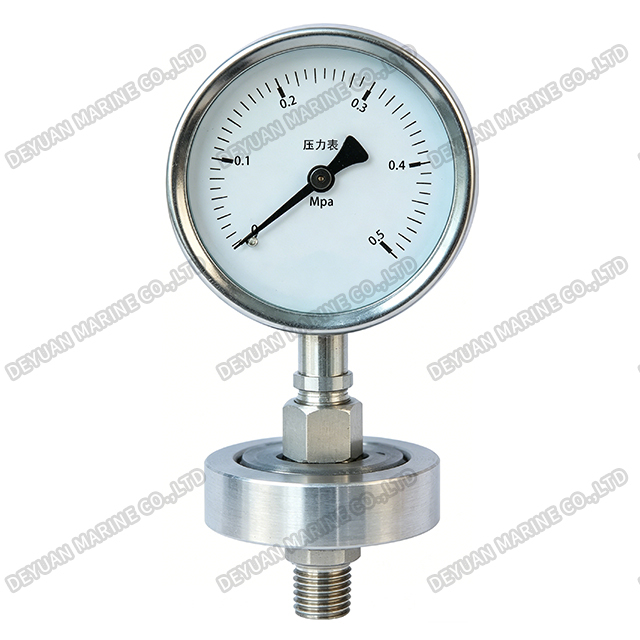

YC-M Type Diaphragm Sealed Pressure Gauge
Product Introduction:
The Marine Diaphragm Sealed Pressure Gauge is a specialized pressure measurement instrument engineered for the harsh and demanding conditions of marine and offshore environments. Unlike standard pressure gauges, this device incorporates a diaphragm seal isolation system that separates the pressure measuring element from the process media, making it ideally suited for applications involving high-viscosity, corrosive, crystallizing, or high-temperature fluids commonly found aboard ships and offshore platforms .
Main Technical Specification:
| Range | -0.1-0；0-0.1~60MPa |
| Accuracy | 1.6，2.5 |
| Mediumtemp. | ≤80℃ |
The Mounting Dimension:

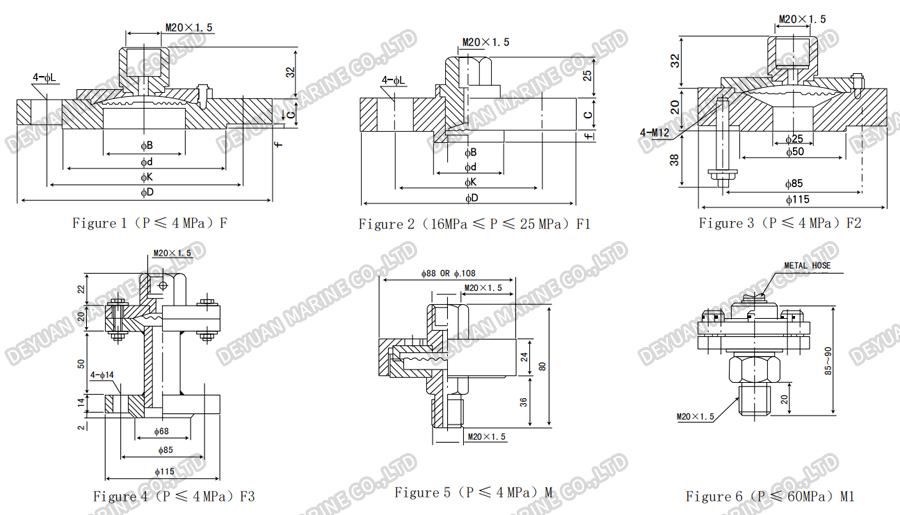

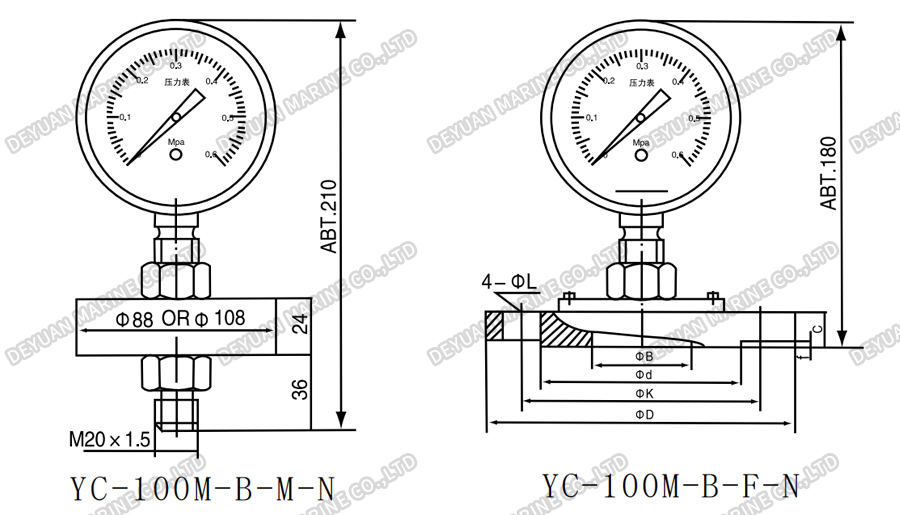

| Model | Upper limit | Flange standard | D | K | d | f | L | C | B | Drawing No. | Material |
| Threaded type | 4MPa | GB2506-2005 | 185 | 145 | 122 | 3 | 18 | 20 | 65 | Figure 5-6 | SUS304 SUS316 |
| Flanged type | 6~10MPa | 165 | 125 | 102 | 3 | 18 | 20 | 50 | Figure 1-4 | ||
| 16~25MPa | 115 | 85 | 68 | 2 | 14 | 18 | 25 |
