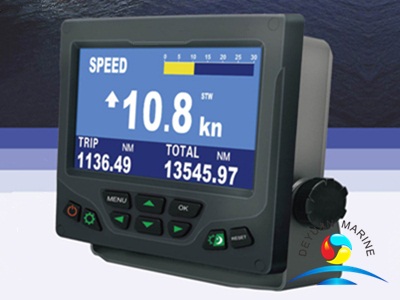

Doppler Speedlog

  • DEYUAN MARINE

Product Description

Doppler Speedlog
*high performance supersonic signal filter
*stainless steel transceiver cabinet
*pair-beam system reduces error caused by pitching*Speed/distance information on the adjustable-brightness LCD display
Doppler Speedlog
Item Specification
Display LCD 7inch TFT 480x234pixels
STW Speed Arrow+Digital Speed Display
Data Output IEC 61162-1 VBW,VLW
Trip Counter Measurement from 0 to 9999.99NM
Total counter Measurement from 0 to 9999.99NM
Distance Accuracy 0.2NM or 2%,whichever is greater
Speed Accuracy 0.2NM or 2%,whichever is greater
Speed range -10~+40kn
Power Supply AC110/220V 50/60HZ
Operating Temp -15 to +55℃,0 to+40℃ recommended
Humidity When 40±3℃,93%±2% relative
Compass safe distan Displayer STD 1.08m STEER0.45M
Controller STD1.32M,STEER 0.84M
PROTECTION Displayer IP23 Controller IP23
Transceiver IP56
