Product Description

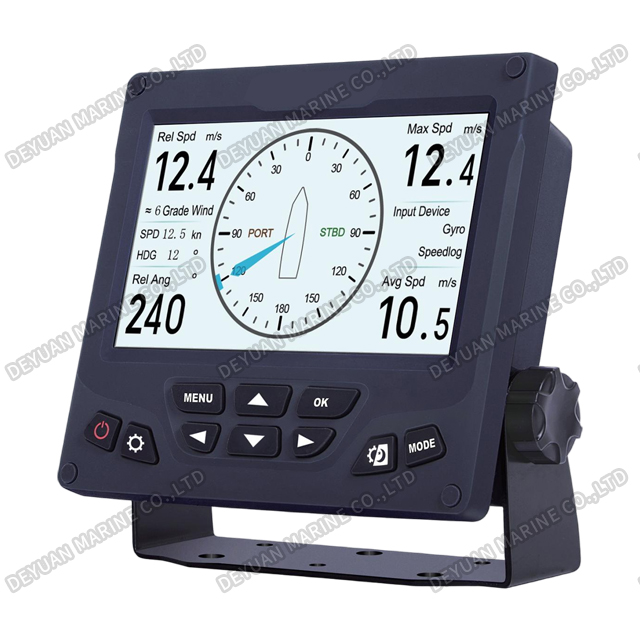

7 Inch Ultrasonic Anemometer
Product introduction

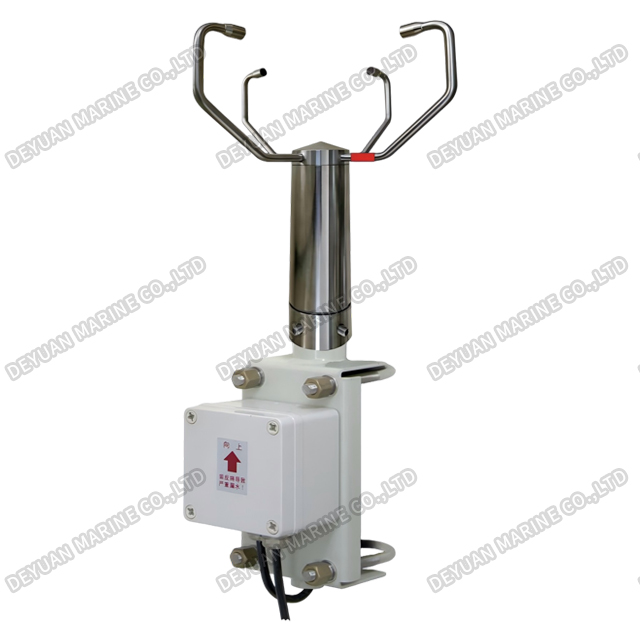

The Marine 7-Inch Ultrasonic Anemometer, Model AM706, represents a technological leap in wind sensing for maritime applications. Solid and durable shell design, easy to install,all-weather measurement,Two pairs of ultrasonic sensors accurately measure wind speed and direction with high sensitivity,360°no blind spot measurement, low temperature automatic heating,not affected by the bad weather,No mechanical maintenance, high reliability,By utilizing advanced ultrasonic measurement principles, it eliminates all moving parts, providing exceptionally reliable, maintenance-free, and accurate wind data essential for navigation safety, dynamic positioning (DP), and operational efficiency.
Technical Data
| AM706 Performance parameter | |
| ltem | Specification |
| Display | 7 inch TFT 800×480 pixels |
| Power Supply | DC24V/AC100～240V |
| Wind Range | 0～359° |
| Direction Accuracy | ±1° |
| Speed Accuracy | ±5%(Min0.1 m/s) |
| Speed Range | 0～70m/s |
| Data Input | NMEA0183(RMC / HDT / VBW) |
| Data Output | NMEA0183(MWV / MDA) |
| Humidity | 10～90%Relative |
| Storage Temperature | Display:-20～+55℃ Sensor:-40～+85℃ |
| Operating Temperature | Display:-15～+55℃ Sensor:-40～+85℃ |
| Protection | Display:IP23 Sensor:IP67 |

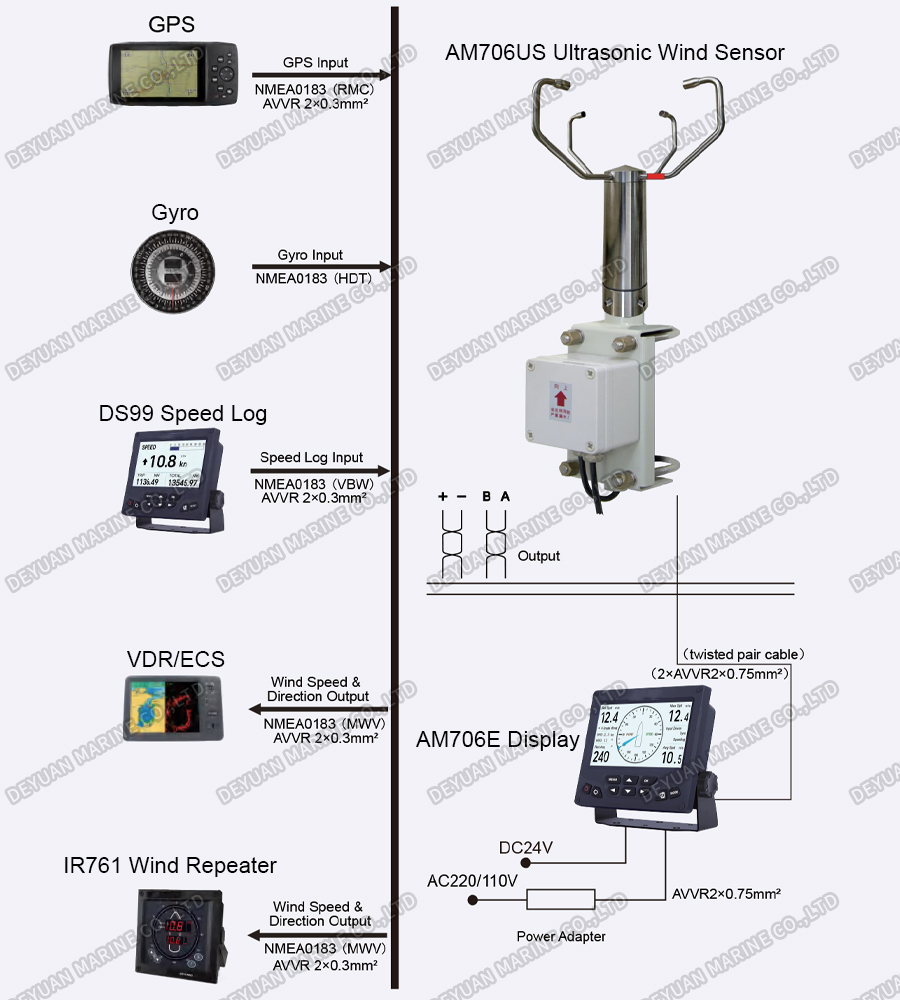

System diagram
Installation dimensions
For more information on navigation lights, pls contact us.
