Product Description

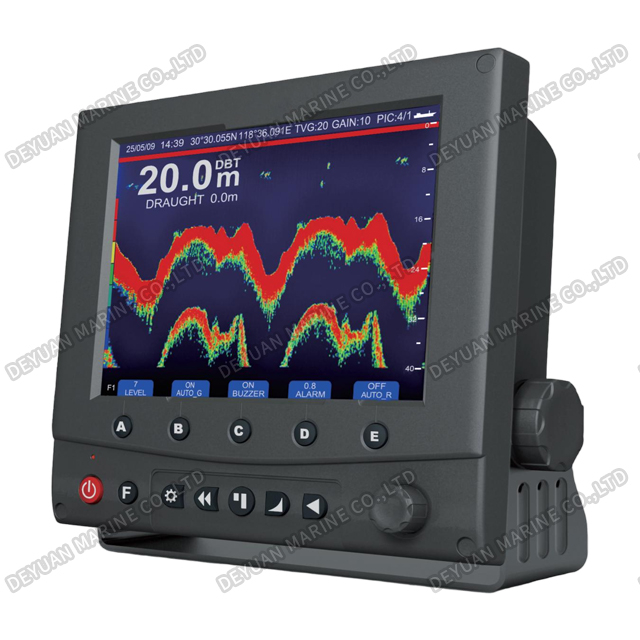

10 Inch TFT Navigation Sounder
Product introduction
The DS2008 is a professional-grade marine navigation echo sounder designed for reliable and precise depth measurement and seabed profiling. Advanced ultrasonic signal processing,Auto-gain & auto-range available,48h data-log, and log playback,Single / dual-channel selectable, single / dual-frequency selectable.It combines a high-resolution 10inch color TFT display with robust performance features, making it a critical navigation and safety tool for commercial and professional vessels.
Technical Data
| DS2008 Performance parameter | |
| ltem | Specification |
| Display | 10 inch TFT 800×600 pixels |
| Power Supply | DC24V/AC100～240V |
| Power Output | 500W |
| Depth Range | 0～500/800m |
| Accuracy | ±1.0%of range |
| Optional Configuration | Single-channel:200kHz Single-channel:50kHz Dual-channel :200+200kHz Dual-channel :200+50kHz |
| Data Input | GPS(GGA) |
| Data Output | NMEA0183(DPT/DBT) |
| Temperature | -15～+55℃ |
| Display | IP23 |
| Transducer | IP68 |

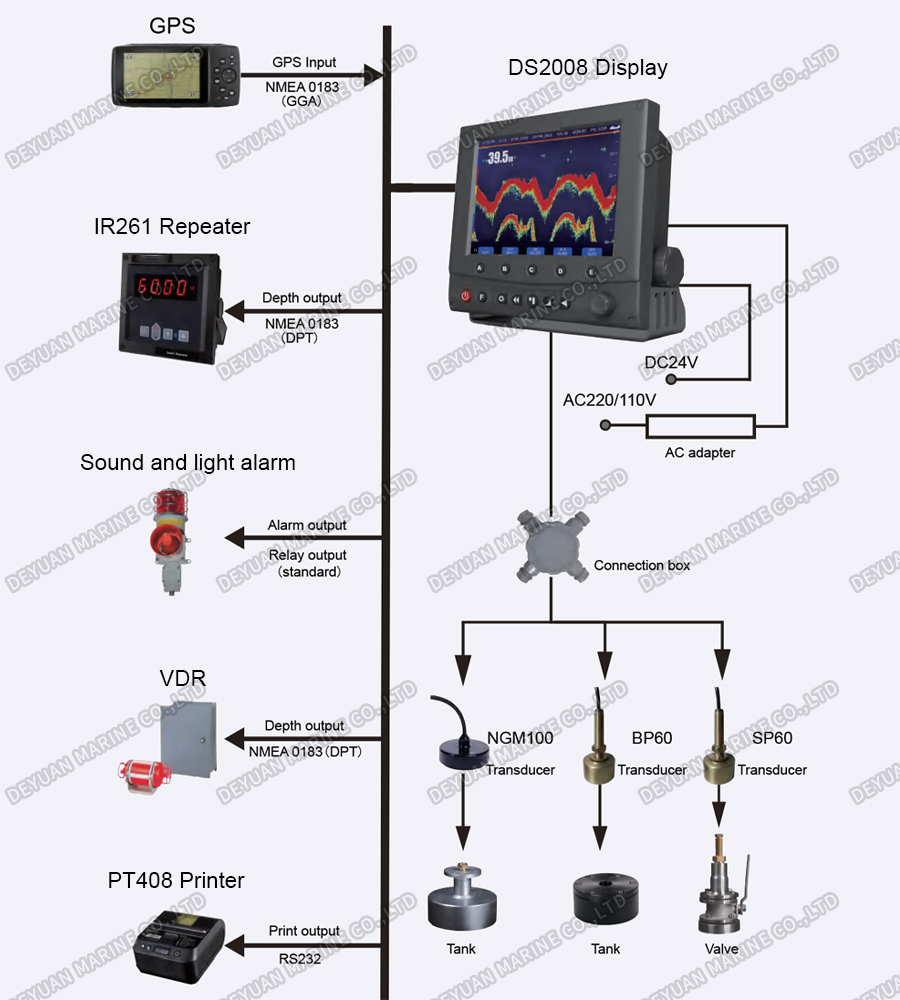

System diagram

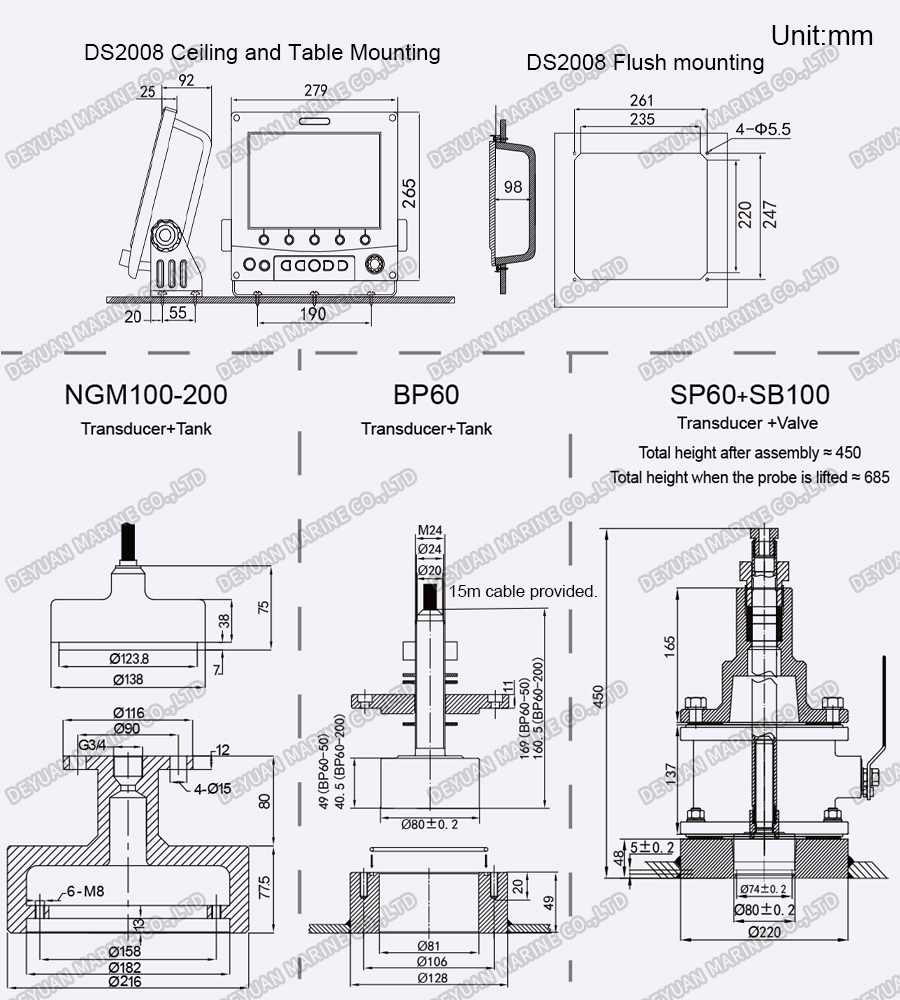

Installation dimensions
