Product Description

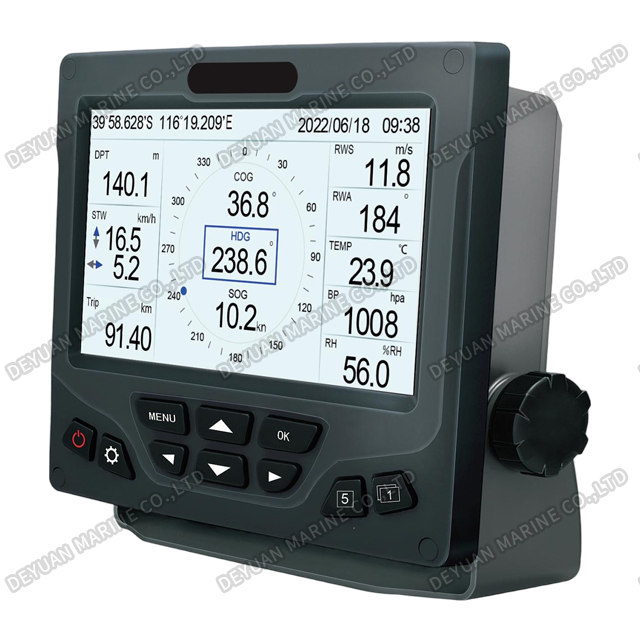

5-Channel Multifunction Repeater with 7-Inch TFT Display
Product introduction
The NM501 is a versatile and compact 7-inch TFT (Thin-Film Transistor) Multi function Repeater, designed to enhance bridge situational awareness by consolidating and displaying critical navigational data from multiple sensors and systems in a single, customizable display unit. 5 channels repeater only one cable is needed,repeaters in 1 mode and single repeater mode,NM501 remote controller,5ch navigation data NMEA0183 inputs.It serves as a vital secondary or auxiliary display station, ensuring key information is visible at various strategic locations on the bridge, such as bridge wings or conning stations, for safe and efficient vessel operation.
Technical Data
| NM501 Performance parameter | ||
| ltem | Specification | |
| Display | 7 inch TFT 800×480 pixels | |
| Power Supply | DC24V | |
| Alarm Types | Wind Alarm /Shallow Alarm | |
| Alarm Mode | Flashing /Buzzer(swithable) | |
| Data Input | NMEA0183(HDT/DBT/MWV/VBWI VLW/RMC) | |
| Humidity | 10～90%Relative | |
| Storage Temperature | -20～+55℃ | |
| Operating Temperature | -15～+55℃ | |
| Protection | IP23 | |

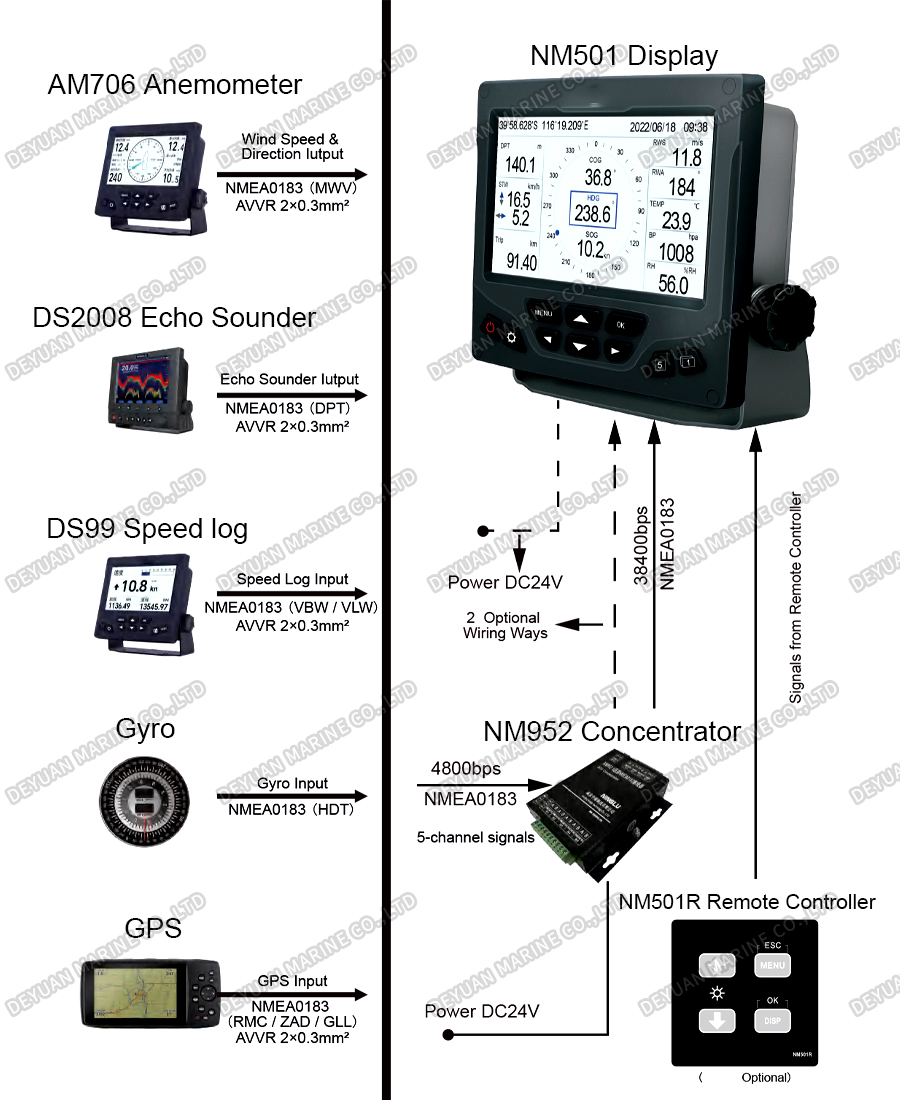

System diagram

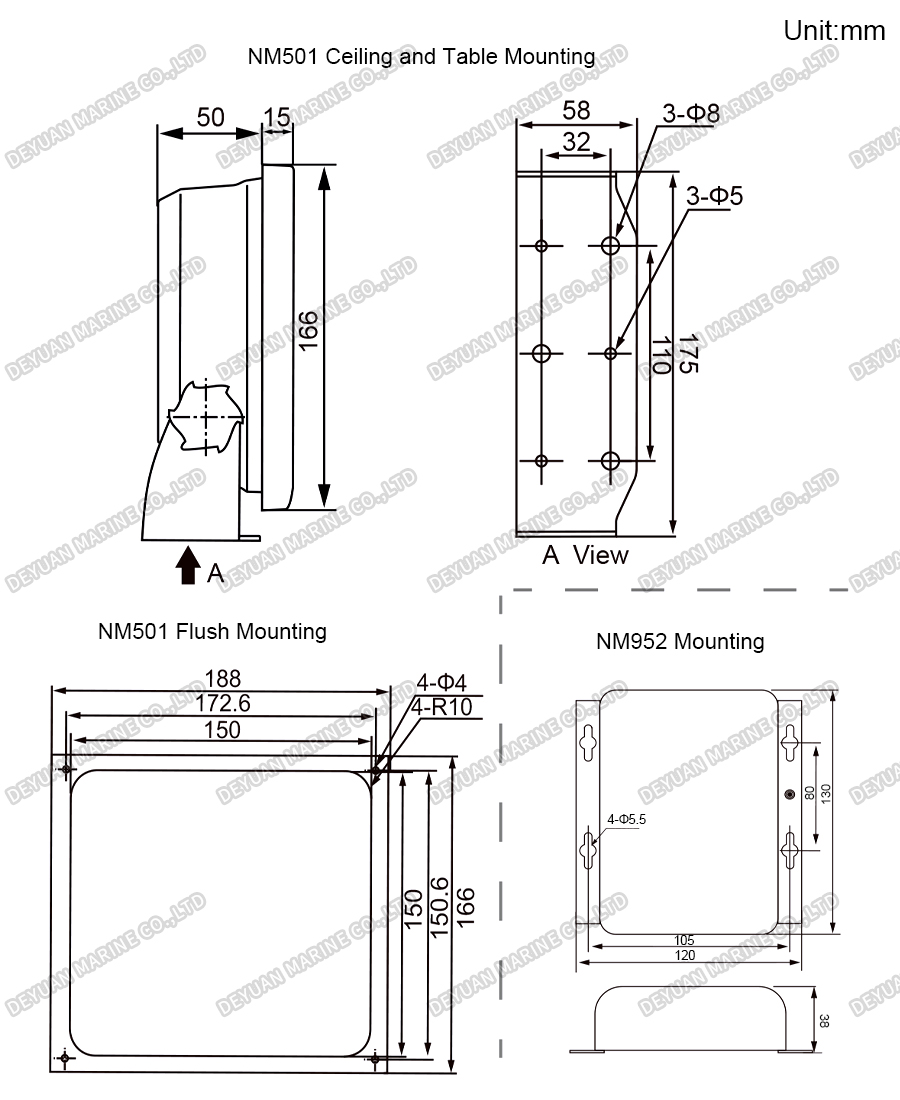

Installation dimensions
