Product Description

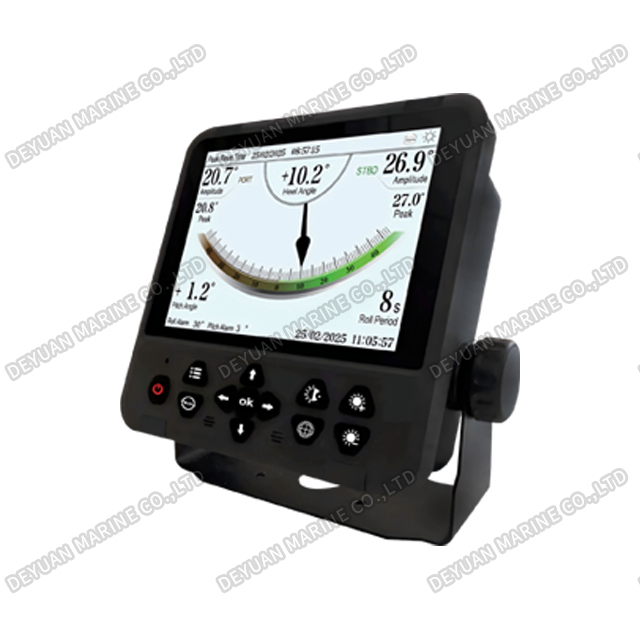

8 Inch TFT Electronic Inclinometer
Product Introduction
*High precision / Shock resistance sensor
*Roll & pitch angle monitor simutaneously
*Digital & analog roll angle display
*Optional Paper record, Easy to view ship's historical attitude
Technical Data
| El330 Performance parameter | |
| ltem | Specification |
| Display | 8 inch TFT 800×600 pixels |
| Power Supply | DC24V/AC100～240V |
| Roll /Pitch Angle Range | -90～+90° |
| Roll /Pitch Angle Accuracy | ±0.1° |
| Roll Amplitude Range | 0～+90° |
| Roll Amplitude Accuracy | ±0.1° |
| Roll Period Range | 4～40s |
| Roll Period Accuracy | 1s |
| Alarm Mode | Roll Alarm /Sensor Failure / Power Failure Alarm |
| Data Output | NMEA0183(HRM/POS/ALC/ALF/HBT) |
| Operating Temperature | -15～+55℃ |
| Display | IP23 |
| Sensor | IP67 |

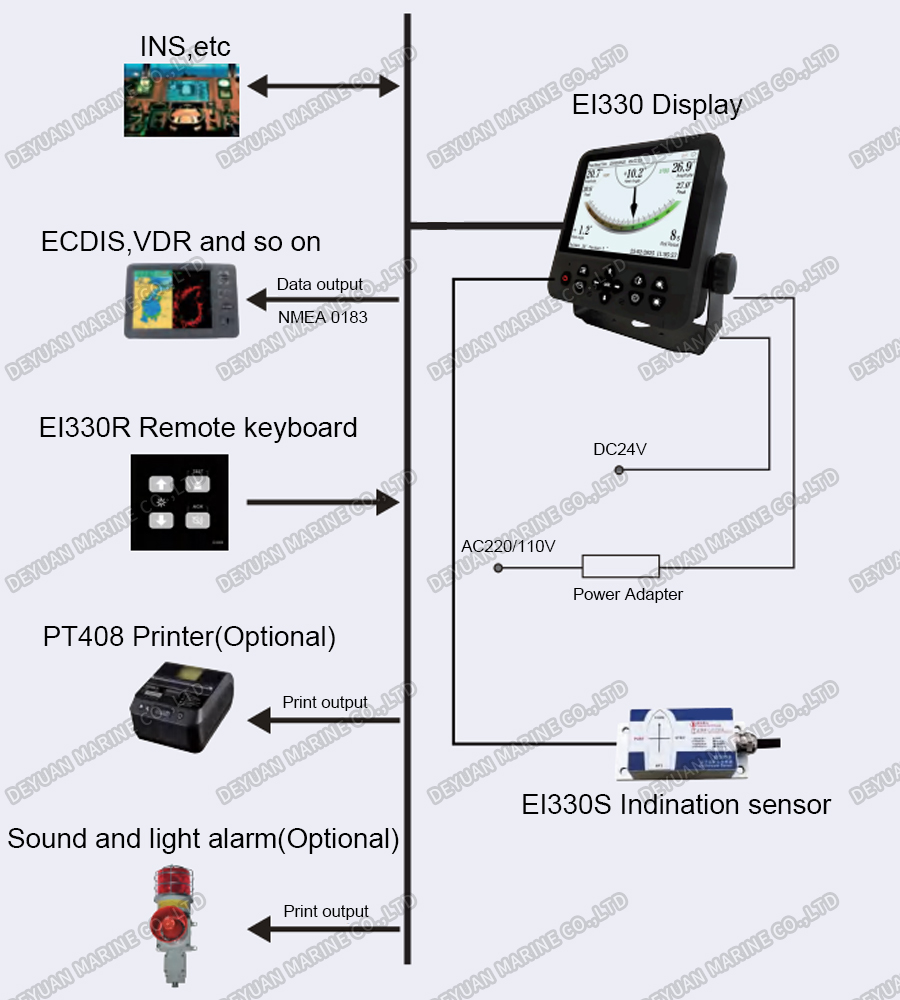

System Diagram

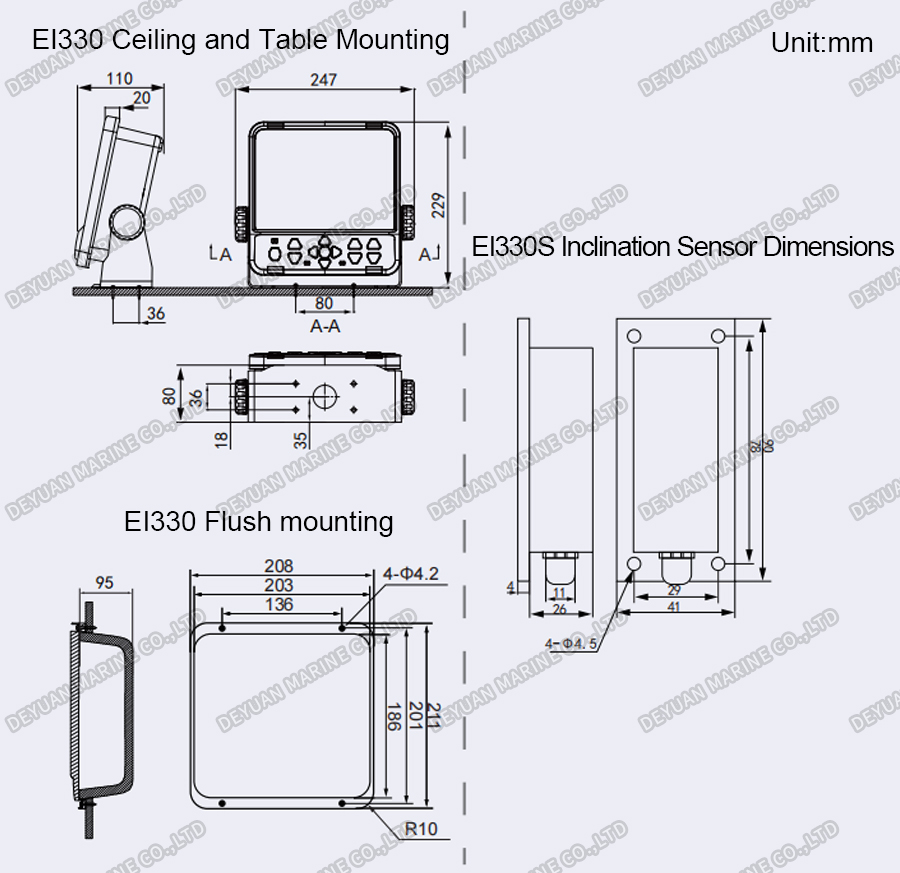

Installation Dimensions
