7 Inch TFT High Resolution Anemometer
Product introduction:
The Marine 7-Inch TFT Anemometer, Model AM706, is a professional-grade instrument engineered to provide accurate, real-time measurements of wind speed and direction. It is an indispensable tool for navigation, maneuvering, and operational planning across various vessels, from commercial ships to sailing yachts.

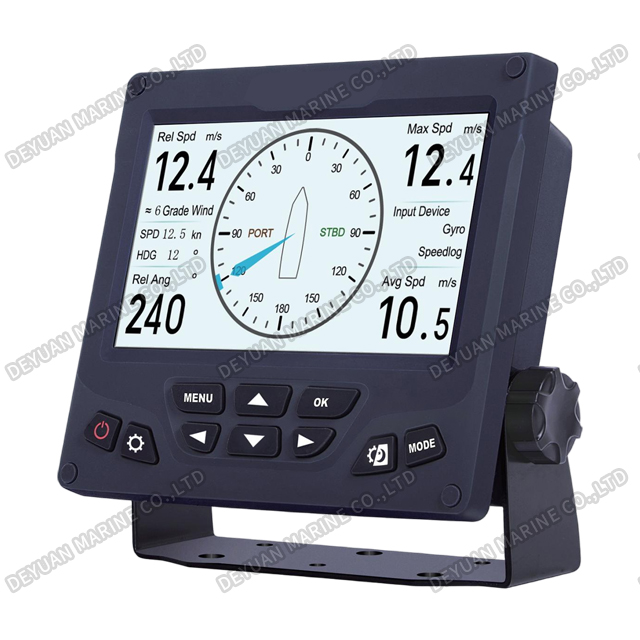

The system features a robust sensor unit installed where wind flows freely, connected to a bright 7-inch TFT display unit on the bridge. Designed to withstand harsh marine conditions, it delivers reliable environmental data critical for safe passage and voyage optimization.
Technical Data:
| AM706 Performance parameter | |
| ltem | Specification |
| Display | 7 inch TFT 800×480 pixels |
| Power Supply | DC24VI AC100～240V |
| Wind Range | 0～359° |
| Direction Accuracy | ±1° |
| Speed Accuracy | 0.1m/s |
| Speed Range | 0～70m/s |
| Startup Wind Speed | ≤1.2m/s |
| Data Input | NMEA0183(RMC/HDT/VBW) |
| Data Output | NMEA0183(MWV) |
| Humidity | 10～90%Relative |
| Storage Temperature | Display:-20～+55℃ Sensor:-20～+85℃ |
| Operating Temperature | Display:-15～+55℃ Sensor:-15～+85℃ |
| Protection | Display:IP23 Sensor:IP56 |

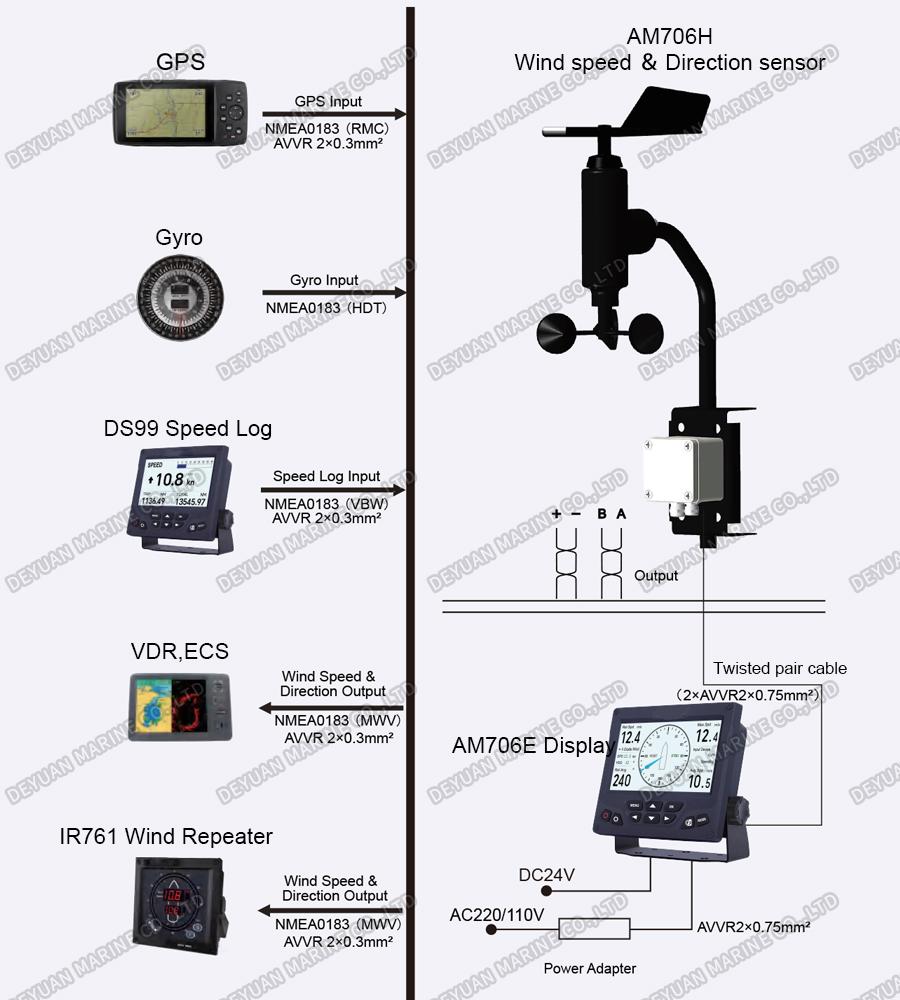

System diagram:

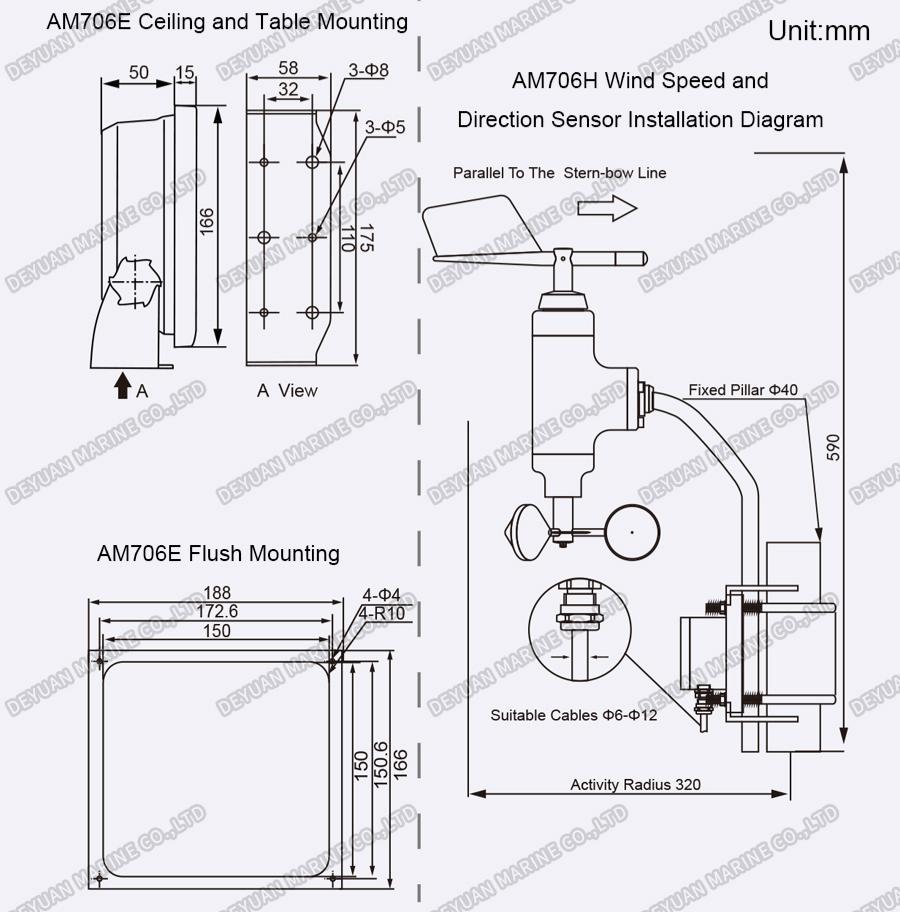

Installation dimensions:
