Product Description

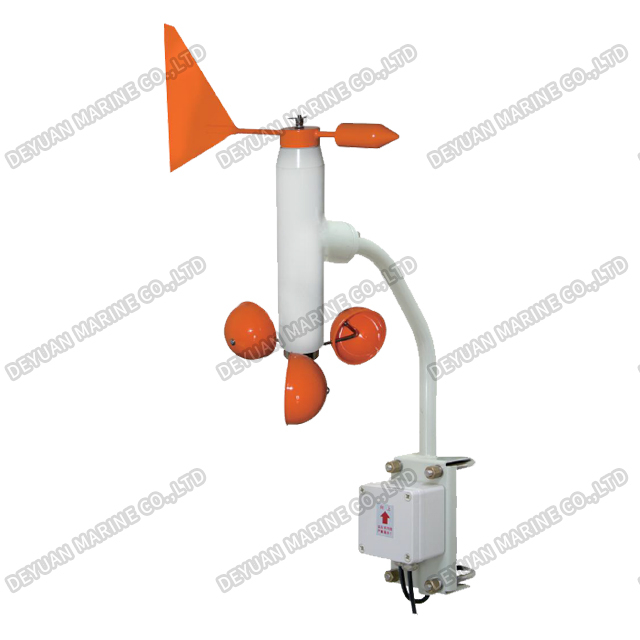

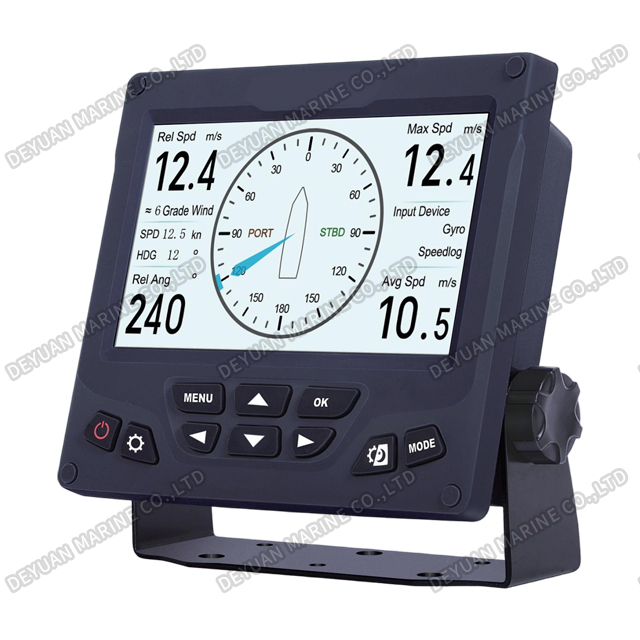

7 Inch TFT Marine Anemometer
Product introduction
The Marine 7-Inch TFT Anemometer, Model AM706 E+S is a professional-grade instrument designed to deliver accurate, High resolution wind speed (0.1m/s)& direction（1°）anemometer,Temperature resistant & moisture proof mechanic design & Salt proof,Digital & analog display,real-time wind speed and direction data essential for safe and efficient vessel operation. Featuring a clear 7-inch TFT display and robust sensor technology, it provides crew with critical environmental awareness for navigation, maneuvering, and operational planning.
Technical Data
| AM706 Performance parameter | |
| ltem | Specification |
| Display | 7 inch TFT 800×480 pixels |
| Power Supply | DC24V/AC100～240V |
| Wind Range | 0～359° |
| Direction Accuracy | ±1° |
| Speed Accuracy | 0.1m/s |
| Speed Range | 0～70m/s |
| Startup Wind Speed | ≤1.2m/s |
| Data Input | NMEA0183(RMC/HDT/VBW) |
| Data Output | NMEA0183(MWV) |
| Humidity | 10～90%Relative |
| Storage Temperature | Display:-20～+55℃ Sensor:-20～+85℃ |
| Operating Temperature | Display:-15～+55℃ Sensor:-15～+85℃ |
| Protection | Display:IP23 Sensor:IP56 |

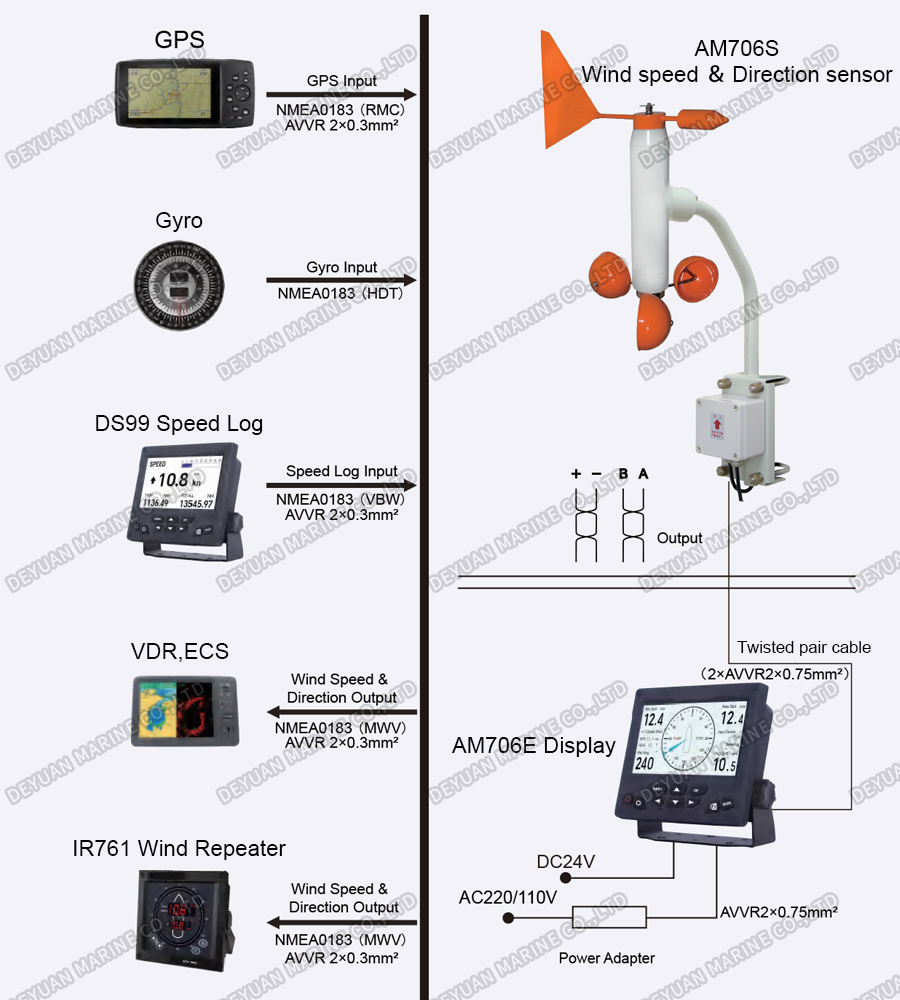

System diagram

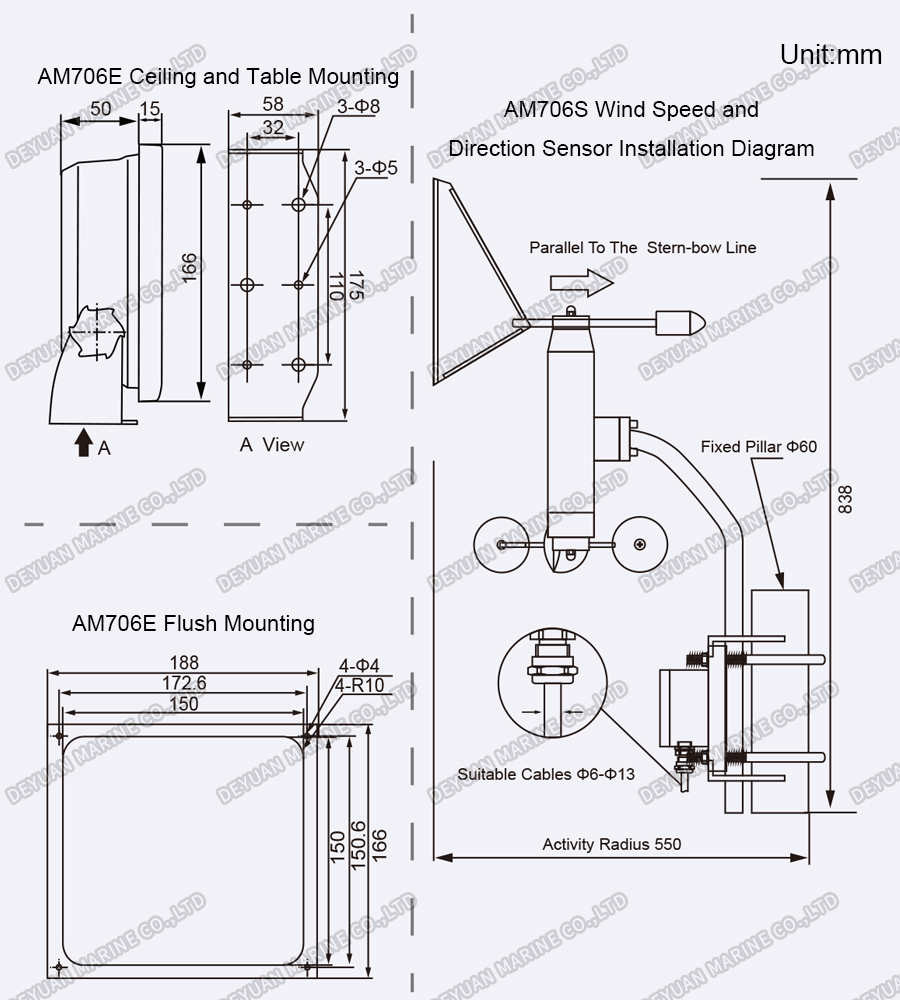

Installation dimensions
