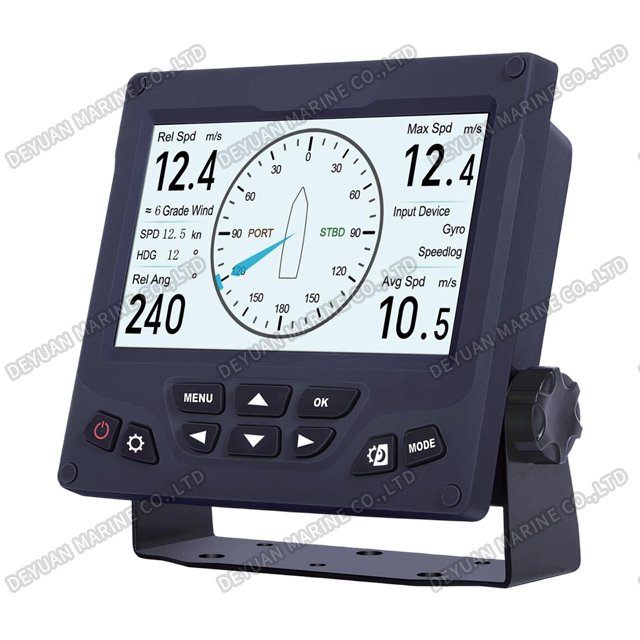

7 Inch TFT Anemometer for Chemical Tanker
Product introduction
The Marine 7-Inch TFT Anemometer, Model AM706C, is a sophisticated and integrated wind measurement system designed for vessels that require both reliable raw data and advanced calculated wind information. CCR installation 2-level alarm and printing storage,Special for liquid cargo chemical tanker,Temperature Resistant & Moisture Proof Mechanic Design,High Brightness LCD Displayer,Building upon the proven platform of the AM706 series, the "C" variant signifies its enhanced computational capability, automatically deriving True Wind data to provide a complete picture of the environmental conditions for safer navigation and operational planning.
Technical Data
| AM706 Performance parameter | |
| ltem | Specification |
| Display | 7 inch TFT 800×480 pixels |
| Power Supply | DC24V/AC100～240V |
| Wind Range | 0～359° |
| Direction Accuracy | ±1° |
| Speed Accuracy | ±5%(Min0.1 m/s) |
| Speed Range | 0～70m/s |
| Data Input | NMEA0183(RMC/HDT/VBW) |
| Data Output | NMEA0183(MWV) |
| Humidity | 10～90%Relative |
| Storage Temperature | Display:-20～+55℃ Sensor:-20～+85℃ |
| Operating Temperature | Display:-15～+55℃ Sensor:-15～+85℃ |
| Protection | Display :IP23 Sensor :IP56 Internal Alarm :IP23 External Alarm:IP56 |

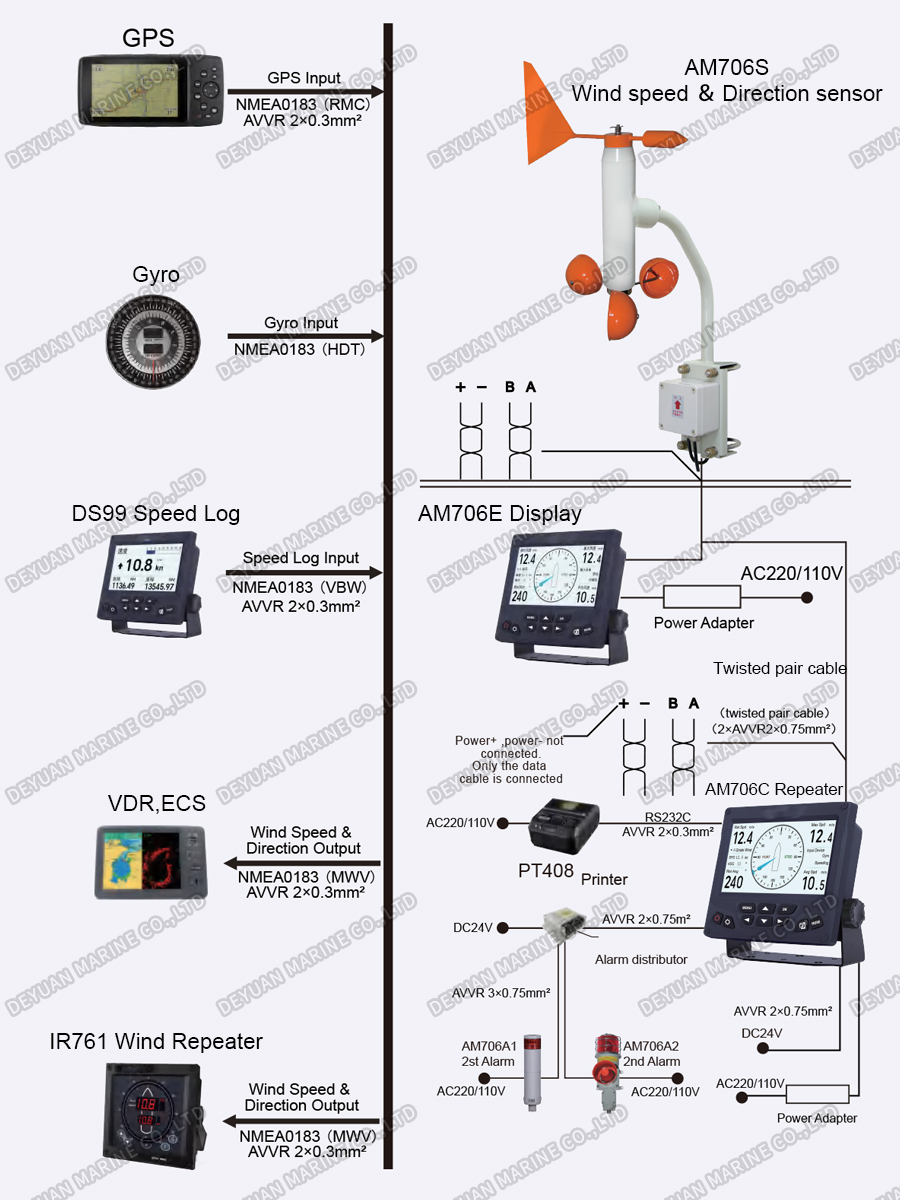

System diagram

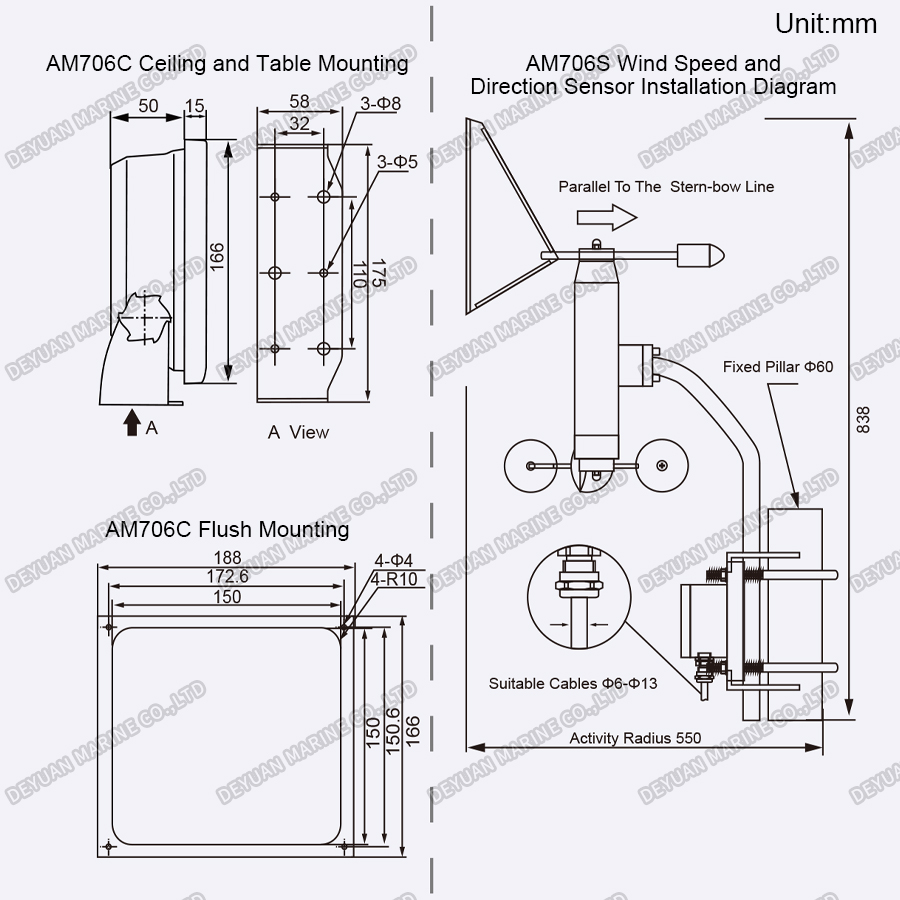

Installation dimensions
