Product Description

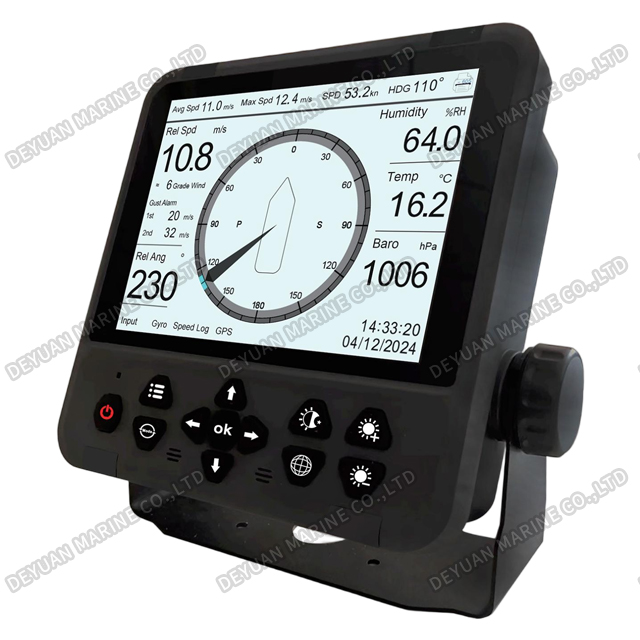

8 Inch TFT Marine Anemometer
Product introduction
The Marine 8-Inch TFT Anemometer represents a significant advancement in bridge instrumentation, designed to deliver accurate, real-time wind data through a larger, more intuitive display. All-body anti-corrosion and anti-aging materials,Waterproof,anti-salt spray design,Selection of external equipment,such as alarm,Digital & analog display.This system is engineered for commercial vessels, sailing yachts, and specialized marine operations where precise environmental awareness is critical for safe navigation, route optimization, and operational efficiency.

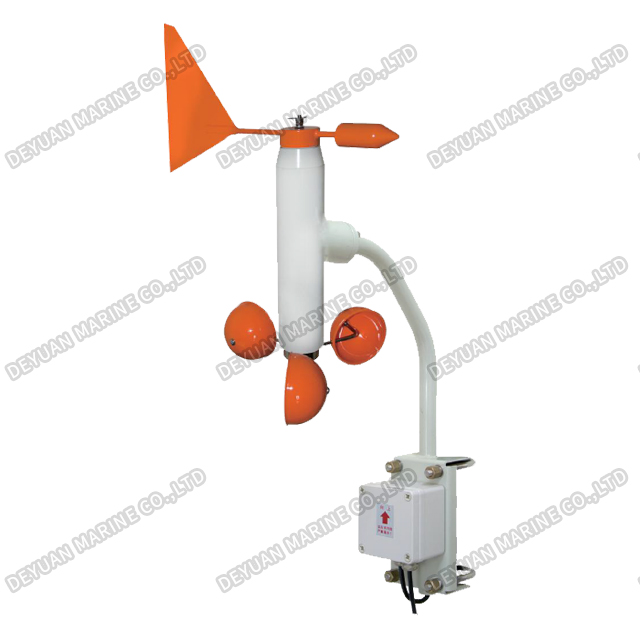

By combining a robust external sensor with a high-resolution 8-inch TFT display unit, this system provides unparalleled clarity and immediate access to both apparent and true wind information. Its design prioritizes durability in harsh marine conditions and seamless integration with modern bridge networks, making it an indispensable tool for today's mariner.
Technical Data
| AM706 Performance parameter | |
| ltem | Specification |
| Display | 8 inch TFT 800×600 pixels |
| Power Supply | DC24V/AC100～240V |
| Wind Range | 0～359° |
| Direction Accuracy | ±1° |
| Speed Accuracy | 0.1m/s |
| Speed Range | 0～70m/s |
| Startup Wind Speed | ≤1.2m/s |
| Data Input | NMEA0183(RMC/HDT/VBW) |
| Data Output | NMEA0183(MWV/MDA) |
| Humidity | 10～90% Relative |
| Storage Temperature | Display:-20～+55℃ Sensor:-20～+85℃ |
| Operating Temperature | Display:-15～+55℃ Sensor:-15～+85℃ |
| Protection | Display:IP23 Sensor:IP56 |

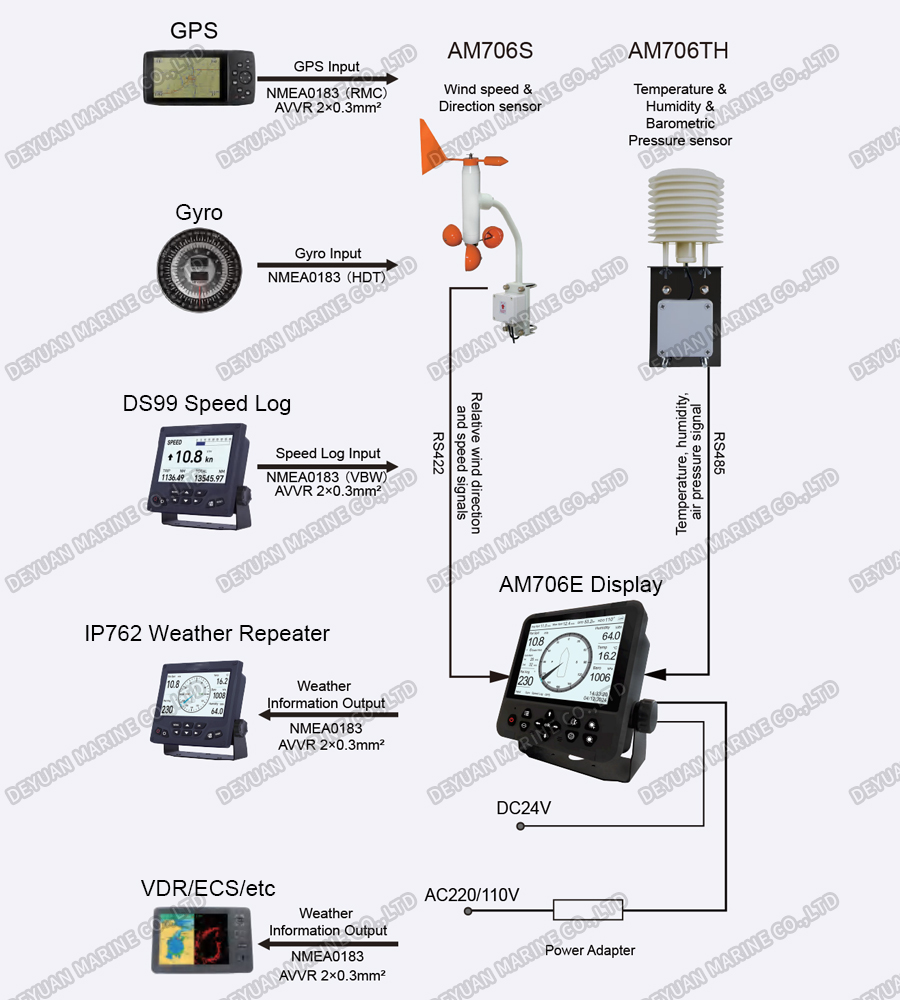

System diagram

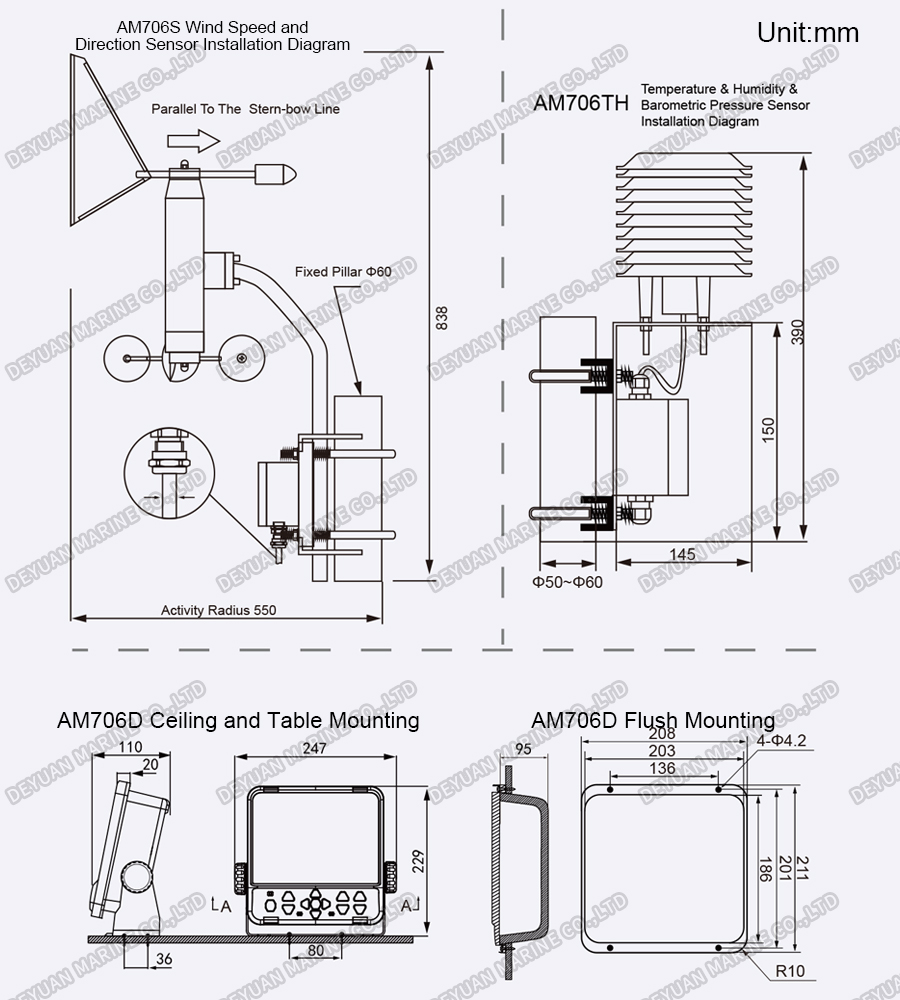

Installation dimensions
