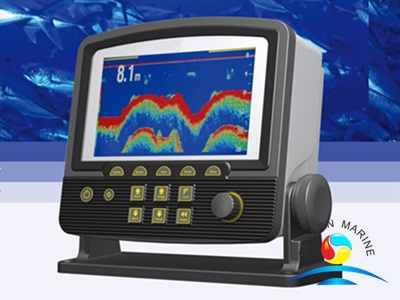

DS207 Marine 7 Inch TFT Echo Sounder For Inland River

Origin: Made in China
Model: DS207
Display LCD:7″TFT
Frequency: 200KHZ
Output Power: 300W
Size: 268WX225HX106Dmm
Delivery time: 3-15days
Packing: Export package
Brand: Deyuan Marine

Product Description

DS207 Marine 7 Inch TFT Echo Sounder For Inland River


*New fishfinder technology
*Fine fish echo analysis
*Reliable power supply mould
*Modern panel easy control
Item Specification
Display LCD 7″TFT,480x234pixels
Night Mode Black Background&Hue for Night
Frequency DS207 200k
Range DS207 200m
Auto Range Yes
Ping Rate Max10pings per second
Output Power DS207 300W
Picture Speed Stop,1/16,1/8,1/4,1/2,1/1,2/1,4/1
Time Scale On screen 30s time scale
Signal Levels 8colors signal level
Alarm Types Shallow
Alarm Beeper Buzzer(switchable),flashing
Depth Output NMEA0183(DBT,DPT)
Power supply 24VDC(19-36VDC)
Consumption <20W
Working Temperature 0 to 50℃(IEC60945)
Waterproof IPX2(IEC60529)
Storage temperature -20 to +70℃
waterproof IPX2(IEC60529)
Measurement 268WX225HX106D mm
Unit Weight 1.25kg
Protection Over voltage/current,polarity
Mounting  Desk/Ceiling/flush mounting
Options IR261 Depth repeater,transducers,AC rectifier,flush mounting kit,NMEA cable
