CPT-130D Table Model Magnetic Compass

  • Deyuan Marine

Product Description

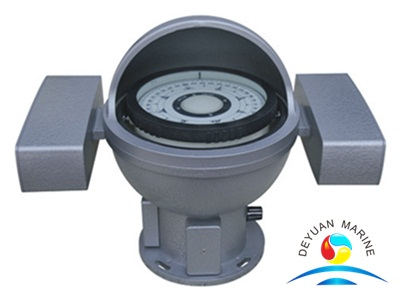

CPT-130D Table Model Magnetic Compass
CPT-130D Magnetic Compass is a sort of table model liquid magnetic compass. The compass is a magnetic compass class A and it is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A). The product has the advantages of simple structure、 complete function、 convenient correcting difference、 accurate direction、 stabilization and reliable. The magnetic compass is suitable for the steel motorized fishing boats and small steel vessels acting as steering compass.

Main technical parameters :
Project Data
  Dial Diameter   Φ130mm
  Dial graduation   0°360° 1°for each grid
  Using temperature   -20~60
  Indicating deviation     H=35μTT=20±3℃)   ≤1.5°
  Half periodH=35μTT=20±3℃)   ≥5.59 S
  Friction deviationH=35μTT=20±3℃)   ≤0.26°
  Main semicircle self heterodyne correcting energy   1°40°
  Quadrant self heterodyne correcting energy   1°
  Lighting power supply   DC 24V
  Outline Dimension   330×200×270mm
  Diameter of mounting holes   Pitchrow118   ApertureΦ6.5
 Weight   3kg
