CPT-130A Table Model Magnetic Compass

  • Deyuan Marine

Product Description

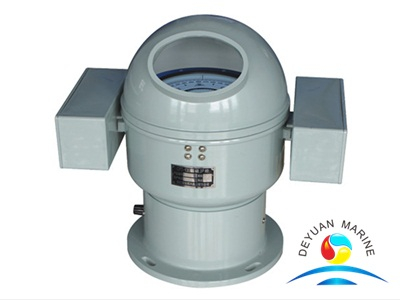

CPT-130A Table Model Magnetic Compass
CPT-130A Magnetic Compass is a sort of table model liquid magnetic compass. The compass is a magnetic compass class A and it is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A), The product has the advantages of simple structure、complete function、convenient correcting difference、accurate direction、 stabilization and reliable. The magnetic compass is suitable for the large and middle motorized fishing boats and small steel vessels acting as steering compass.

Main technical parameters :
Project Data
Dial Diameter Φ130mm
Dial graduation 360° 1°for each grid
Using temperature -25~60
Indicating deviation     H=35μTT=20±3℃) ≤1.5°
Half periodH=35μTT=20±3℃) ≥5.59 S
Friction deviationH=35μTT=20±3℃) ≤0.26°
Main semicircle self heterodyne correcting energy 45°
Quadrant self heterodyne correcting energy 0.5°
Inclining self heterodyne correcting energy 75~+75μT
Lighting power supply DC 24V
Outline Dimension 390×240×370mm
Diameter of mounting holes Pitchrow 214 ApertureΦ12
Weight 7.5kg
