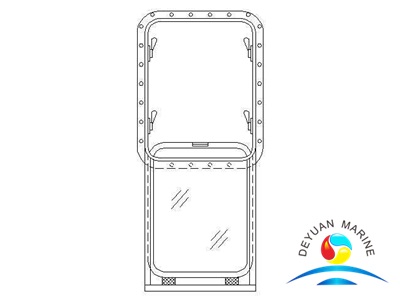

Aluminum Rectangular Lifting Window

  • DEYUAN MARINE

Product Description

Aluminum Rectangular Lifting Window
Model Nominal
size
Window frame size Cut-out size Decoration
thickness
Glass
thickness
Weight
(Kg)
Diagram
W*h W1*h1 W2*h2 H W3*h3 R S t t=6 t=8
A 300*425 358*483 420*545 896 362*487 80 User's
option
6、8 6.5 7.2
355*500 413*558 475*620 1046 417*562 7.5 8.5
400*560 458*618 520*680 1166 462*622 8.7 9.9
450*630 508*688 570*750 1306 512*692 9.8 11.3
B 560*400 618*458 680*520 846 622*462 8.7 9.9
630*450 688*508 750*570 946 692*512 9.8 11.3
710*500 768*558 830*620 1046 772*562 11.3 13.2
800*560 858*618 920*680 1166 862*622 13.2 15.6
Instruction:'S' indicates overall thickness of hull's decoration.if need to provide decoration frame,the
thickness is requested upon order.Weights in the form excluding the decorate frame.
Marked sample:Model A aluminium rectangular lifting window which nominal size 400*560.
Marked as:ALUMINIUM RECTANGULAR LIFTING WINDOW A400*560 CB/T 3045-1999
