Model 226 Aluminum Sliding Window

  • DEYUAN MARINE

Product Description

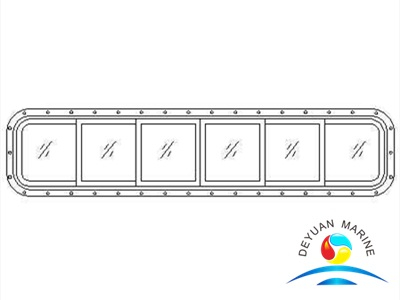

Model 226 Aluminum Sliding Window
Model Clear
size
Single-leaf
clear size
Window frame size Cut-out size Decoration
thickness
Weight
(Kg)
W*h W'*H' W1*h1 W2*h2 W3*h3 R S t=6
QL-226R

QL-226F
3515*630 560*630 2975*700 3027*752 2983*708 80 User's
option
39.7
3935*630 630*630 3325*700 3377*752 3333*708 44.1
4415*630 710*630 3725*700 3777*752 3733*708 48.9
3515*710 560*710 2975*780 3027*832 2983*788 43.2
3935*710 630*710 3325*780 3377*832 3333*788 48.3
4415*710 710*710 3725*780 3777*832 3733*788 53.7
Aluminum sliding window opening direction as rule CB/T 3746-1996.This series be suitable for inland
vessels.

Marked sample:Aluminum six-leaves sliding window which clear size 3935-630,with round-corner R80.
Marked as:SLIDING WINDOW 3935*630 QL-226R
